Oil Pump: Installation

WARNING: This page is about a different variant/trim than selected.

1.

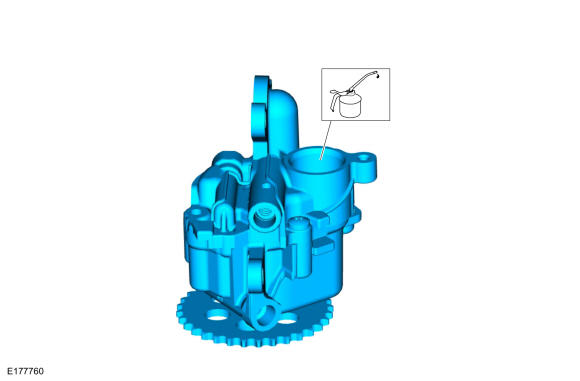

NOTE: Do this step only if the oil pump has been replaced.
- Fill the inlet with clean engine oil until it is brimmed.
  Material: Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil / XO-5W40-5QSD (WSS-M2C171-E)
- With the oil pump still vertical, rotate the oil pump sprocket 10 times in either direction.
- Empty the excess oil from the oil pump.

GFD144354

Courtesy of FORD MOTOR COMPANY

2.

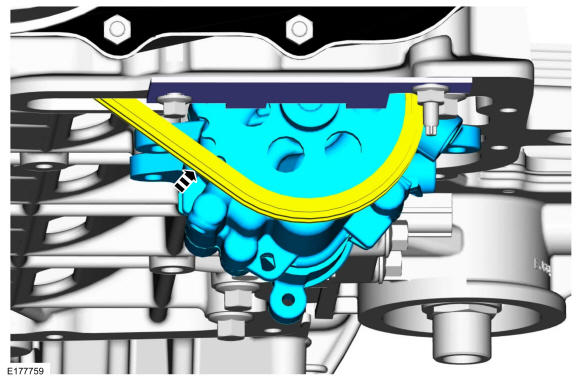

Position back the oil pump chain and install the oil pump.

GFD144355

Courtesy of FORD MOTOR COMPANY

3.

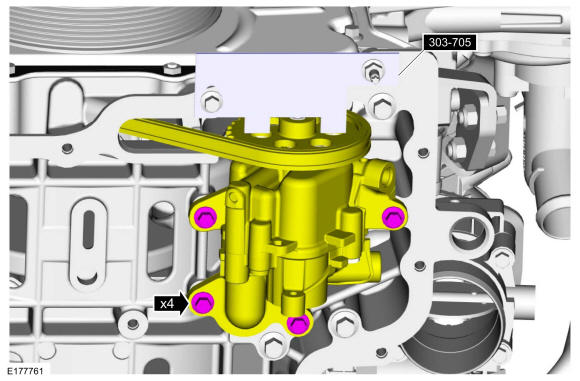

NOTE: Only tighten the bolts finger tight at this stage.

NOTE: The profile of the special tool must be in contact with the oil pump sprocket.

Install the bolts for the oil pump and align to the special tool.

GFD144352

Courtesy of FORD MOTOR COMPANY

4.

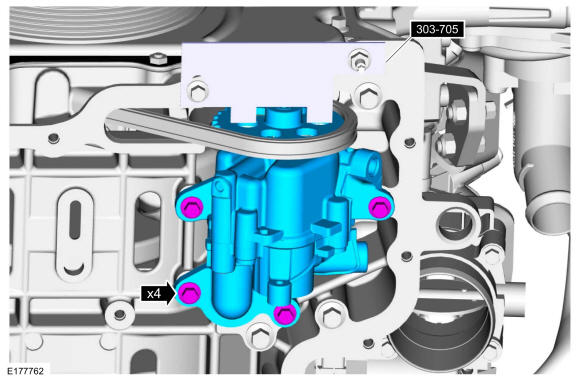

Tighten the bolts for the oil pump.
Torque: 89 lb.in (10 Nm)

GFD144356

Courtesy of FORD MOTOR COMPANY

5.

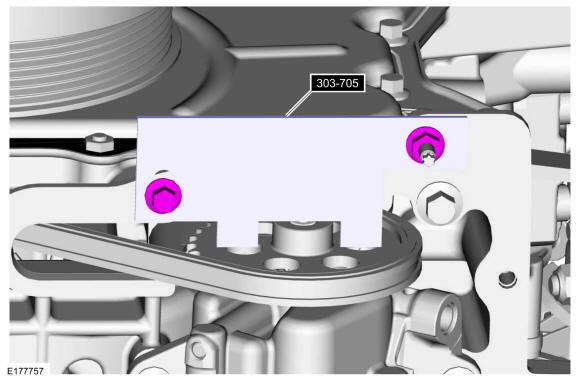

Remove Special Service Tool: 303-705 Aligner, Oil Pump.

GFD144357

Courtesy of FORD MOTOR COMPANY

6.

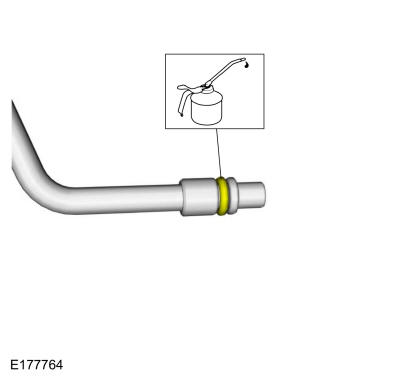

Lubricate the O-ring with clean engine oil.
Material: Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil / XO-5W40-5QSD (WSS-M2C171-E)

GFD144358

Courtesy of FORD MOTOR COMPANY

7.

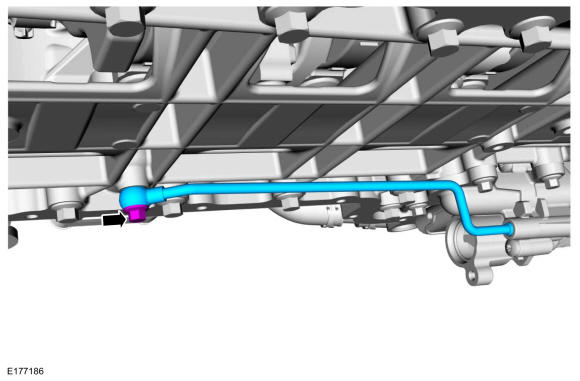

Install the oil feedback pipe.
Torque: 115 lb.in (13 Nm)

GFD144349

Courtesy of FORD MOTOR COMPANY

8.

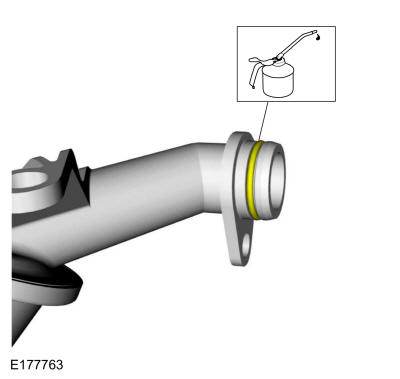

Lubricate the O-ring with clean engine oil.
Material: Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil / XO-5W40-5QSD (WSS-M2C171-E)

GFD144359

Courtesy of FORD MOTOR COMPANY

9.

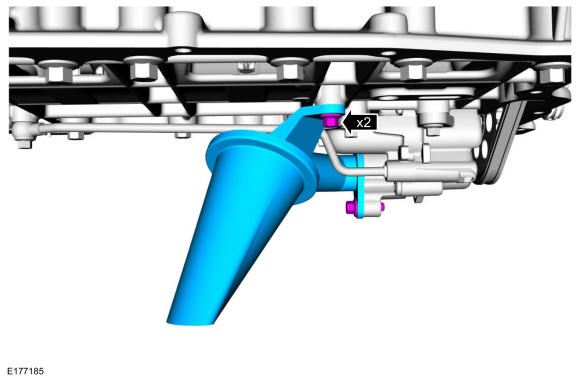

Install the oil pickup tube and the bolts.
Torque: 89 lb.in (10 Nm)

GFD144347

Courtesy of FORD MOTOR COMPANY

10.

Install the oil pan. Refer to: Oil Pan .
