Oil Pan: Installation

WARNING: This page is about a different variant/trim than selected.

1.

NOTE: If the oil pan is not secured within 5 minutes of sealant application, the sealant must be removed and the sealing area cleaned with metal surface prep. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

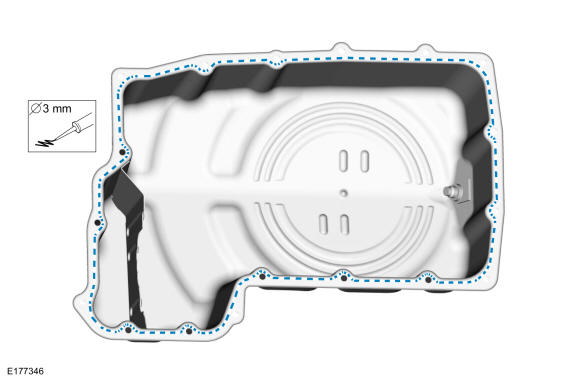

Apply a 3 mm bead of silicone sealant to the new oil pan.

Material: Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

GFD144342

Courtesy of FORD MOTOR COMPANY

2.

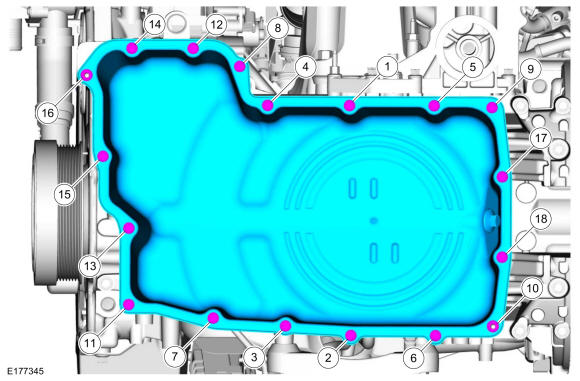

Install the oil pan, nuts and bolts. Tighten in the sequence shown in illustration in 2 stages.
Torque:

Stage 1: 62 lb.in (7 Nm)

Stage 2: 124 lb.in (14 Nm)

Fig 1: Oil Pan Tightening Sequence

GFD144343

Courtesy of FORD MOTOR COMPANY

3.

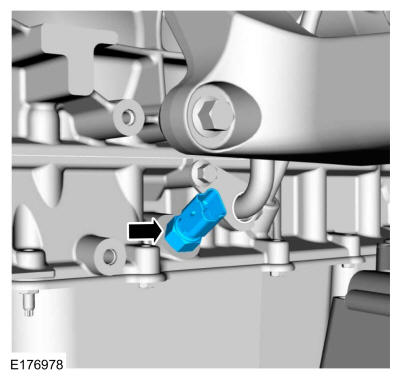

Install the oil level sensor.
Torque: 20 lb.ft (27 Nm)

GFD144339

Courtesy of FORD MOTOR COMPANY

4.

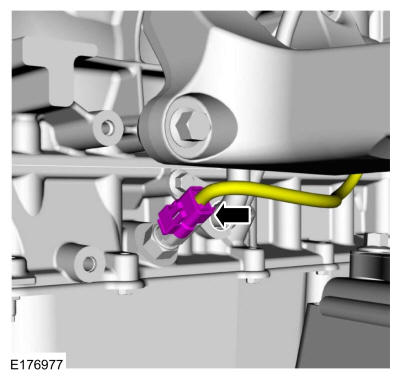

Connect the oil level sensor electrical connector.

GFD144338

Courtesy of FORD MOTOR COMPANY

5.

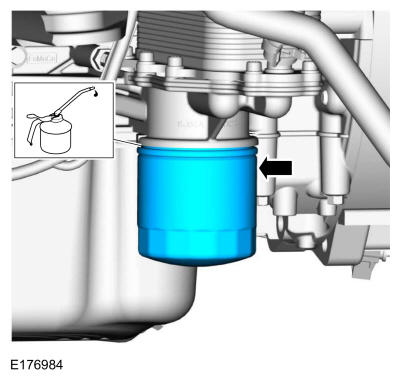

Lubricate with clean engine oil and install the oil filter.
Material: Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil / XO-5W40-5QSD (WSS-M2C171-E)

GFD144344

Courtesy of FORD MOTOR COMPANY

6.

Install the CAC. Refer to: Charge Air Cooler (CAC) .

7.

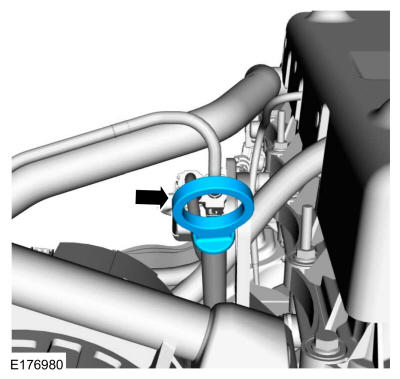

Install the oil level indicator.

GFD144335

Courtesy of FORD MOTOR COMPANY

8.

Fill the engine with the clean engine oil.
Material: Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil / XO-5W40-5QSD (WSS-M2C171-E)
