Oil Cooler: Removal
WARNING: This page is about a different variant/trim than selected.
- 3.
Remove the nut and position aside the bracket.
 Courtesy of FORD MOTOR COMPANY
|
- 4.
Disconnect the electrical connector and the wire retainer.
 Courtesy of FORD MOTOR COMPANY
|
- 5.
If necessary, remove the oil pressure switch.
 Courtesy of FORD MOTOR COMPANY
|
- 6.

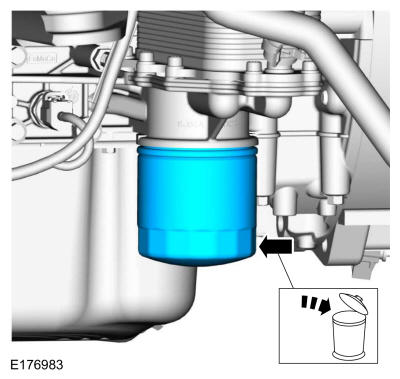

Remove and discard the oil filter.
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
- 8.

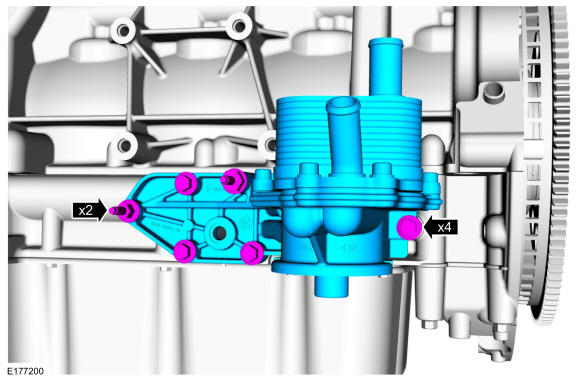

Remove the bolts, stud bolts and the oil cooler.
 Courtesy of FORD MOTOR COMPANY
|
- 9.

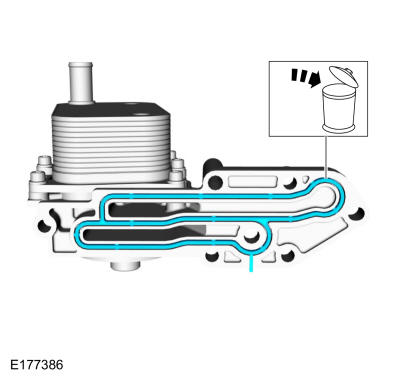

Remove and discard the oil cooler gasket.
 Courtesy of FORD MOTOR COMPANY
|
