Oil Cooler: Installation
WARNING: This page is about a different variant/trim than selected.

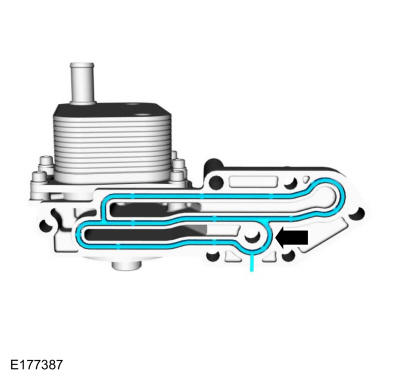

- 1.NOTE: Make sure that the mating surfaces are clean and free of foreign materials.
Install the new oil cooler gasket.
- 2.

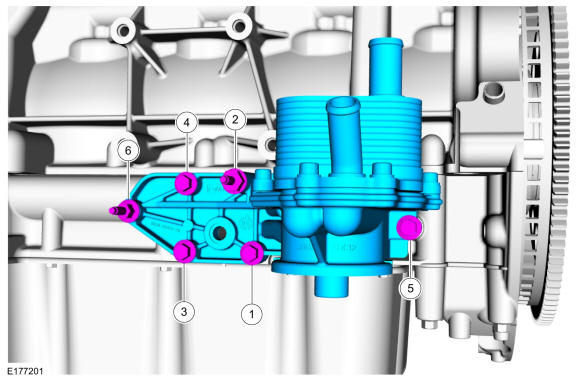

Install the oil cooler, stud bolts and bolts.Torque:
Stage 1: 44 lb.in (5 Nm)
Stage 2: 17 lb.ft (23 Nm)
Stage 3: 17 lb.ft (23 Nm)
- 3.

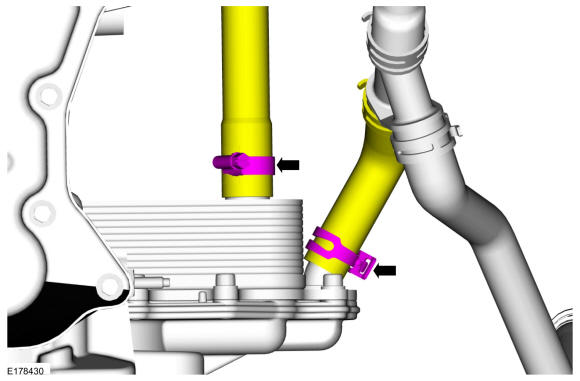

Connect the coolant hoses.Use the General Equipment: Hose Clamp Remover/Installer
Torque: 35 lb.in (4 Nm)
- 4.

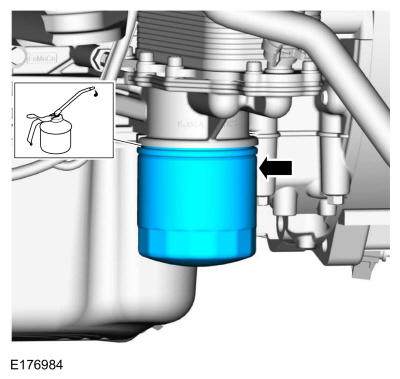

Lubricate with clean engine oil and install the oil filter.Material: Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil / XO-5W40-5QSD (WSS-M2C171-E)
- 5.NOTE: If the oil pressure switch is to be reused, apply thread sealant.

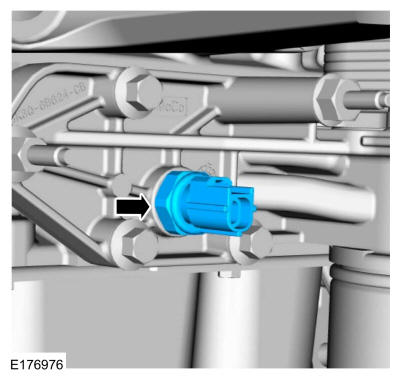

If necessary, install the oil pressure switch.
Material: Motorcraft® Thread Sealant with PTFE / TA-24-B (WSK-M2G350-A2)
Torque: 177 lb.in (20 Nm)
- 8.
Fill the engine cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
