Exhaust Manifold: Removal
WARNING: This page is about a different variant/trim than selected.
- 1.
Remove the turbocharger. Refer to: Turbocharger .
- 2.
Remove the generator. Refer to: Generator - 3.2L Duratorq-TDCi (148kW/200PS) - Puma .
- 11.NOTE: Only use hand tools when loosening or tightening the exhaust manifold studs or damage to the stud torx head or cylinder head threads can occur.

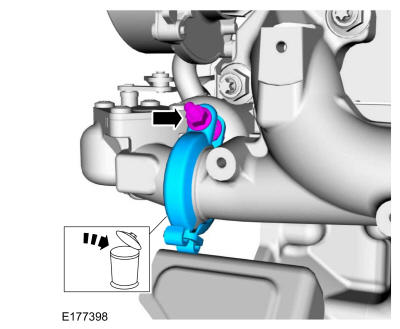

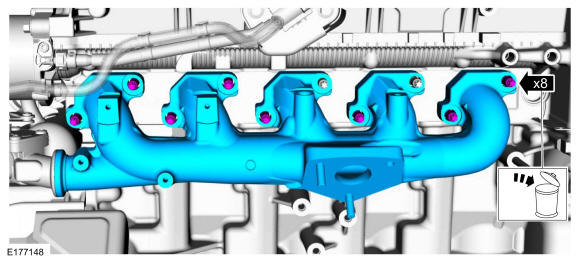

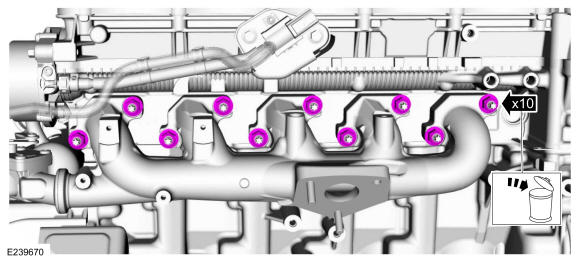

Remove and discard the exhaust manifold studs. Remove the exhaust manifold and discard the EGR cooler gasket.
- 12.NOTE: Only use hand tools when loosening or tightening the exhaust manifold studs or damage to the stud torx head or cylinder head threads can occur.

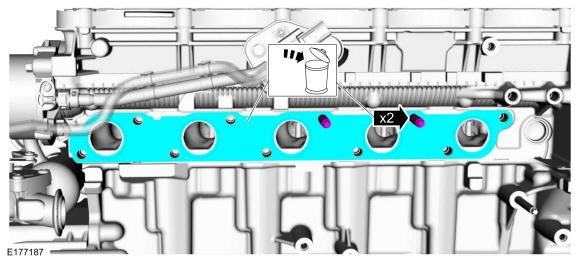

Remove and discard the exhaust manifold gasket. Remove and discard the exhaust manifold studs.
- 13.NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.NOTE: Use compressed air to remove any foreign material in the stud bolt holes.

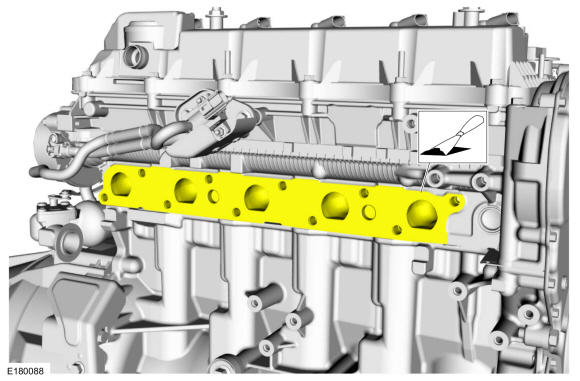

Clean the exhaust manifold mounting surface.
Use the General Equipment: Plastic Scraper
- 14.
Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .
