Engine Mount RH: Removal

WARNING: This page is about a different variant/trim than selected.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

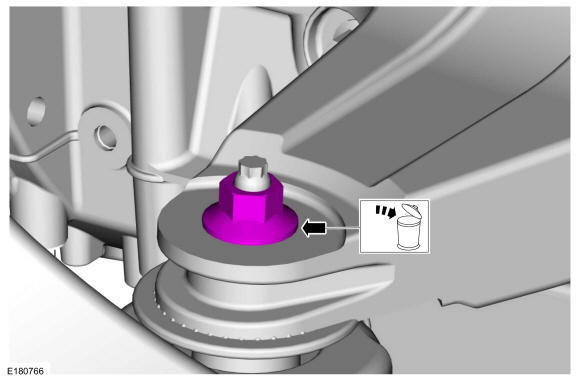

3.

Remove and discard the engine mount nut.

GFD144275

Courtesy of FORD MOTOR COMPANY

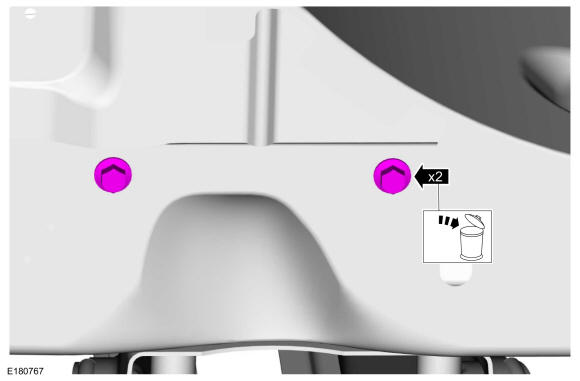

4.

Remove and discard the engine crossmember bolts.

GFD144276

Courtesy of FORD MOTOR COMPANY

5.

Remove the front lower air deflector.

GFD142623

Courtesy of FORD MOTOR COMPANY

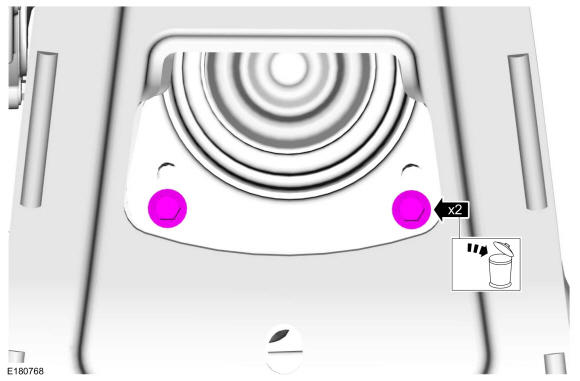

6.

Remove and discard the engine mount bolts.

GFD144277

Courtesy of FORD MOTOR COMPANY

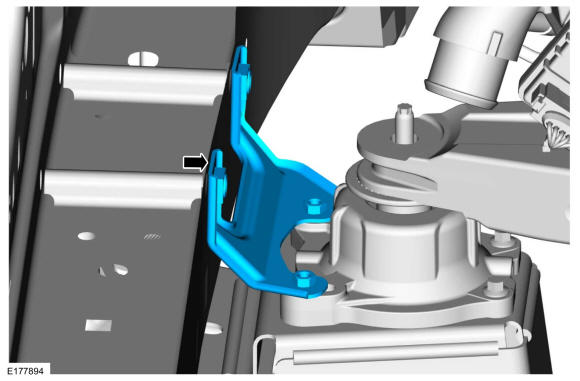

7.

Remove the engine crossmember bracket.

GFD144278

Courtesy of FORD MOTOR COMPANY

8.

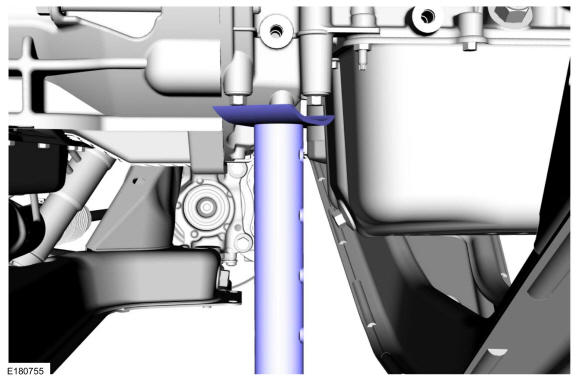

NOTE: Position a wooden block between the oil pan and the crossmember for added safety.

Position the stand on the RH back corner of the cylinder block.

Use the General Equipment: Vehicle/Axle Stands

Use the General Equipment: Wooden Block

GFD144279

Courtesy of FORD MOTOR COMPANY

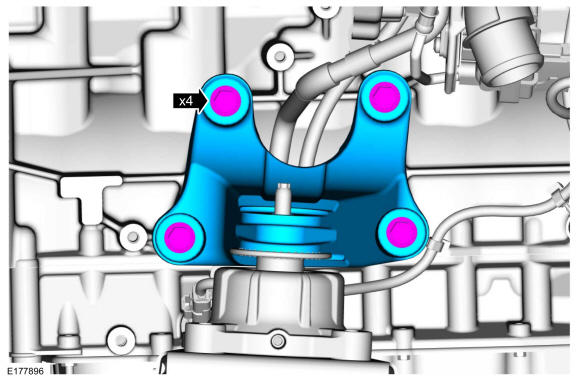

9.

Remove the bolts and the bracket.

GFD144280

Courtesy of FORD MOTOR COMPANY

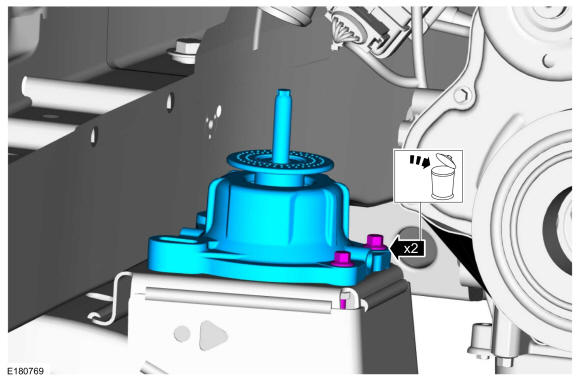

10.

Remove the bolts and the engine mount. Discard the bolts.

GFD144281

Courtesy of FORD MOTOR COMPANY
