Engine Mount RH: Installation
WARNING: This page is about a different variant/trim than selected.
- 1.

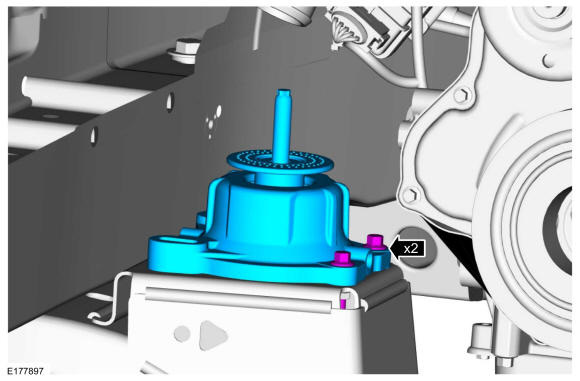

Install the engine mount and the new bolts.Torque: 22 lb.ft (30 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 2.

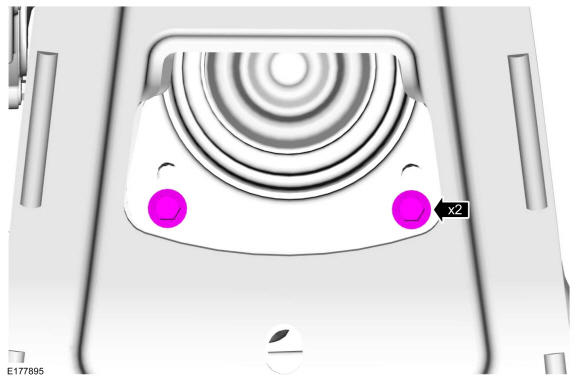

Install the bracket and the bolts.Torque: 46 lb.ft (63 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 3.
NOTE:
Remove the wooden block between the oil pan and the crossmember.
Remove the stand.
Use the General Equipment: Vehicle/Axle Stands
Use the General Equipment: Wooden Block
 Courtesy of FORD MOTOR COMPANY
|
- 4.
Position the engine crossmember bracket.
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
- 6.

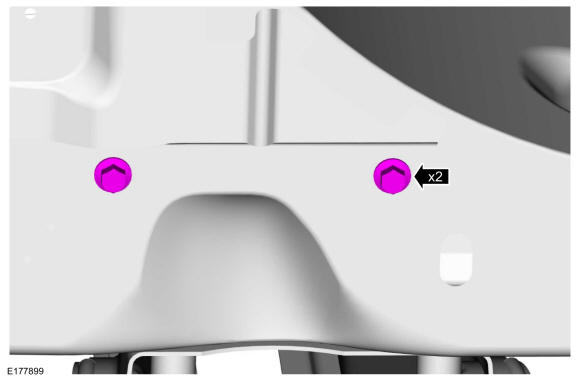

Install the new engine crossmember bolts.Torque: 46 lb.ft (63 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 7.
Tighten the engine mount bolts.Torque: 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY
|
- 8.
Install the front lower air deflector.Torque:
1: 44 lb.in (5 Nm)
2: 97 lb.in (11 Nm)
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
