Engine Mount LH: Removal
WARNING: This page is about a different variant/trim than selected.
- 2.

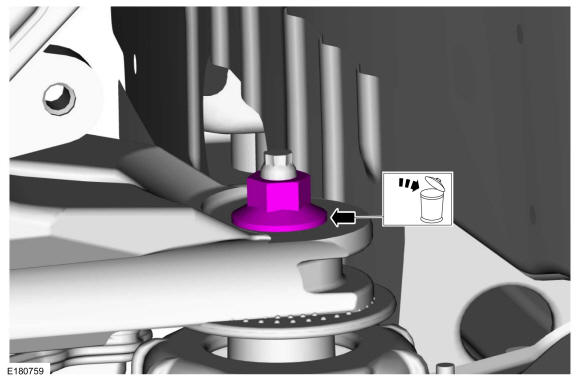

Remove and discard the engine mount nut.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

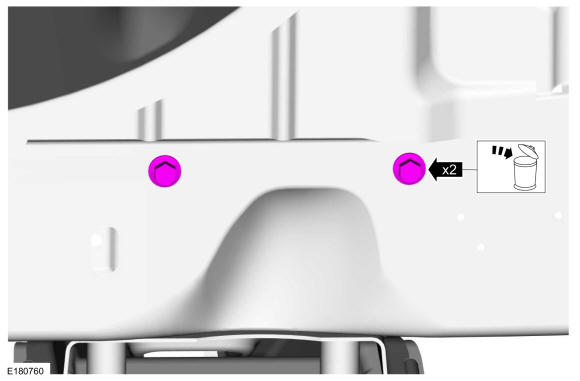

Remove and discard the engine crossmember bolts.
 Courtesy of FORD MOTOR COMPANY
|
- 4.
Remove the front lower air deflector.
 Courtesy of FORD MOTOR COMPANY
|
- 5.

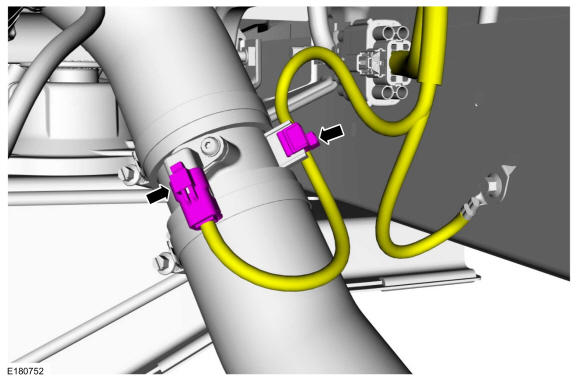

Disconnect the electrical connector and wire retainer.
 Courtesy of FORD MOTOR COMPANY
|
- 6.

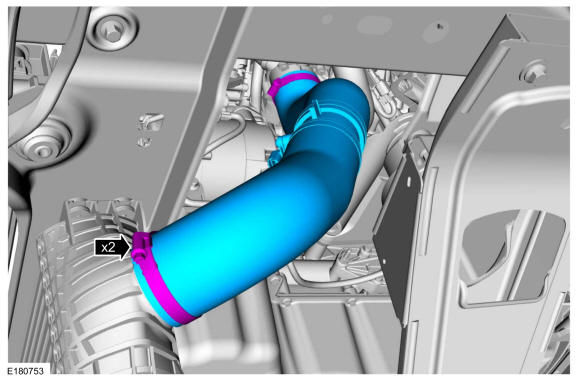

Loosen the clamps and remove the CAC pipe.
 Courtesy of FORD MOTOR COMPANY
|
- 7.

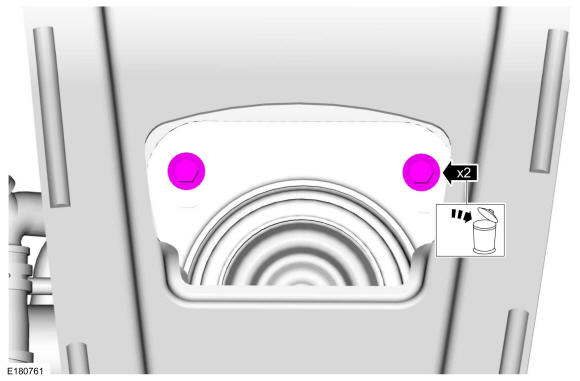

Remove and discard the engine mount bolts.
 Courtesy of FORD MOTOR COMPANY
|
- 8.

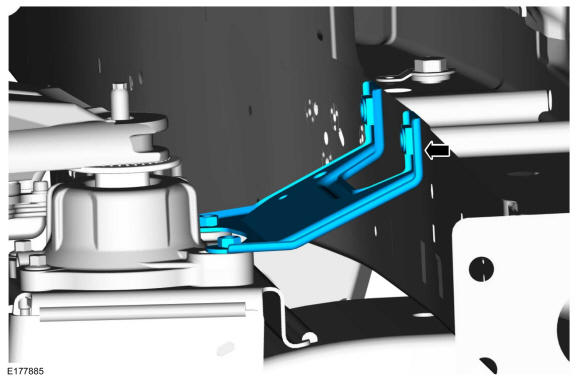

Remove the engine crossmember bracket.
 Courtesy of FORD MOTOR COMPANY
|
- 9.
NOTE:

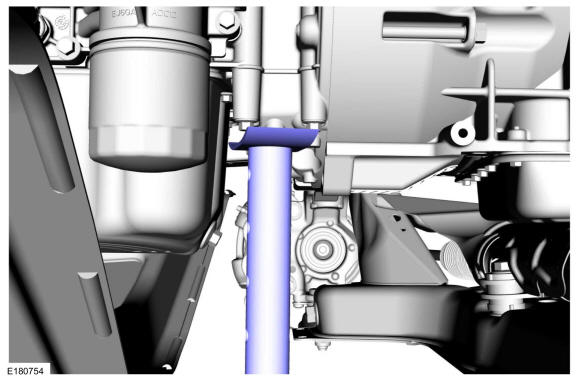

Position a wooden block between the oil pan and the crossmember for added safety.
Position the stand on the LH back corner of the cylinder block.
Use the General Equipment: Vehicle/Axle Stands
Use the General Equipment: Wooden Block
 Courtesy of FORD MOTOR COMPANY
|
- 10.

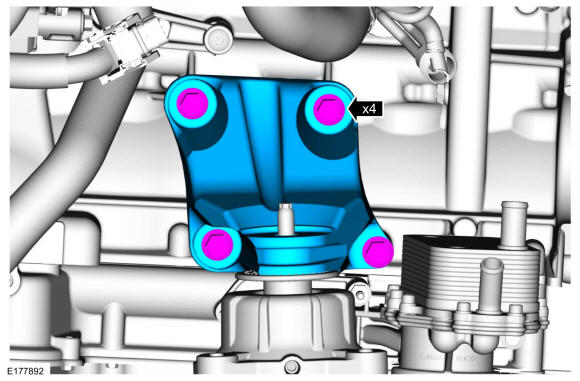

Remove the bolts and the bracket.
 Courtesy of FORD MOTOR COMPANY
|
- 11.

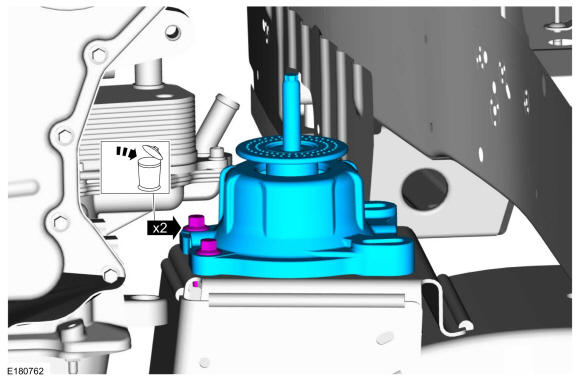

Remove the bolts and the engine mount. Discard the bolts.
 Courtesy of FORD MOTOR COMPANY
|
