Disassembly And Assembly Of Subassemblies: Piston: Disassembly

WARNING: This page is about a different variant/trim than selected.

NOTE: If the piston and connecting rod are to be reinstalled, they must be assembled in the same orientation. Mark the piston orientation to the connecting rod for reassembly.

1.

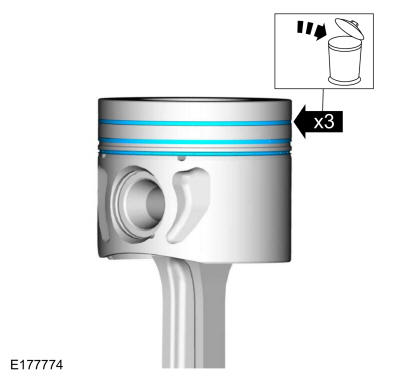

Remove and discard the piston rings.

Courtesy of FORD MOTOR COMPANY

2.

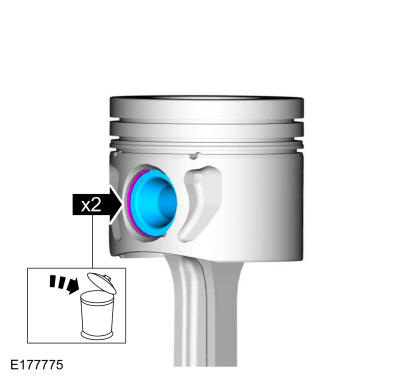

Remove and discard the piston pin retainers. Remove the piston pin.

Courtesy of FORD MOTOR COMPANY

3.

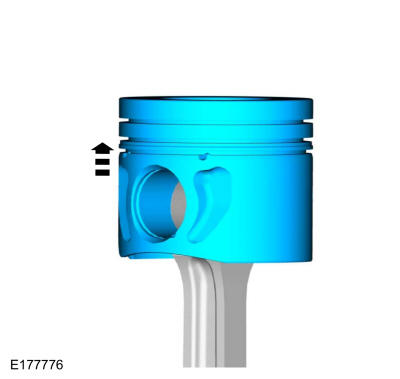

Separate the piston from the connecting rod. Clean and inspect the piston. Refer to: Piston Inspection .

Courtesy of FORD MOTOR COMPANY
