Disassembly And Assembly Of Subassemblies: Piston: Assembly
WARNING: This page is about a different variant/trim than selected.

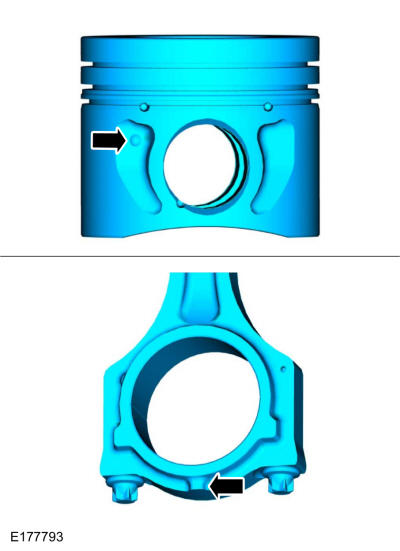

- 1.NOTE: Align the piston-to-connnecting rod orientation marks made during disassembly.
Align the front of the piston and connecting rod. Assembly the piston and the connecting rod.
- 2.

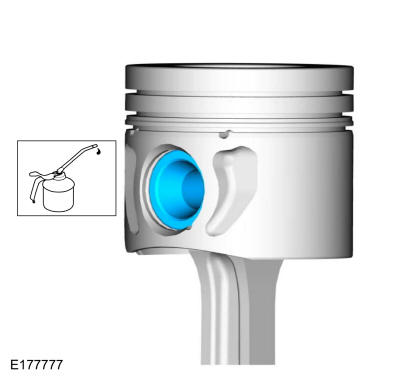

Lubricate with clean engine oil and install the piston pin.Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSD (WSS-M2C171-E)

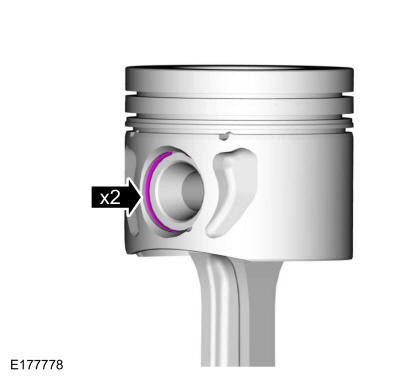

- 4.NOTE: The rings are to be fitted with the paint mark to the left of the piston ring gap.NOTE: The upper and lower compression ring gaps are the be installed 180 degrees apart.NOTE: The oil control ring position is not controlled.

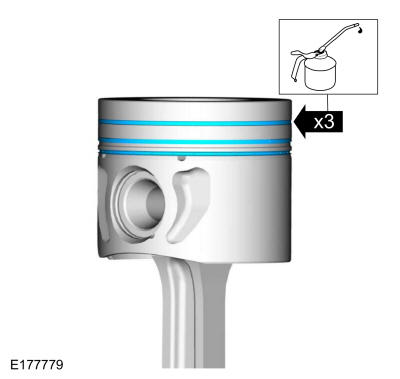

Lubricate with clean engine oil and install the piston rings.
Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSD (WSS-M2C171-E)
