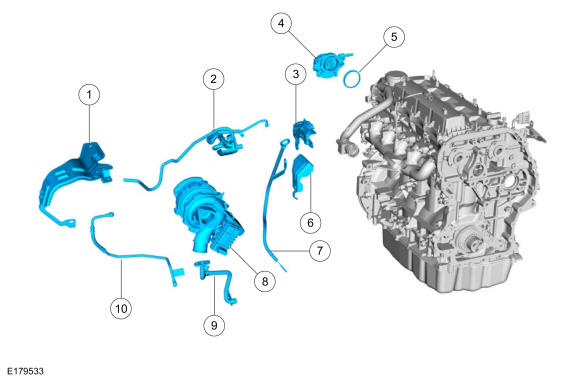

Exploded View Of Turbocharger and Vacuum Pump
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9A397 | Turbocharger heat shield |
| 2 | 9S468 | Emission system control hose and bracket assembly |
| 3 | 9A462 | Heat shield |
| 4 | 2A451 | Vacuum pump |
| 5 | 2A454 | Vacuum pump seal assembly |
| 6 | 6D310 | CKP (crankshaft position) sensor shield |
| 7 | 6750 | Oil level indicator assembly |
| 8 | 6K682 | Turbocharger assembly |
| 9 | 6K677 | Oil return tube |
| 10 | 6K679 | Oil supply pipe |
