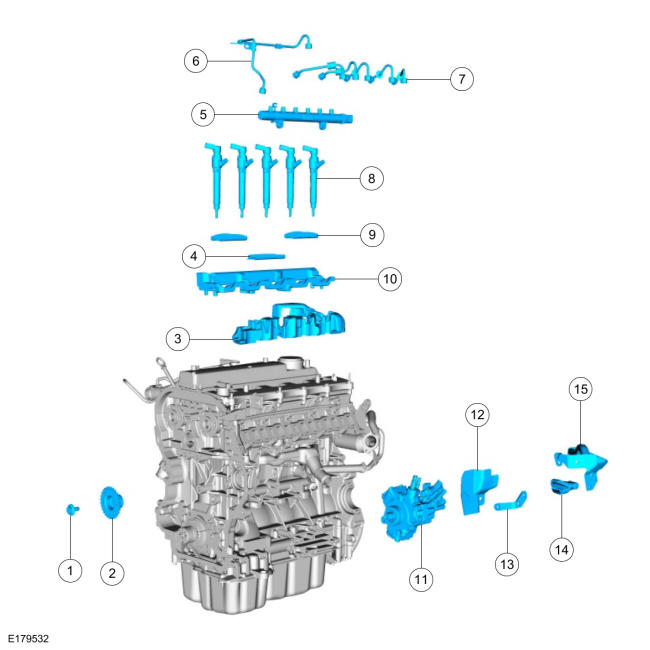

Exploded View Of Fuel System
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9362 | Fuel injection pump bolt |
| 2 | 9P919 | Fuel injection pump sprocket |
| 3 | 9U550 | NVH (noise, vibration and harshness) padding |
| 4 | 9C334 | Fuel injector hold down clamp |
| 5 | 9D280 | Fuel supply manifold assembly |
| 6 | 9J285 | Fuel supply tube |
| 7 | 9C993 | Fuel supply tube (5 required) |
| 8 | 9F563 | Fuel injector (5 required) |
| 9 | 9C334 | Fuel injector hold down clamp (2 required) |
| 10 | 9U550 | NVH padding |
| 11 | 9A543 | Fuel injection pump assembly |
| 12 | 9A398 | Fuel injection pump bracket |
| 13 | 9A398 | Fuel injection pump bracket |
| 14 | 9B552 | Fuel injection pump bracket |
| 15 | 9A398 | Fuel injection pump bracket |
