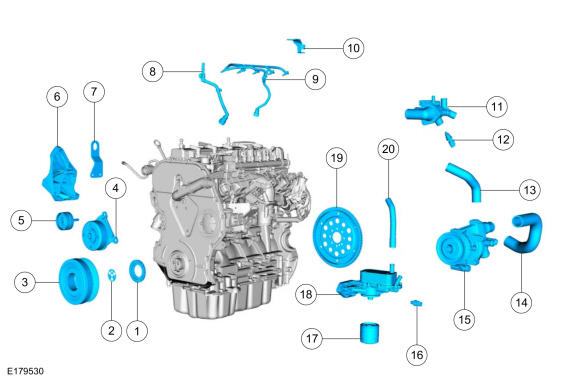

Exploded View Of FEAD, Crankshaft Pulley and Flexplate
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6700 | Front crankshaft seal |
| 2 | 6378 | Crankshaft washer |
| 3 | 6B319 | Crankshaft pulley |
| 4 | 19A216 | Accessory drive idler assembly |
| 5 | 6A228 | Idler puller assembly |
| 6 | 10239 | Alternator bracket |
| 7 | 17A084 | Engine lifting bracket |
| 8 | 9J280 | Fuel injection pump supply tube |
| 9 | 9K022 | Fuel injection pump return tube assembly |
| 10 | 9D319 | Fuel return tube bracket |
| 11 | 8A586 | Thermostat assembly |
| 12 | 12A648 | ECT (engine coolant temperature) sensor |
| 13 | 8A582 | Coolant by-pass hose |
| 14 | 8A544 | Coolant pump-to-engine connecting hose |
| 15 | 8501 | Coolant pump |
| 16 | 9278 | Oil pressure switch |
| 17 | 6731 | Oil filter |
| 18 | 6B624 | Oil cooler assembly |
| 19 | 6375 | Flexplate |
| 20 | 6748 | Oil cooler hose |
