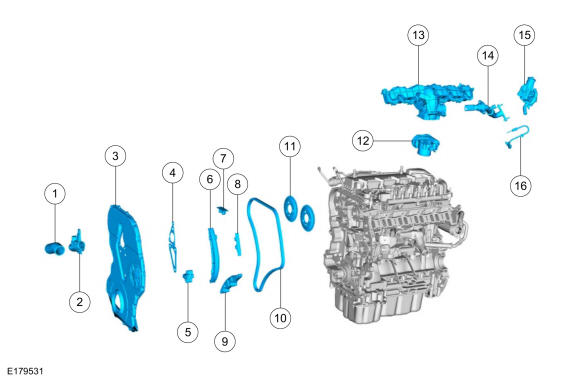

Exploded View Of Engine Front Cover, Timing Chain and Intake Manifold
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 8A595 | Coolant hose |
| 2 | 8592 | Coolant outlet connection |
| 3 | 6019 | Engine front cover |
| 4 | 9F598 | Engine front cover gasket |
| 5 | 6K261 | Timing chain tensioner |
| 6 | 6K254 | Timing chain tensioner arm |
| 7 | 6M256 | Timing chain guide |
| 8 | 6M256 | Timing chain guide |
| 9 | 6M256 | Timing chain guide |
| 10 | 6268 | Timing chain |
| 11 | 6256 | Camshaft sprocket (2 required) |
| 12 | 9E926 | Throttle body |
| 13 | 9424 | Intake manifold |
| 14 | 9E470 | Mixer tube |
| 15 | 9D470 | EGR (exhaust gas recirculation) valve |
| 16 | 12B591 | EGRT (exhaust gas recirculation temperature) sensor 12 |
