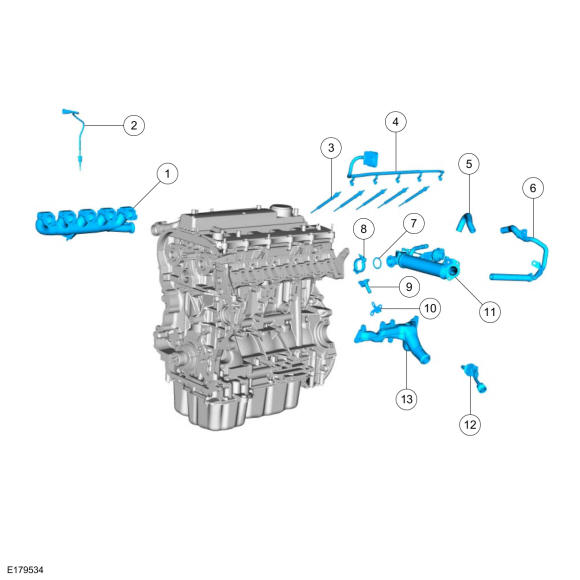

Exploded View Of EGR Cooler and Glow Plugs
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9430 | Exhaust manifold |
| 2 | 5J213 | EGRT sensor 11 |
| 3 | 11A604 | Glow plug |
| 4 | 6M091 | Glow plug wire harness |
| 5 | 9F476 | Coolant hose |
| 6 | 9Y438 | EGR cooler hose assembly |
| 7 | 9H454 | EGR cooler gasket |
| 8 | 9F481 | EGR cooler clamp |
| 9 | 6C315 | CKP sensor |
| 10 | 6023 | CKP sensor bracket |
| 11 | 9F464 | EGR cooler |
| 12 | 6A051 | Block heater |
| 13 | 8K520 | Coolant manifold assembly |
