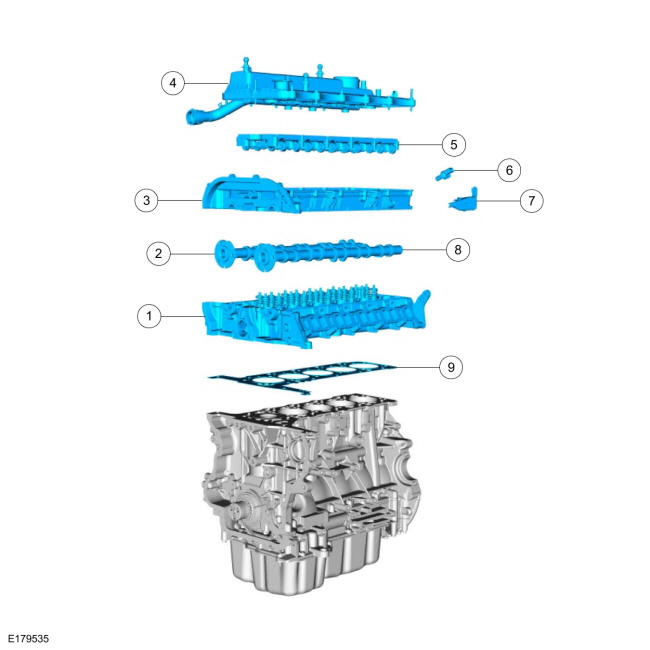

Exploded View Of Cylinder Head and Valve Cover
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Part Number |
Description |
| 1 |
6049 |
Cylinder head |
| 2 |
6250 |
Exhaust camshaft |
| 3 |
- |
Upper cylinder head (part of 6049) |
| 4 |
6K271 |
Valve cover |
| 5 |
6K551 |
Valve rocker arm housing |
| 6 |
12K073 |
CMP (camshaft position) sensor |
| 7 |
8A588 |
Thermostat bracket |
| 8 |
6250 |
Intake camshaft |
| 9 |
6051 |
Cylinder head gasket |
