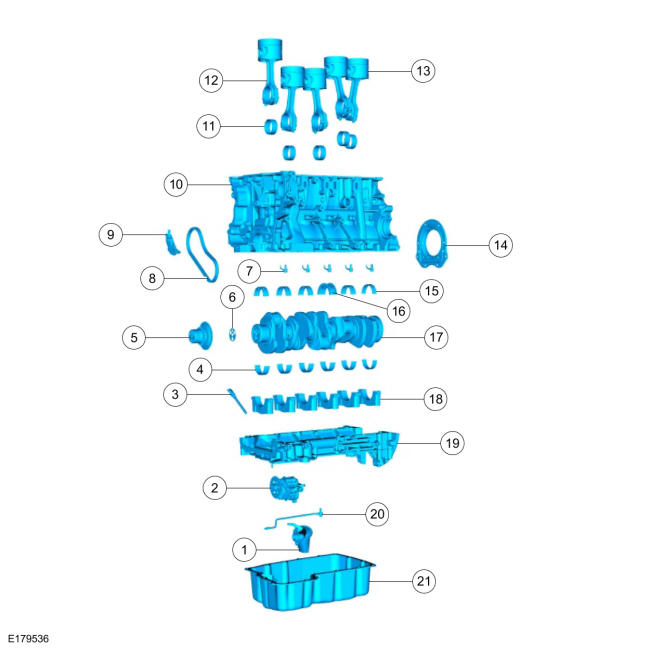

Exploded View Of Crankshaft, Cylinder Block and Pistons
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6615 | Oil pickup tube |
| 2 | 6600 | Oil pump |
| 3 | 6C624 | Oil level sensor |
| 4 | 6333 | Lower main bearings (6 required) |
| 5 | 6306 | Crankshaft sprocket |
| 6 | 6378 | Crankshaft sprocket washer |
| 7 | 6K868 | Piston oil cooler (5 required) |
| 8 | 6A895 | Oil pump chain |
| 9 | 6L266 | Oil pump drive tensioner |
| 10 | 6010 | Cylinder block assembly |
| 11 | 6211 | Connecting rod bearing (5 required) |
| 12 | 6200 | Connecting rod assembly (5 required) |
| 13 | 6105 | Piston assembly (5 required) |
| 14 | 6701 | Crankshaft rear seal |
| 15 | 6333 | Upper main bearings (4 required) |
| 16 | 6337 | Upper main bearing thrust washer |
| 17 | 6303 | Crankshaft assembly |
| 18 | - | Main bearing caps (part of 6010) 6 required) |
| 19 | 6U004 | Ladderframe |
| 20 | 6L630 | Oil feedback pipe |
| 21 | 6675 | Oil pan assembly |
