Particulate Matter Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

1.

To install, reverse the removal procedure.

2.

NOTE: If reusing the original sensor, Bostik Never-Seez Regular Grade (nickel free) antiseize thread-lube needs to be applied. Take care not to get any lube below the flange of the probe.

NOTE: Use of anti-seize with nickel could contaminate the sensor.

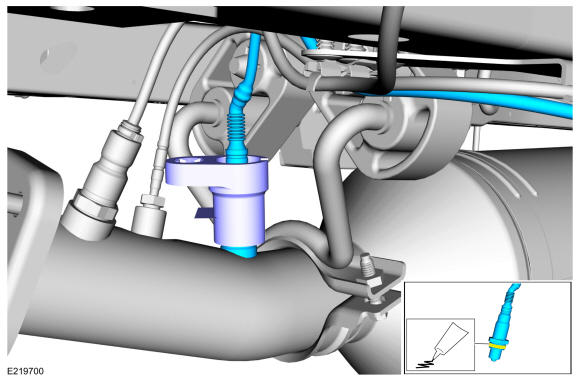

Install Particulate Matter module and sensor assembly.

Material: Bostik Never-Seez Regular Grade (nickel free) Anti-Seize and Lubricating Compound

Torque: 35 lb.ft (48 Nm)

GFD145267

Courtesy of FORD MOTOR COMPANY
