Nitrogen Oxides (NOx) Sensor Module 12: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 2.

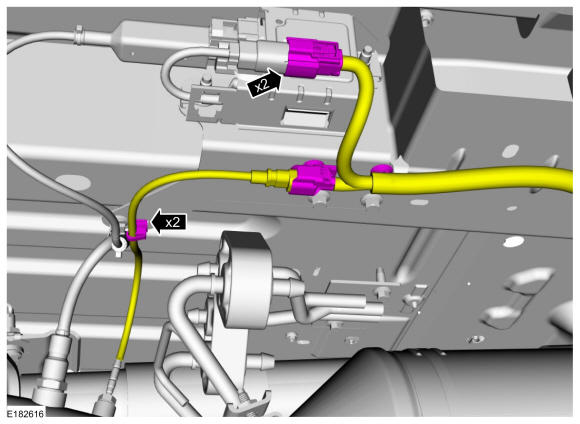

Disconnect the exhaust gas temperature sensor and the NOX12 electrical connectors and the harness retainers.
- 3.

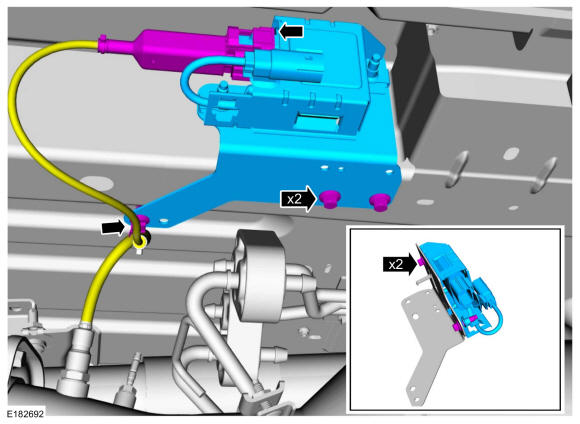

- Disconnect the NOX sensor electrical connector and release the harness clip.
- Remove the bolts and remove the NOX12 and the mounting bracket from the vehicle frame rail.
Torque: 22 lb.ft (30 Nm)
- Remove the bolts and remove the NOX12 from the mounting bracket.
Torque: 22 lb.ft (30 Nm)
