Nitrogen Oxides (NOx) Sensor Module 11: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 3.

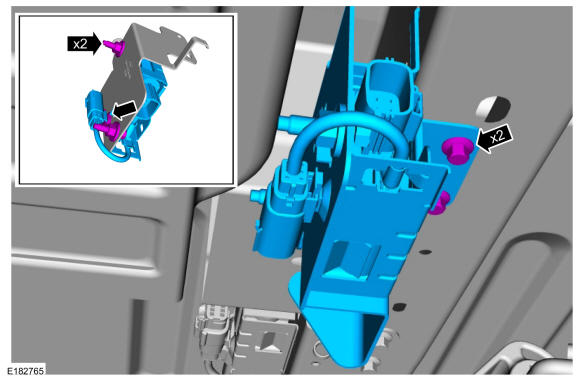

- Remove the bolts and remove the NOX11 and the mounting bracket from the vehicle frame rail.
Torque: 22 lb.ft (30 Nm)
- Remove the bolts and release the harness retainer, remove the NOX11 from the mounting bracket.
Torque: 22 lb.ft (30 Nm)

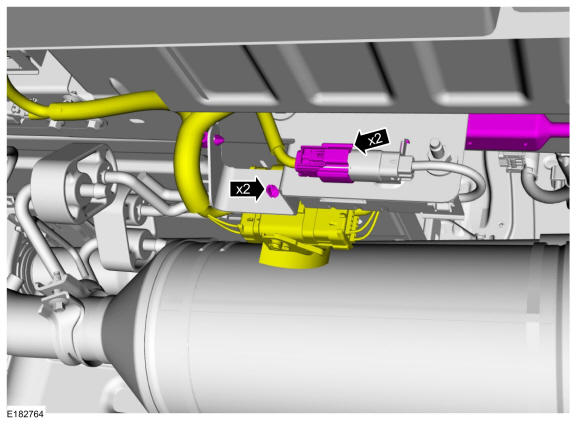

- Remove the bolts and remove the NOX11 and the mounting bracket from the vehicle frame rail.
