Mass Air Flow (MAF) and Intake Air Temperature (IAT) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.

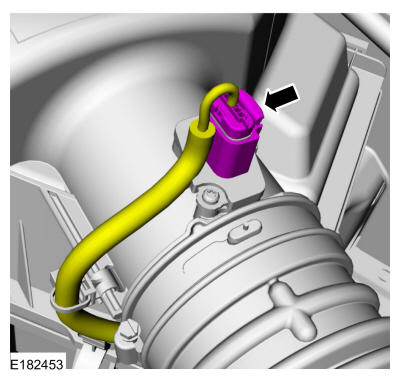

Disconnect the MAFT sensor electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

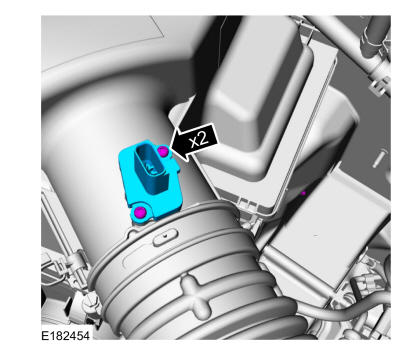

Remove the screws and the MAFT sensor.Torque: 27 lb.in (3 Nm)
 Courtesy of FORD MOTOR COMPANY
|
