Manifold Absolute Pressure and Temperature (MAPT) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
- 1.
Disconnect the MAPT sensor electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

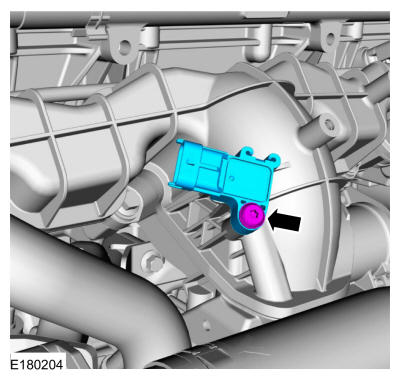

- 2.
Remove the bolt and the MAPT sensor.
 Courtesy of FORD MOTOR COMPANY
|
