Section 15 (Electronic Engine Controls System - 3.2L DURATORQ-TDCI (148KW/200PS) - Puma)
>>
Removal And Installation
>>
Fuel Pressure Switch
>>
Removal
Fuel Pressure Switch: Removal
WARNING:
This page is about a different variant/trim than selected.
1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to:
Jacking and Lifting - Overview
.
2.

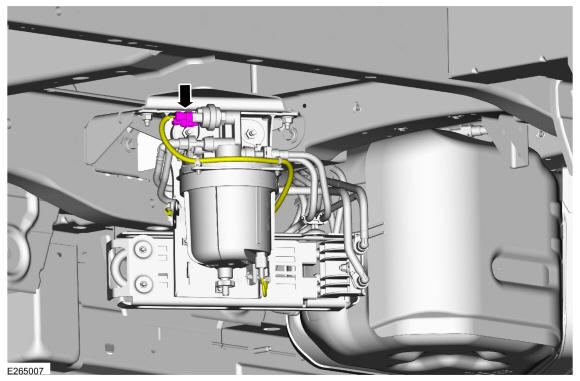

Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY
3.

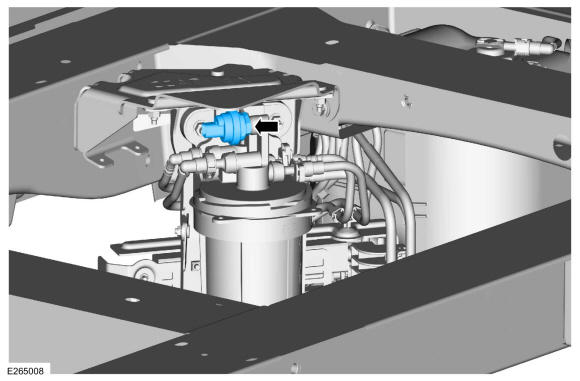

Remove the fuel pressure sensor.
Torque: 40 lb.in (4.5 Nm)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
