Engine Coolant Temperature (ECT) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

1.

Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .

2.

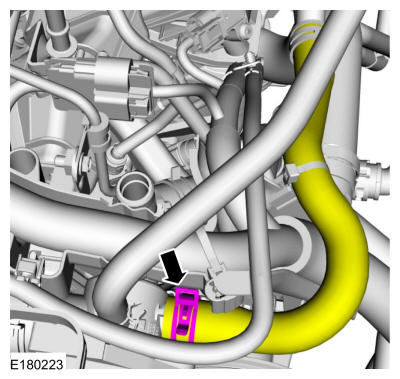

Release spring clamp and position aside the heater hose.

GFD145236

Courtesy of FORD MOTOR COMPANY

3.

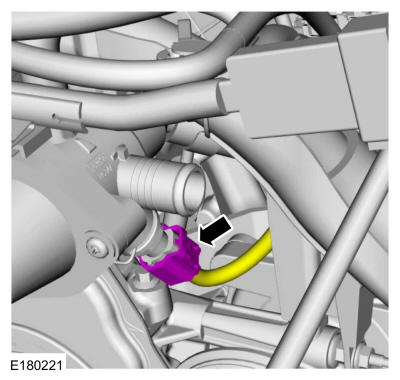

Disconnect the ECT sensor electrical connector.

GFD145237

Courtesy of FORD MOTOR COMPANY

4.

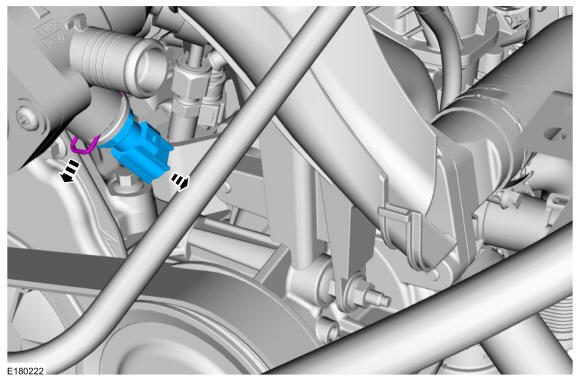

Remove retainer clip and then remove ECT sensor.

GFD145238

Courtesy of FORD MOTOR COMPANY
