Camshaft Position (CMP) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Position coolant hose aside, remove the oil filler cap and remove the engine appearance cover.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

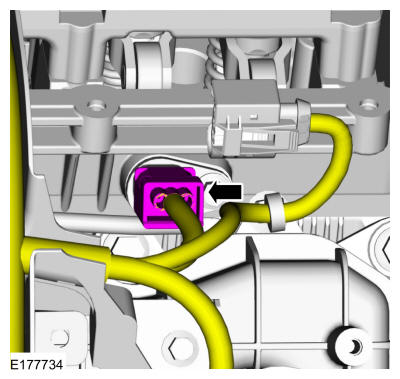

Disconnect the CMP sensor electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

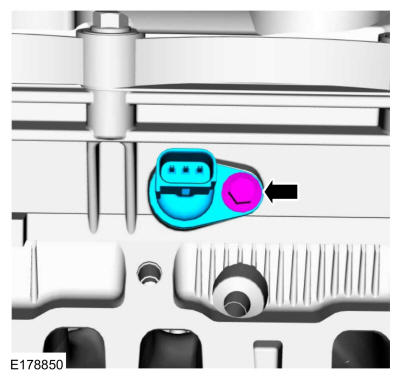

Remove the bolt and the CMP sensor.
 Courtesy of FORD MOTOR COMPANY
|
