Crankshaft Position (CKP) Sensor Bracket Adjustment

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1562 Timing Tool
Courtesy of FORD MOTOR COMPANY	303-1587 Timing Tool, Crankshaft
Feeler Gauge

Activation

• 1.

  Remove the engine front cover. Refer to: Engine Front Cover .

• 2.

  Using the special tool, set the crankshaft position.

  Install Special Service Tool: 303-1587 Timing Tool, Crankshaft.

Courtesy of FORD MOTOR COMPANY

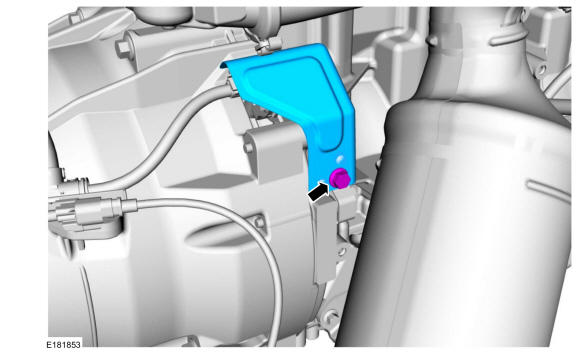

• 3.

  Remove the bolt and the heat shield.

Courtesy of FORD MOTOR COMPANY

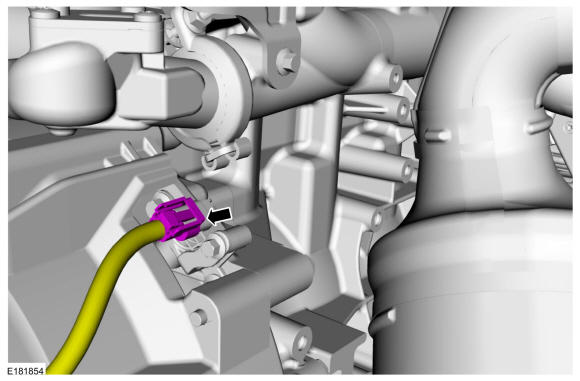

• 4.

  Disconnect the CKP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

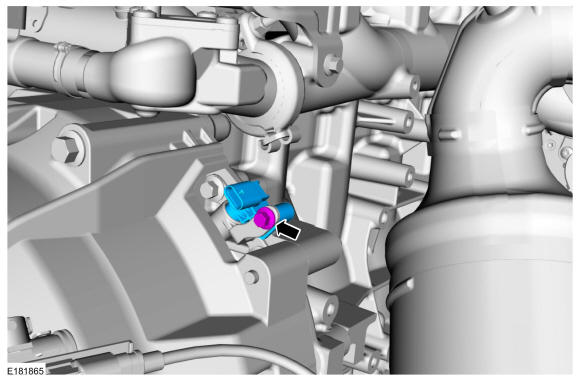

• 5.

  Remove the bolt and the CKP sensor.

Courtesy of FORD MOTOR COMPANY

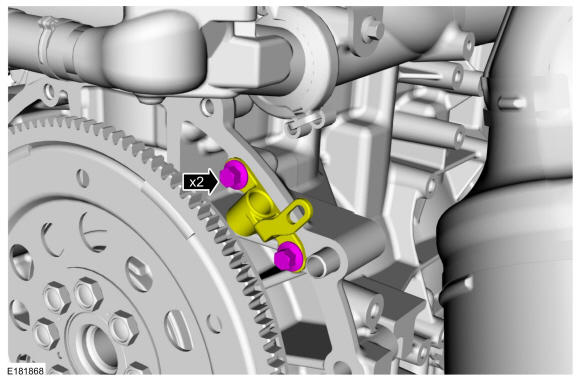

• 6.


  NOTE: The transmission is removed for clarity.

  Loosen the bolts.

Courtesy of FORD MOTOR COMPANY

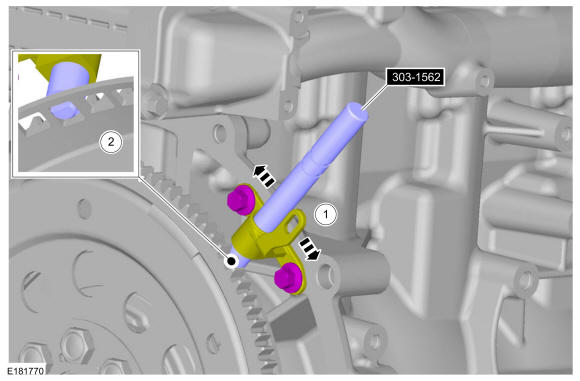

• 7.


  NOTE: The transmission is removed for clarity.
  • Using the special tool, align the CKP sensor bracket. Use Special Service Tool: 303-1562 Timing Tool.
  • Make sure that the special tool is located in the flexplate timing slot.

Courtesy of FORD MOTOR COMPANY

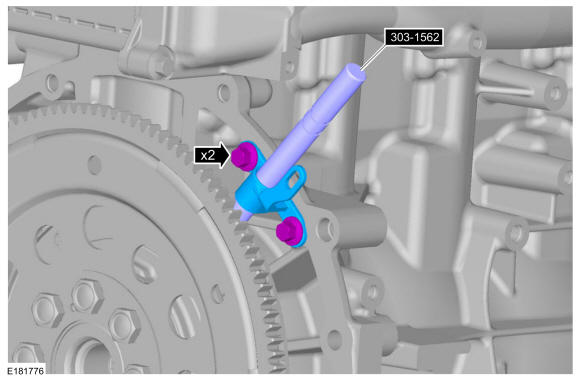

• 8.


  NOTE: The transmission is removed for clarity.
  • Tighten the bolts before removing tool. Use Special Service Tool: 303-1562 Timing Tool.

    Torque: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY

• 9.

  Remove special tool. Remove Special Service Tool: 303-1587 Timing Tool, Crankshaft.

Courtesy of FORD MOTOR COMPANY

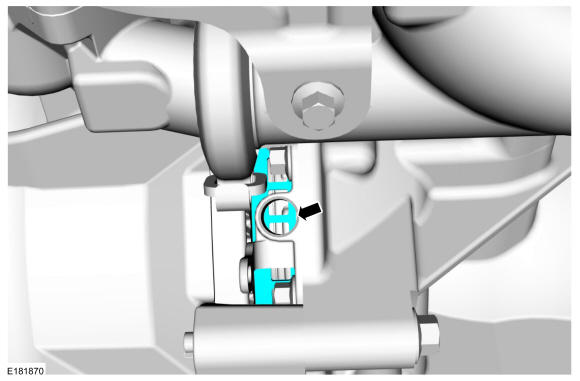

• 10.

  Rotate the crankshaft until the trigger tooth is visible through the CKP sensor housing.

Courtesy of FORD MOTOR COMPANY

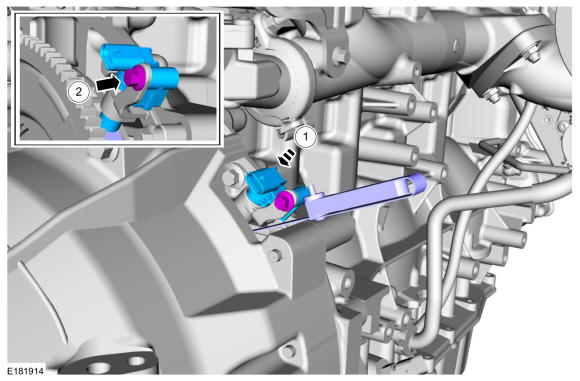

• 11.


  • Install the CKP sensor and loosely install the bolt. Apply light pressure to ensure contact with the 0.008 inch (0.2 mm) feeler gauge blade. Use the General Equipment: Feeler Gauge
  • Tighten the bolt

    Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

• 12.

  Connect the CKP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

• 13.

  Install the heat shield and the bolt.

  Torque: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY

• 14.

  Install the engine front cover. Refer to: Engine Front Cover .
