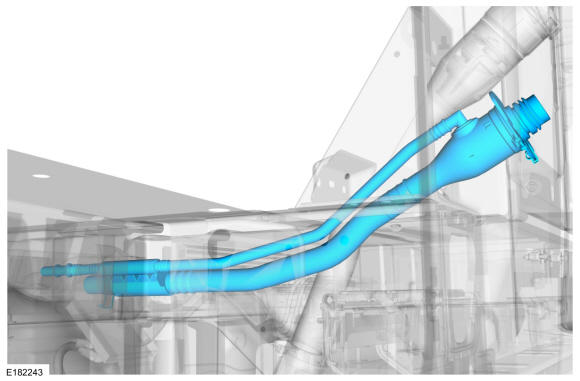

Reductant Tank Filler Hose: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:
During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.
- 2.

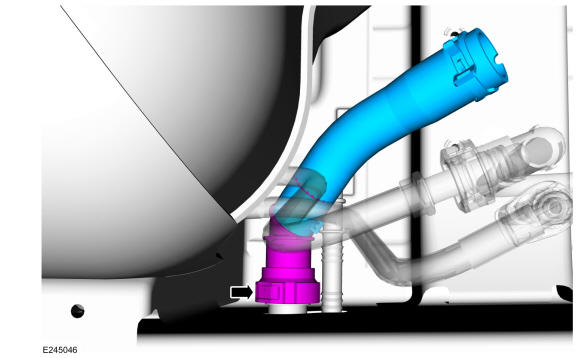

Connect the reductant tank filler hose quick release coupling. Refer to: Quick Release Coupling .
- 3.
Install the reductant tank. Refer to: Reductant Tank .
- 4.
Install fuel filler door assembly. Refer to: Fuel Filler Door Assembly .
- 5.

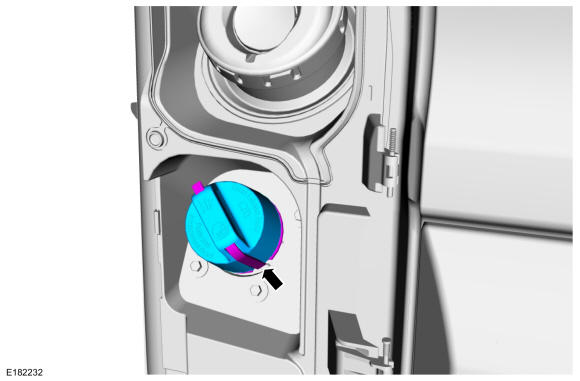

Attach the reductant filler cap retaining strap to the reductant tank filler hose, then install the reductant filler cap.
