Exhaust Gas Recirculation (EGR) Valve: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:
Make sure that the mating faces are clean and free of foreign material.
- 1.

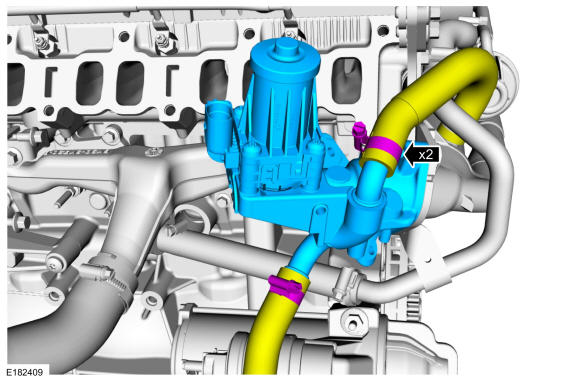

Install the EGR valve and connect the EGR valve coolant hoses and tighten the hose clamps.Torque: 33 lb.in (3.7 Nm)
- 2.
Install the intake manifold. Refer to: Intake Manifold .
