Exhaust Gas Recirculation (EGR) Temperature Sensor: Removal

Exhaust Gas Recirculation (EGR) Temperature Sensor Bank 1 Sensor 1

• 1.

  Position the hose aside, remove the oil filler cap and remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

• 2.

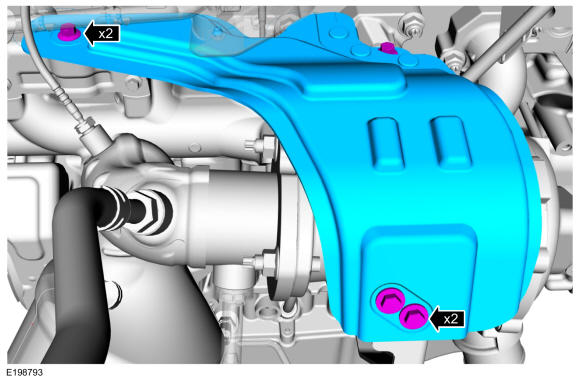

  Remove the bolts and remove the turbocharger heat shield.

  Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

• 3.

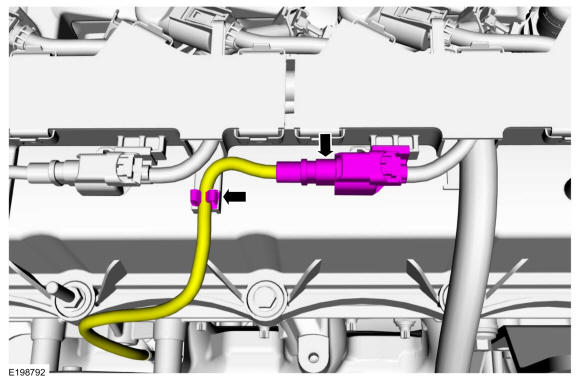

  Disconnect the EGRT sensor electrical connector and release the EGRT sensor harness retainer.

Courtesy of FORD MOTOR COMPANY

• 4.

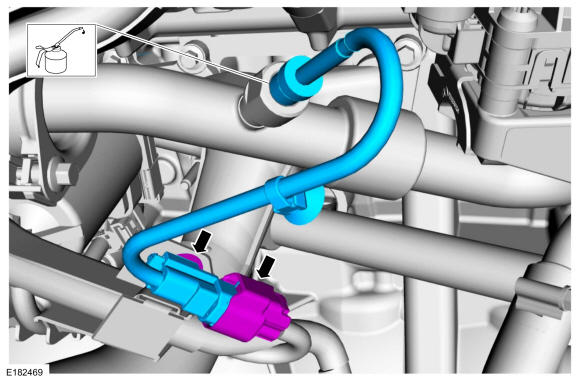

  NOTE: Lubricate the EGRT sensor threads with penetrating and lock lubricant to assist in removal of the EGRT sensor.
  NOTE: Before installing the EGRT sensor apply a light coat of anti-seize lubricant to the threads of the EGRT sensor.

  Remove the EGRT sensor.

  Material: Motorcraft® Penetrating and Lock Lubricant / XL-1

  Material: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2

  Torque: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY

Exhaust Gas Recirculation (EGR) Temperature Sensor Bank 1 Sensor 2

• 5.


  NOTE: During the removal and the installation of the EGRT sensor, the threaded bushing must be held with a wrench to prevent damage to the connecting EGR tube.
  NOTE: Lubricate the EGRT sensor threads with penetrating and lock lubricant to assist in removal of the EGRT sensor.
  NOTE: Before installing the EGRT sensor apply a light coat of anti-seize lubricant to the threads of the EGRT sensor.

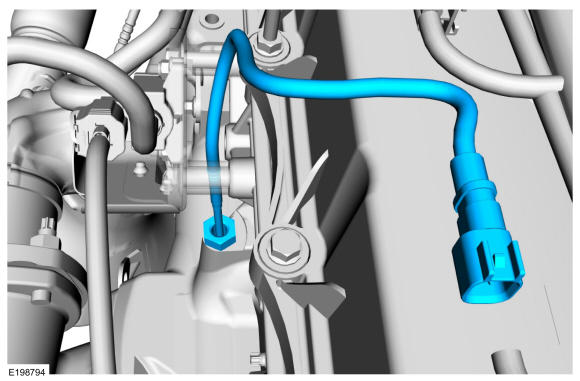

  Disconnect the EGRT sensor electrical connector and release the EGRT sensor harness retainer. Remove the EGRT sensor.

  Material: Motorcraft® Penetrating and Lock Lubricant / XL-1

  Material: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2

  Torque: 32 lb.ft (44 Nm)
