Exhaust Gas Recirculation (EGR) Cooler Bypass Valve Solenoid: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

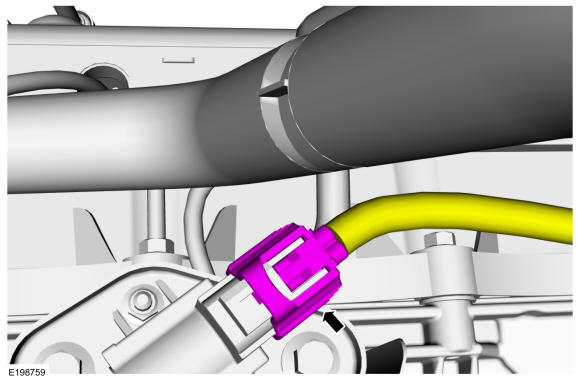

Courtesy of FORD MOTOR COMPANY

2.

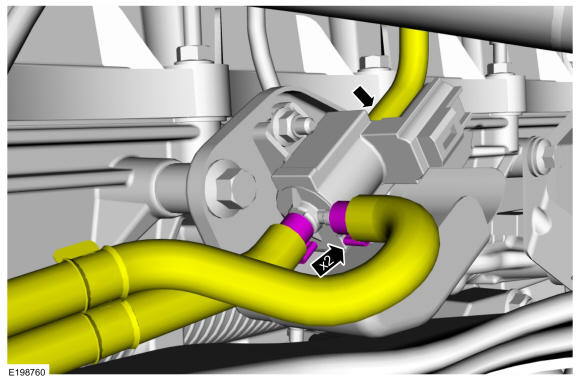

NOTE: Replacement clamps are included with the new EGR cooler bypass valve solenoid and are conventional spring clamps.

Remove the crimp clamps and disconnect the hoses from the EGR cooler bypass valve solenoid.

Courtesy of FORD MOTOR COMPANY

3.

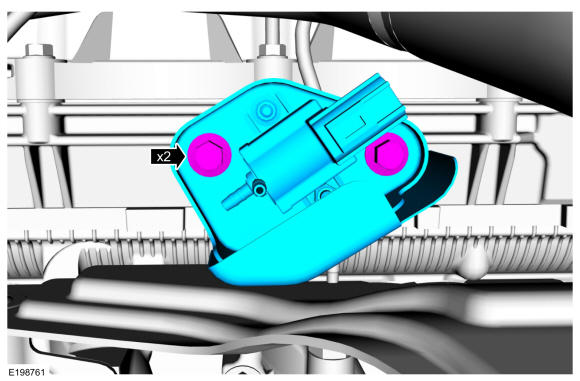

Remove the EGR cooler bypass valve solenoid bolts and then remove the EGR cooler bypass valve solenoid.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
