Engine Emission Control - Component Location
WARNING: This page is about a different variant/trim than selected.

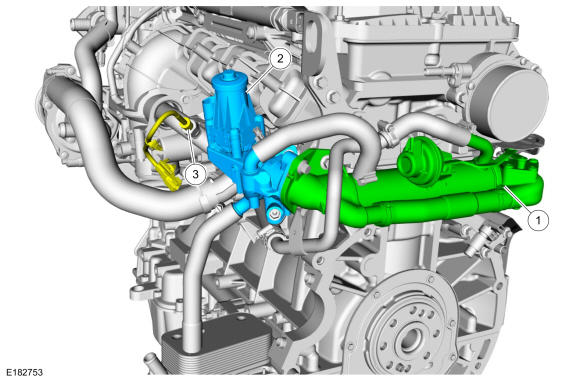

3.2L Duratorq TDCi Puma
| Item | Description |
|---|---|
| 1 | EGR (exhaust gas recirculation) cooler |
| 2 | EGR (exhaust gas recirculation) valve |
| 3 | EGR (exhaust gas recirculation) temperature sensor bank 1 sensor 2 |

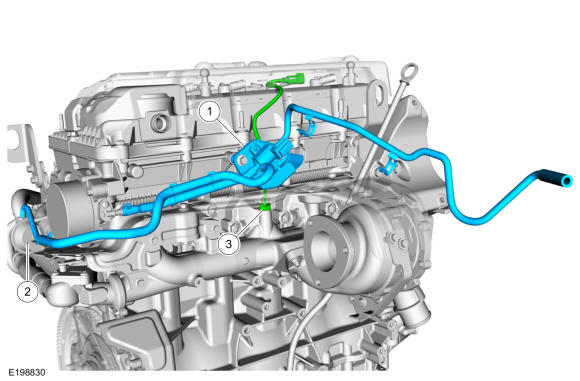

3.2L Duratorq TDCi Puma
| Item | Description |
|---|---|
| 1 | EGR (exhaust gas recirculation) cooler bypass valve solenoid |
| 2 | EGR (exhaust gas recirculation) cooler activator |
| 3 | EGR (exhaust gas recirculation) temperature sensor bank 1 sensor 1 |

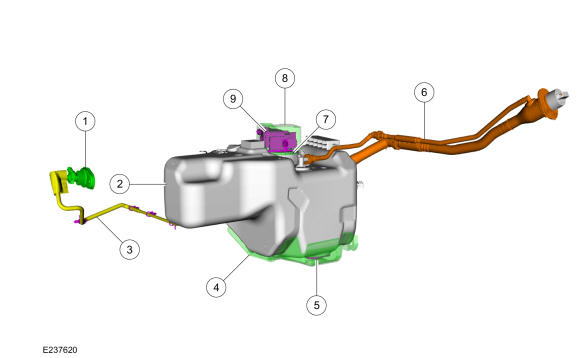

Reductant System
| Item | Description |
|---|---|
| 1 | Reductant injector |
| 2 | Reductant tank |
| 3 | Reductant pressure line |
| 4 | Reductant tank bottom shield |
| 5 | Reductant level sensor |
| 6 | Reductant tank filler hose |
| 7 | Reductant heater and sender assembly |
| 8 | Reductant pump assembly cover |
| 9 | Reductant pump |
