Turbocharger Oil Supply Tube LH: Removal

• 1.

  Remove the turbocharger LH. Refer to: Turbocharger LH .

• 2.

  Remove the lower turbocharger oil manifold assembly bolt and the turbocharger oil manifold assembly.

Courtesy of FORD MOTOR COMPANY

• 3.

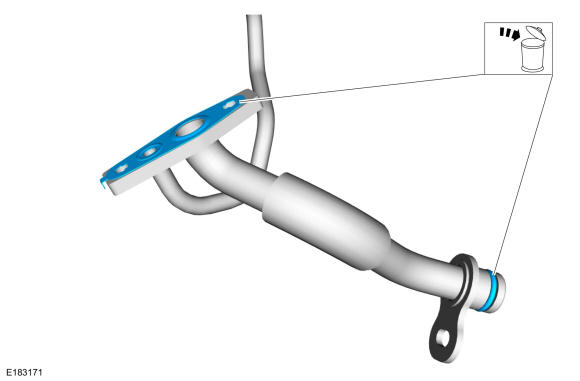

  Remove and discard the turbocharger oil manifold assembly O-ring seal and gasket.

Courtesy of FORD MOTOR COMPANY
