Turbocharger Oil Supply Tube LH: Installation
- 1.

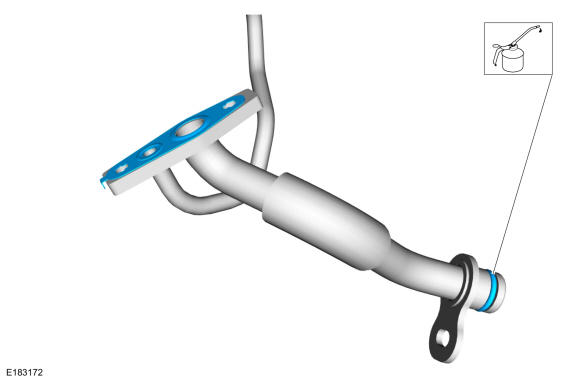

Install the new turbocharger oil manifold assembly O-ring seal and gasket. Lubricate the new turbocharger oil manifold assembly O-ring seal with clean engine oil.Material: Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)
- 2.

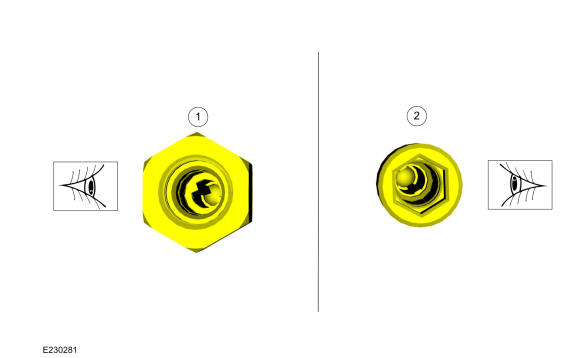

Inspect the turbocharger oil supply tube fitting and replace as needed.Torque:
Type 1: 35 lb.ft (48 Nm)
Type 2: 24 lb.ft (32 Nm)
- 3.NOTE: Lubricate the cylinder block bore with clean engine oil.

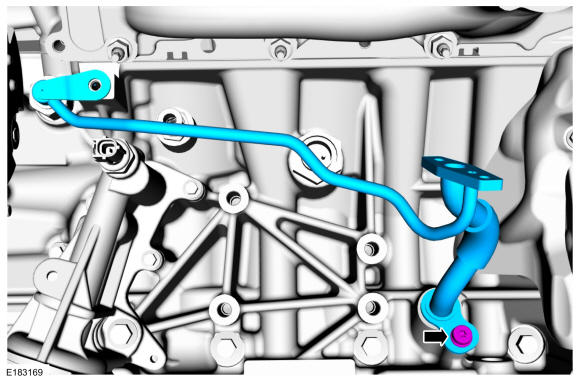

Install the turbocharger oil tube assembly, then install and tighten the turbocharger oil tube assembly lower bolt in the following 2 stages.
Material: Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)
Torque:
Stage 1: 71 lb.in (8 Nm)
Stage 2: 30°
- 4.
Install the turbocharger LH. Refer to: Turbocharger LH .
