Starting System

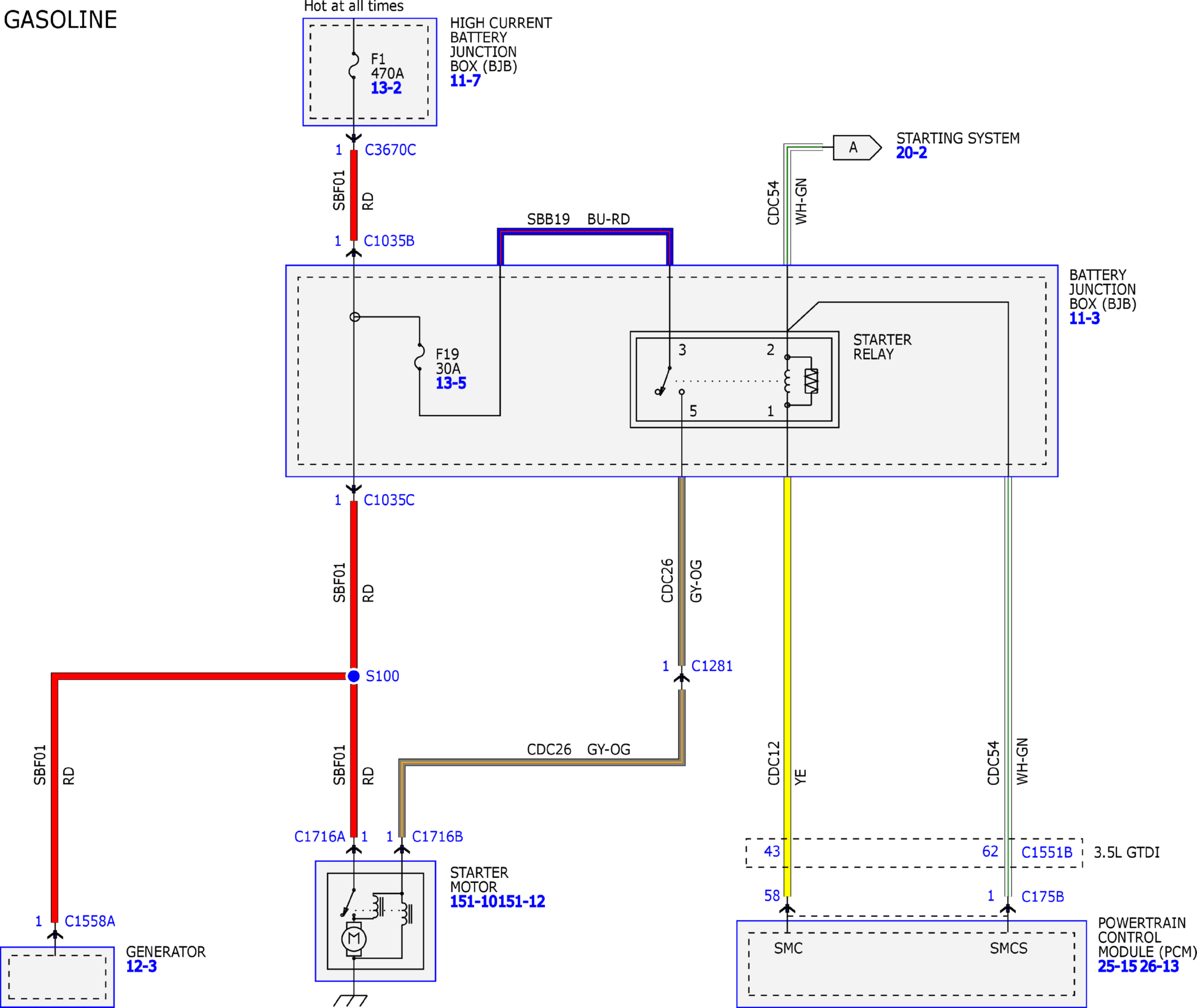

Fig 1: Starting System Wiring Diagram (1 Of 4)
GFDW61719Courtesy of FORD MOTOR COMPANY

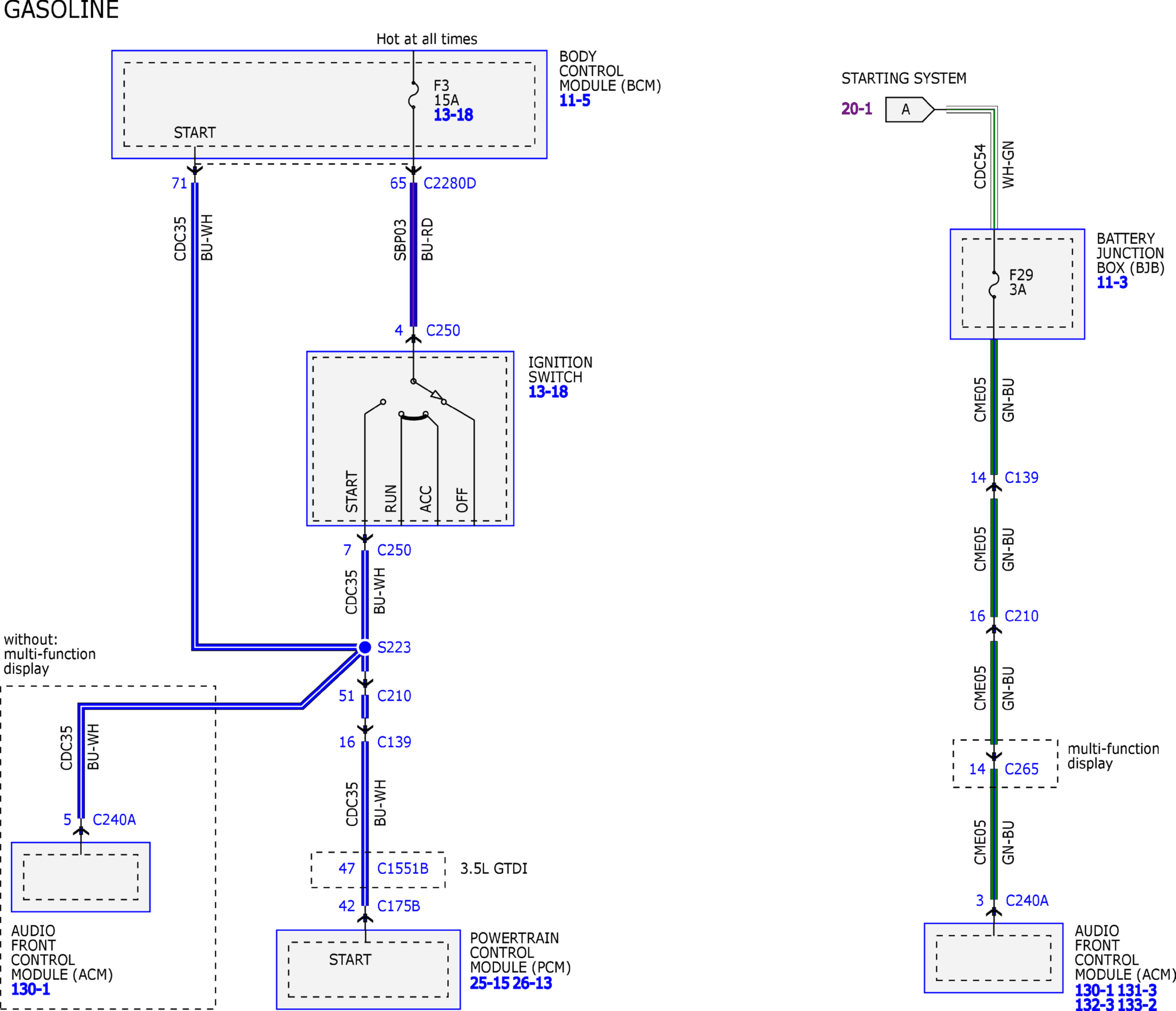

Fig 2: Starting System Wiring Diagram (2 Of 4)
GFDW61720Courtesy of FORD MOTOR COMPANY

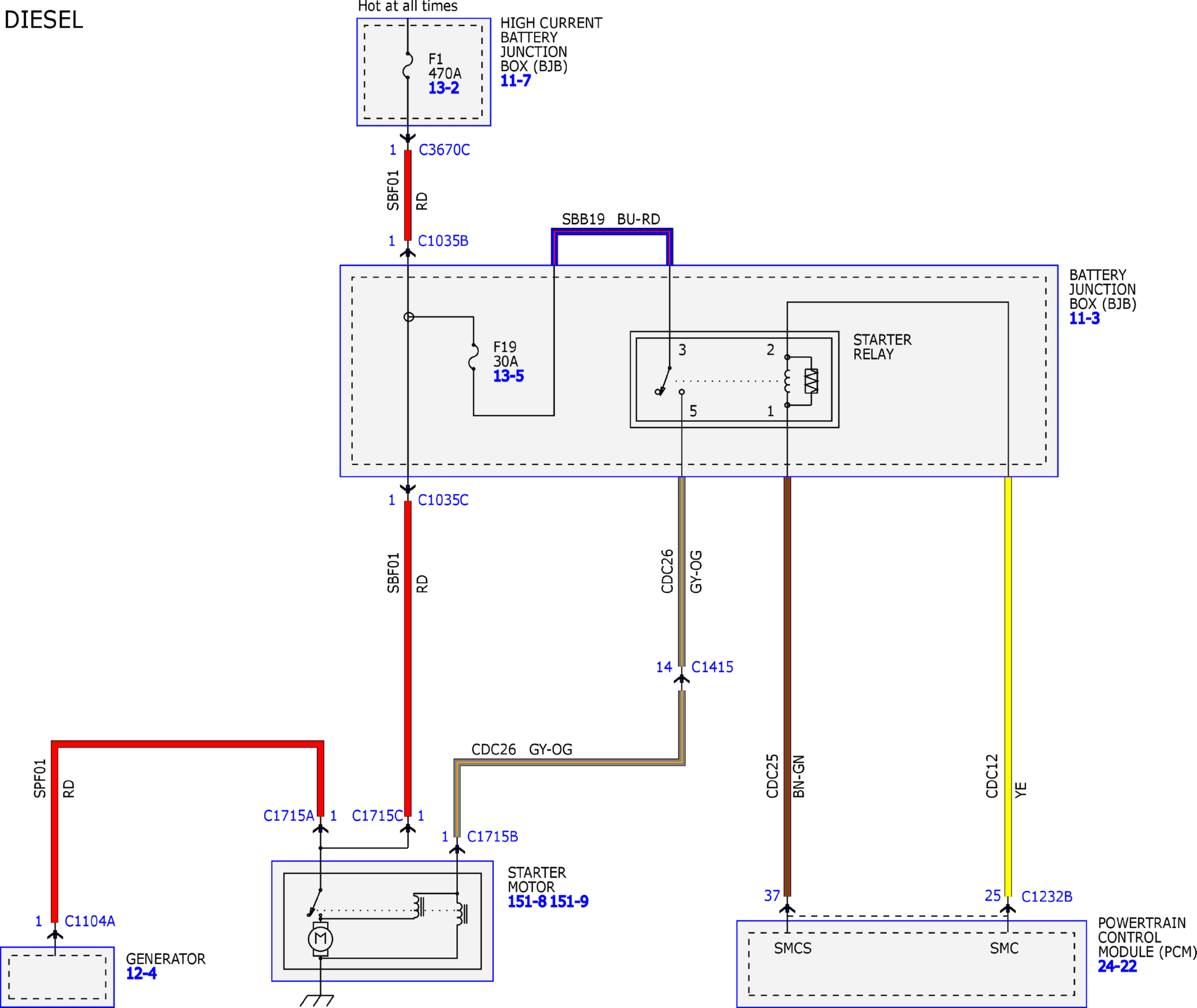

Fig 3: Starting System Wiring Diagram (3 Of 4)
GFDW61721Courtesy of FORD MOTOR COMPANY

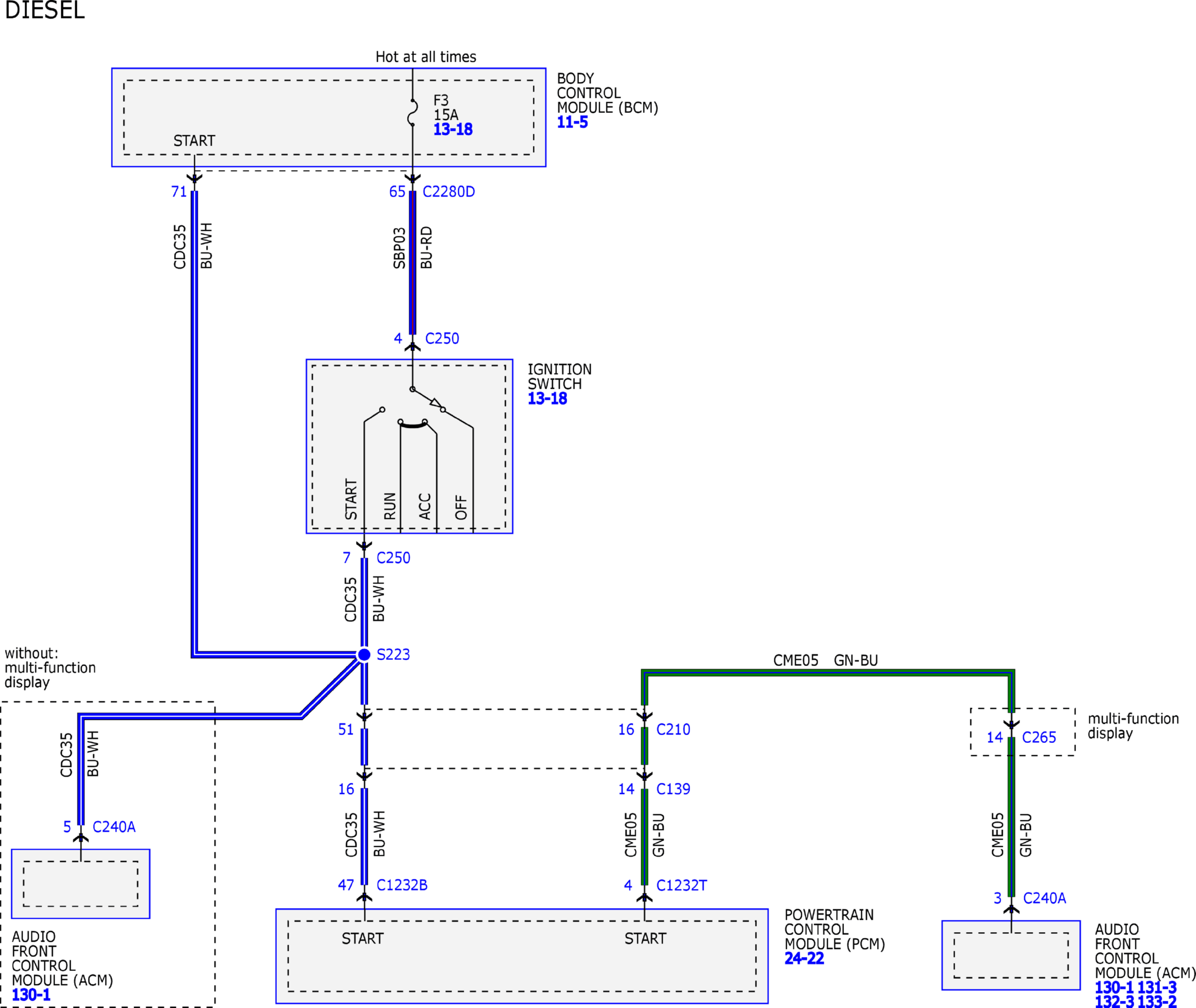

Fig 4: Starting System Wiring Diagram (4 Of 4)
GFDW61722Courtesy of FORD MOTOR COMPANY
