Brake Vacuum Pump - 3.7L Duratec (199kW/270PS): Removal

NOTE: Green state vehicles only.

NOTE: Removal steps in this procedure may contain installation details.

• 1.

  With the vehicle in neutral, position it on a hoist. Refer to: Jacking and Lifting - Overview .

• 2.

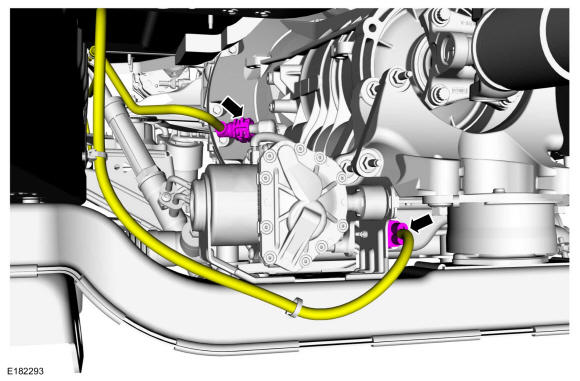

  Disconnect the vacuum tube and the electrical connector.

Courtesy of FORD MOTOR COMPANY

• 3.

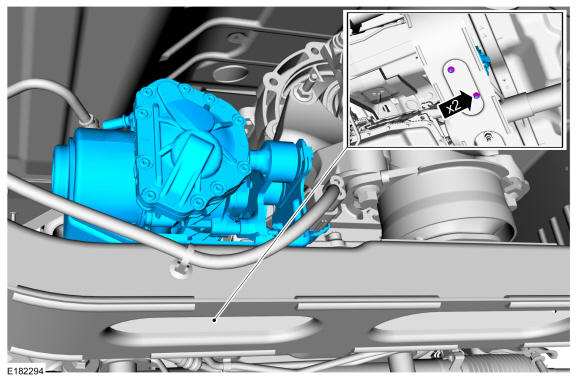

  Remove the 2 nuts and the brake vacuum pump.

  Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
