Brake Vacuum Pump - 3.5L EcoBoost (235kW/320PS): Removal

NOTE: Removal steps in this procedure may contain installation details.

• 1.

  Remove the RH valve cover. Refer to: Valve Cover RH .

• 2.

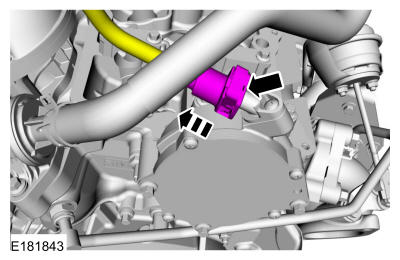

  Release the coupling and disconnect the vacuum tube.

Courtesy of FORD MOTOR COMPANY

• 3.

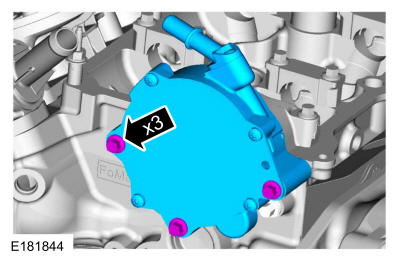

  NOTE: The upper/inboard vacuum pump bolt will remain in the vacuum pump housing when removing the vacuum pump.

  Remove the 3 bolts and the brake vacuum pump.

Courtesy of FORD MOTOR COMPANY
