Brake Vacuum Pump - 3.2L Duratorq-TDCi (148kW/200PS) - Puma: Removal

1.

Remove the valve cover. Refer to: Valve Cover .

2.

Remove the LH engine mount. Refer to: Engine Mount LH .

3.

Install the engine mount bracket and the bolts.
Torque: 46 lb.ft (63 Nm)

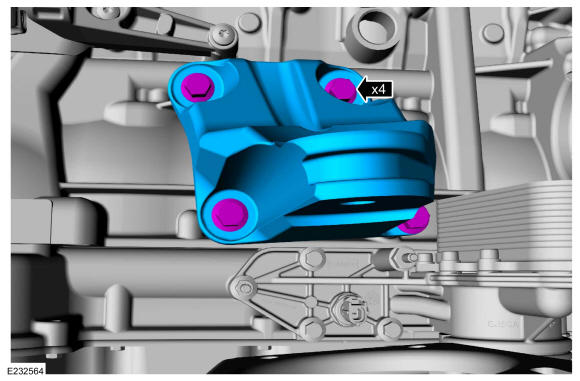

GFD142978

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Make sure the transmission fluid pan does not make contact with the steering gear when lowering the engine.

Position a block of wood (approximately 50.8 mm (2 in) thick) between the engine mount bracket and the crossmember and lower the jack until the engine mount bracket is resting on the block of wood. Remove the stand.

Use the General Equipment: Wooden Block

Use the General Equipment: Vehicle/Axle Stands

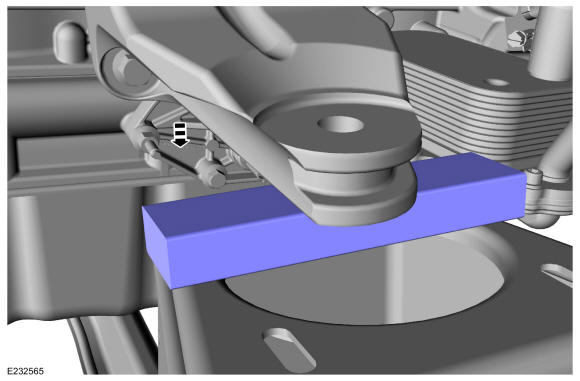

GFD142979

Courtesy of FORD MOTOR COMPANY

5.

Release the clamp and disconnect the vacuum tube.

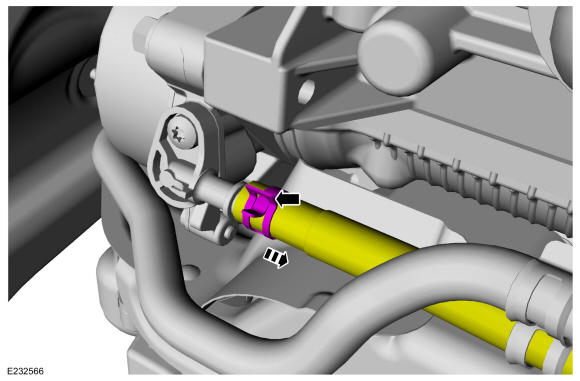

GFD142980

Courtesy of FORD MOTOR COMPANY

6.

Release the coupling and disconnect the vacuum tube.

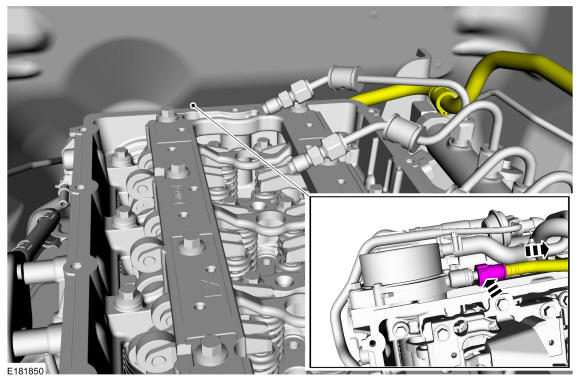

GFD142981

Courtesy of FORD MOTOR COMPANY

7.

Remove the 2 bolts and the brake vacuum pump.
Torque: 17 lb.ft (23 Nm)

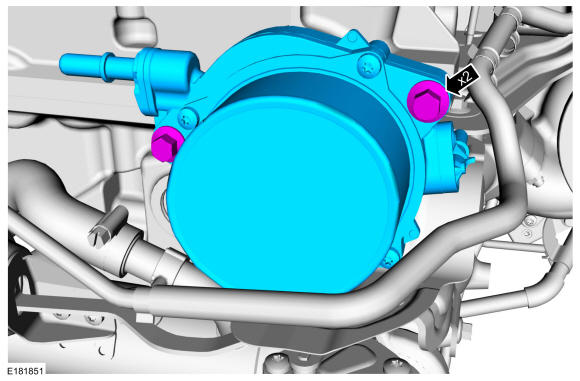

GFD142982

Courtesy of FORD MOTOR COMPANY

8.

NOTE: Install the new seal by hand with no lubricant.

Using a plastic non-marring trim tool, remove and discard the vacuum pump seal.

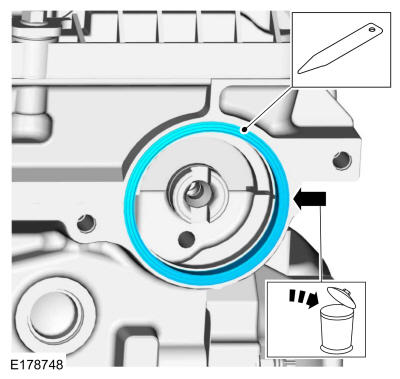

GFD142983

Courtesy of FORD MOTOR COMPANY
