Instrument Panel Cluster (IPC) - Overview: Overview

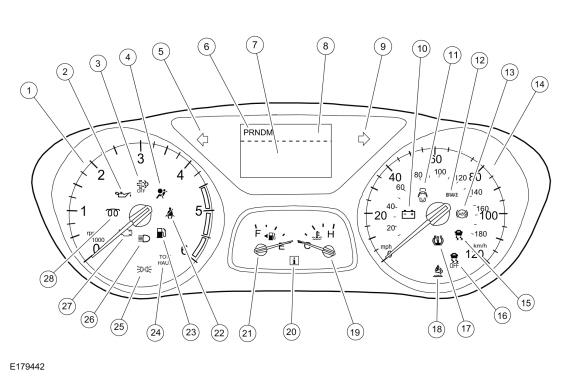

Low And Mid-Level Message Center Display
| Item | Description |
|---|---|
| 1 | Tachometer |
| 2 | Low oil pressure warning indicator |
| 3 | Diesel particulate filter auto regeneration control indicator Engine service (wrench) indicator (base message center IPC) |
| 4 | Airbag warning indicator |
| 5 | LH turn indicator |
| 6 | PRNDL indicator (automatic transmission only) |
| 7 | Trip computer and main display area |
| 8 | Outside air temperature display |
| 9 | RH turn indicator |
| 10 | Charging system warning indicator |
| 11 | Door ajar indicator |
| 12 | Brake warning indicator |
| 13 | ABS warning indicator |
| 14 | Speedometer |
| 15 | Stability/traction control indicator (sliding car icon) |
| 16 | Stability/traction control disabled indicator (sliding car OFF icon) |
| 17 | TPMS warning indicator |
| 18 | Diesel exhaust fluid level low indicator Low washer fluid level indicator (base message center IPC only) |
| 19 | Temperature gauge |
| 20 | Information indicator |
| 21 | Fuel gauge |
| 22 | Safety belt warning indicator |
| 23 | Low fuel indicator |
| 24 | Tow haul indicator |
| 25 | Lights on indicator |
| 26 | High beam indicator |
| 27 | MIL |
| 28 | Glow plug (wait to start) indicator |

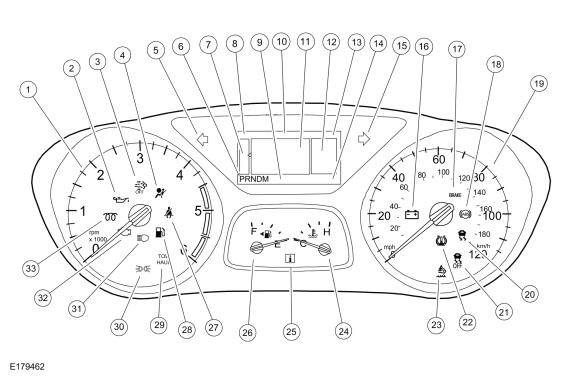

High Level Message Center Display
| Item | Description |
|---|---|
| 1 | Tachometer |
| 2 | Low oil pressure warning indicator |
| 3 | Diesel particulate filter auto regeneration control indicator |
| 4 | Airbag warning indicator |
| 5 | LH turn indicator |
| 6 | PRNDL indicator (automatic transmission only) |
| 7 | Main navigation |
| 8 | Outside air temperature display |
| 9 | Reconfigurable telltale (RTT) display area |
| 10 | Current menu display |
| 11 | Message center display area |
| 12 | Lane keeping alert off status display |
| 13 | RTT display area |
| 14 | Odometer display |
| 15 | RH turn indicator |
| 16 | Charging system warning indicator |
| 17 | Brake warning indicator |
| 18 | ABS warning indicator |
| 19 | Speedometer |
| 20 | Stability/traction control indicator (sliding car icon) |
| 21 | Stability/traction control disabled indicator (sliding car OFF icon) |
| 22 | TPMS warning indicator |
| 23 | Diesel exhaust fluid level low indicator |
| 24 | Temperature gauge |
| 25 | Information indicator |
| 26 | Fuel gauge |
| 27 | Safety belt warning indicator |
| 28 | Low fuel indicator |
| 29 | Tow haul indicator |
| 30 | Lights on indicator |
| 31 | High beam indicator |
| 32 | MIL |
| 33 | Glow plug (wait to start) indicator |
The base IPC and the optional IPC are almost identical with the exception of the message center display area. Both message center displays utilize a single LCD display screen. The optional IPC message center provides a larger display area with enhanced display capabilities.
Informational indicators provide information to the driver of conditions that exist in the vehicle. Warning indicators provide information to the driver of conditions that could potentially cause personal injury or alter vehicle performance.
Reconfigurable telltale (RTT) indicators illuminate in the message center and replace the typical informational or warning indicator using the same iconic representation.
Module messaging has increased over time and is the standard for sending and receiving information required to operate the IPC. The majority of the inputs required to operate the IPC are received over the CAN.
Hardwired Inputs
The IPC requires hardwired inputs from components that are not on either the HS-CAN or the MS-CAN. These components are required for specific IPC functions or gateway requirements.
The hardwired inputs provided by components are:
- Park detect switch (part of the floor shifter assembly)
- Upper LH (message center) and upper RH (audio control) steering wheel switch
