Lower Arm: Removal

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
Remove the wheel and tire. Refer to: Wheel and Tire .
If equipped, remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY
If equipped, remove the bolts as sequence shown and the bracket.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use a prying device to open the slot in the knuckle to separate the lower ball joint from the knuckle assembly. Damage to the knuckle assembly may occur.

NOTE: Do not use a prying device or separator fork between the ball joint and the wheel knuckle. Damage to the ball joint or ball joint seal may result. Only use the pry bar by inserting it into the lower arm body opening.

NOTE: Use care when releasing the lower arm and wheel knuckle into the resting position or damage to the ball joint seal may occur.

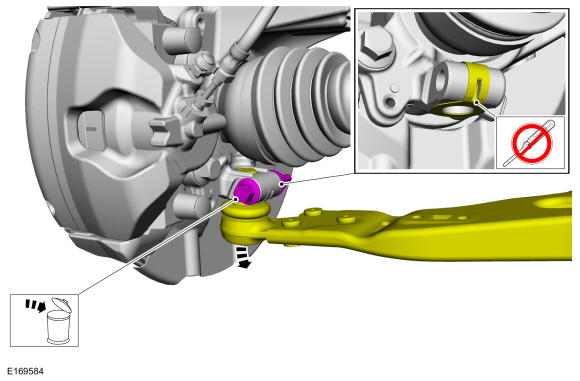

Remove and discard the wheel knuckle bolt and the nut. Disconnect the lower arm and position aside the ball joint seal.

Courtesy of FORD MOTOR COMPANY

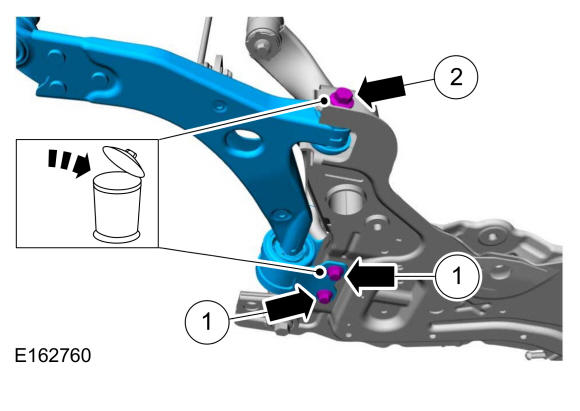

Remove and discard the bolts as sequence shown and remove the lower arm.

Courtesy of FORD MOTOR COMPANY
