Front Stabilizer Bar Link: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the wheel and tire. Refer to: Wheel and Tire .
  2. NOTE: Make sure that the ball joint ball does not rotate.

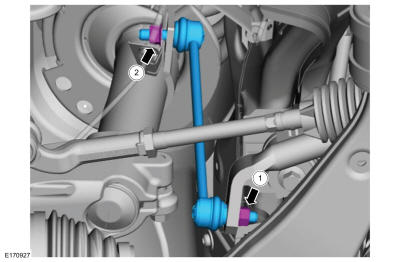

    Remove front stabilizer bar link nuts and the front stabilizer bar link.

    1. Torque: 46 lb.ft (62 Nm)
    2. Torque: 35 lb.ft (48 Nm)

GFD214121Courtesy of FORD MOTOR COMPANY
