Seat Position Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

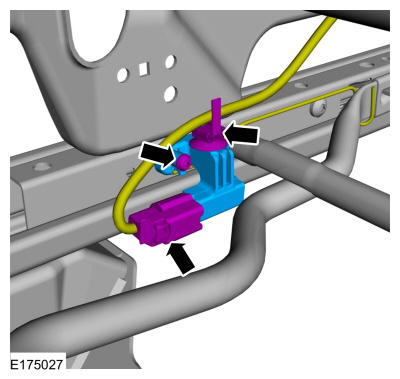

NOTE: RH shown, LH similar.
    • Remove the screw.

      Torque: 9 lb.in (1 Nm)

    • Release the harness retainer.

    • Disconnect the electrical connector.

    • Remove the seat position sensor.

GFD216370Courtesy of FORD MOTOR COMPANY
