Driver Airbag: Installation

WARNING: Incorrect repair techniques or actions can cause an accidental Supplemental Restraint System deployment. Make sure the restraint system is depowered before reconnecting the component. Refer to Supplemental Restraint System (SRS) Depowering . Failure to precisely follow depowering instructions could result in serious personal injury from an accidental deployment.

To install, reverse the removal procedure.
NOTE: An audible click is heard when each side of the driver airbag module is pushed in and the spring clip seats behind the steering wheel retainer.

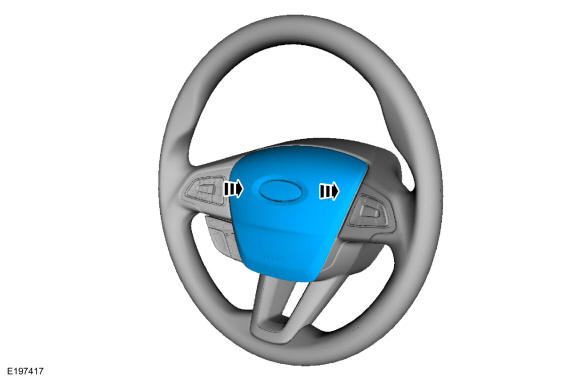

Align the driver airbag to the steering wheel and push in, engaging the driver airbag spring clips to the steering wheel retainers.

Courtesy of FORD MOTOR COMPANY
Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering .
