Rear Electric Booster Heater: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the LH front seat. Refer to: Front Seat .
Remove the second row double seat. Refer to: Second Row Double Seat .
Position aside the LH loadspace trim panel.

Courtesy of FORD MOTOR COMPANY
- Position aside the rear door weatherstrip and the safety belt.
- Remove the retainers and the rear scuff plate trim panel.
Courtesy of FORD MOTOR COMPANY
Position aside the front door weatherstrip, release the clips and remove the front door scuffplate trim panel.

Courtesy of FORD MOTOR COMPANY
- Remove the safety belt anchor bolt and position aside the safety belt and the rear door weatherstrip.
  Torque: 30 lb.ft (40 Nm)
- Release the clips, slide up and remove the lower B-pillar trim panel.
Courtesy of FORD MOTOR COMPANY
Remove the retainers and position aside the front floor carpet. Use the General Equipment: Retaining Strap

Courtesy of FORD MOTOR COMPANY
- Remove the retainers and the duct.
- Remove the front floor B-pillar LH spacer.
Courtesy of FORD MOTOR COMPANY
Remove the retainers and the A/C auxiliary assembly cover.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY

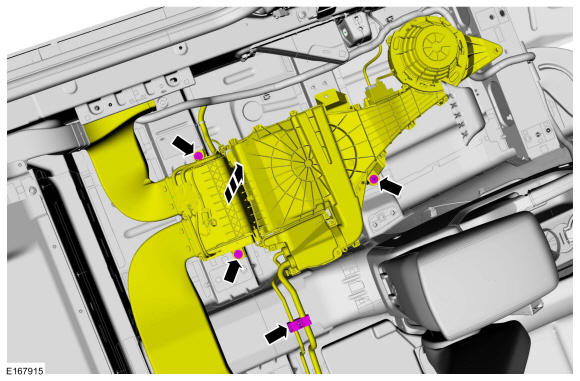

- Remove the rear evaporator rear outlet and inlet line retainer.
- Remove the bolts, stud bolt and position aside the rear climate control housing assembly.
  Torque: 71 lb.in (8 Nm)
Courtesy of FORD MOTOR COMPANY

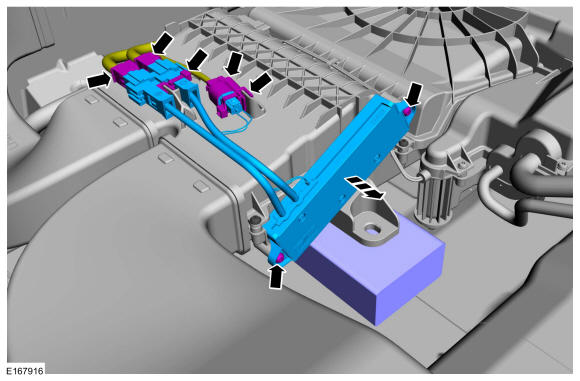

- Disconnect the rear heater electrical connectors.
- Release the clips, remove the retainers and the rear electric booster heater. Use the General Equipment: Wooden Block
