Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Health and Safety Precautions .
- Remove the valve cover. Refer to: Valve Cover .

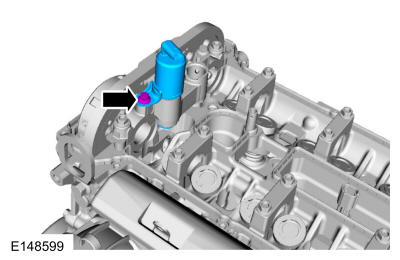

- Remove the bolt and the VCT oil control solenoid.
Torque: 89 lb.in (10 Nm)
