Removal And Installation: Radiator: Removal

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
Remove the retainers and the lower air deflector.

Courtesy of FORD MOTOR COMPANY

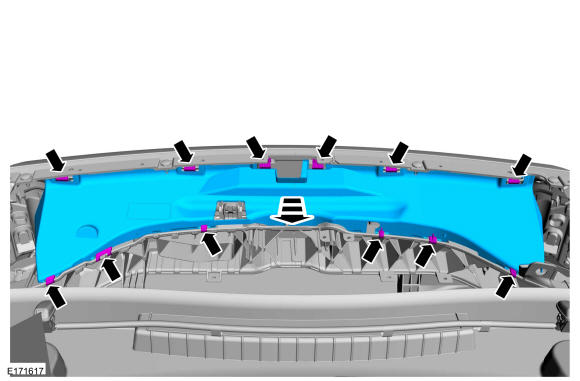

Release the retainers and remove the radiator sight shield.

Courtesy of FORD MOTOR COMPANY
Remove the front bumper cover. Refer to: Front Bumper Cover .

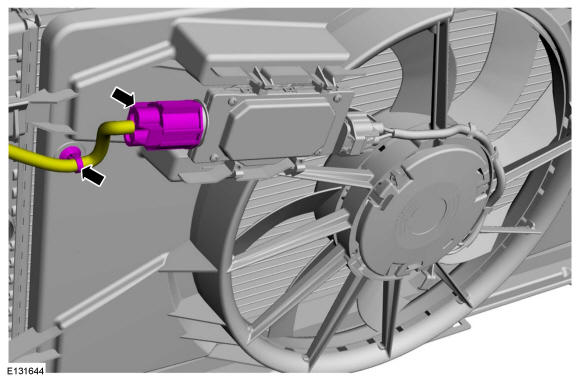

Disconnect the cooling fan motor electrical connector and detach the wiring retainer.

Courtesy of FORD MOTOR COMPANY

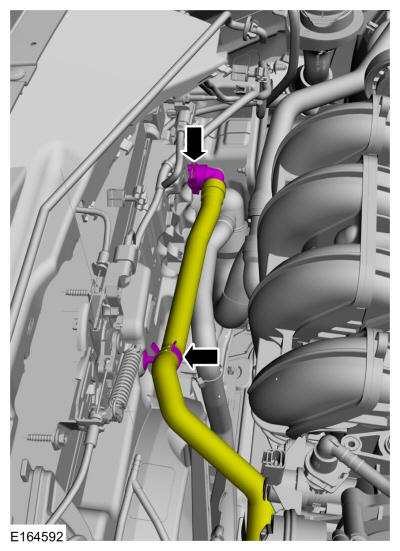

Detach the retainer, disconnect the coupling and position the coolant hose aside.

Courtesy of FORD MOTOR COMPANY

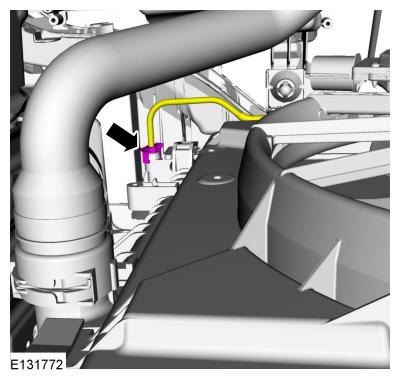

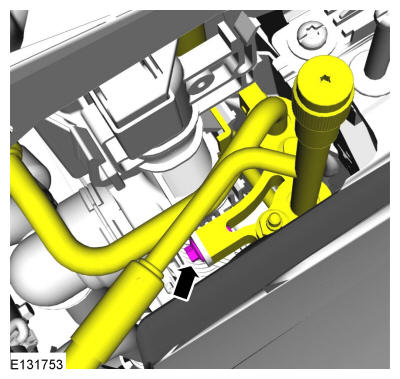

Remove the retainer and position the A/C tube assembly aside.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the radiator side air deflectors pin-type retainers.

Courtesy of FORD MOTOR COMPANY
1. Remove the radiator side air deflectors pin-type retainers.
2. Release the tab and remove the radiator side air deflectors.
Courtesy of FORD MOTOR COMPANY
NOTE: Radiator, cooling fan, and A/C condenser will lower with sub frame.
1. Remove the lower crossmember bracket bolts.
  Torque: 18 lb.ft (25 Nm)
2. Remove the bolts and the lower crossmember.
  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY

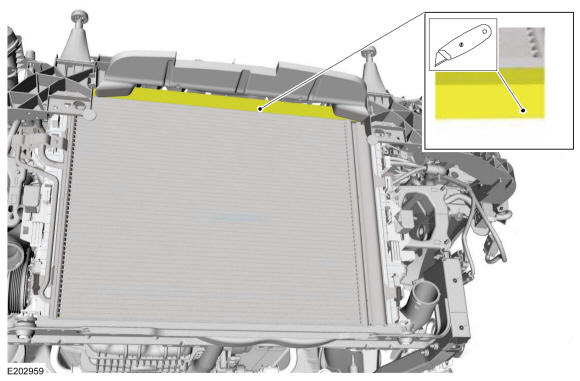

Cut the foam seal. Use the General Equipment: Knife

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that no strain is placed on the refrigerant lines.

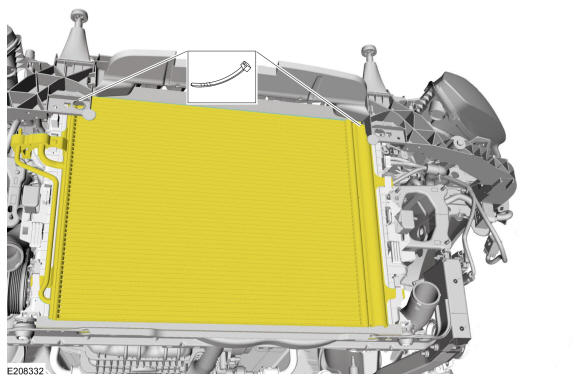

Loosely install the cable ties at both sides of the A/C condenser. Use the General Equipment: Cable Ties

Courtesy of FORD MOTOR COMPANY
Release the tabs and position the A/C condenser aside.

Courtesy of FORD MOTOR COMPANY
Depress the tabs and disconnect the coolant tube.

Courtesy of FORD MOTOR COMPANY
- Disconnect the coolant hoses quick connect couplings.
- Detach the retainers and remove the radiator.

Courtesy of FORD MOTOR COMPANY
