Coolant Pump: Removal
- Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
- Loosen the coolant pump pulley bolts.
- Remove the accessory drive belt.

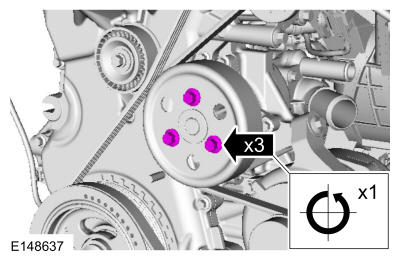

- Remove the bolts and the coolant pump pulley.
-
NOTE: Cover the A/C compressor belt to prevent coolant contamination of the belt.
Completely cover the A/C compressor belt with waterproof plastic.
- Remove the bolts and the coolant pump.
