Wipers And Washers
Wipers And Washers

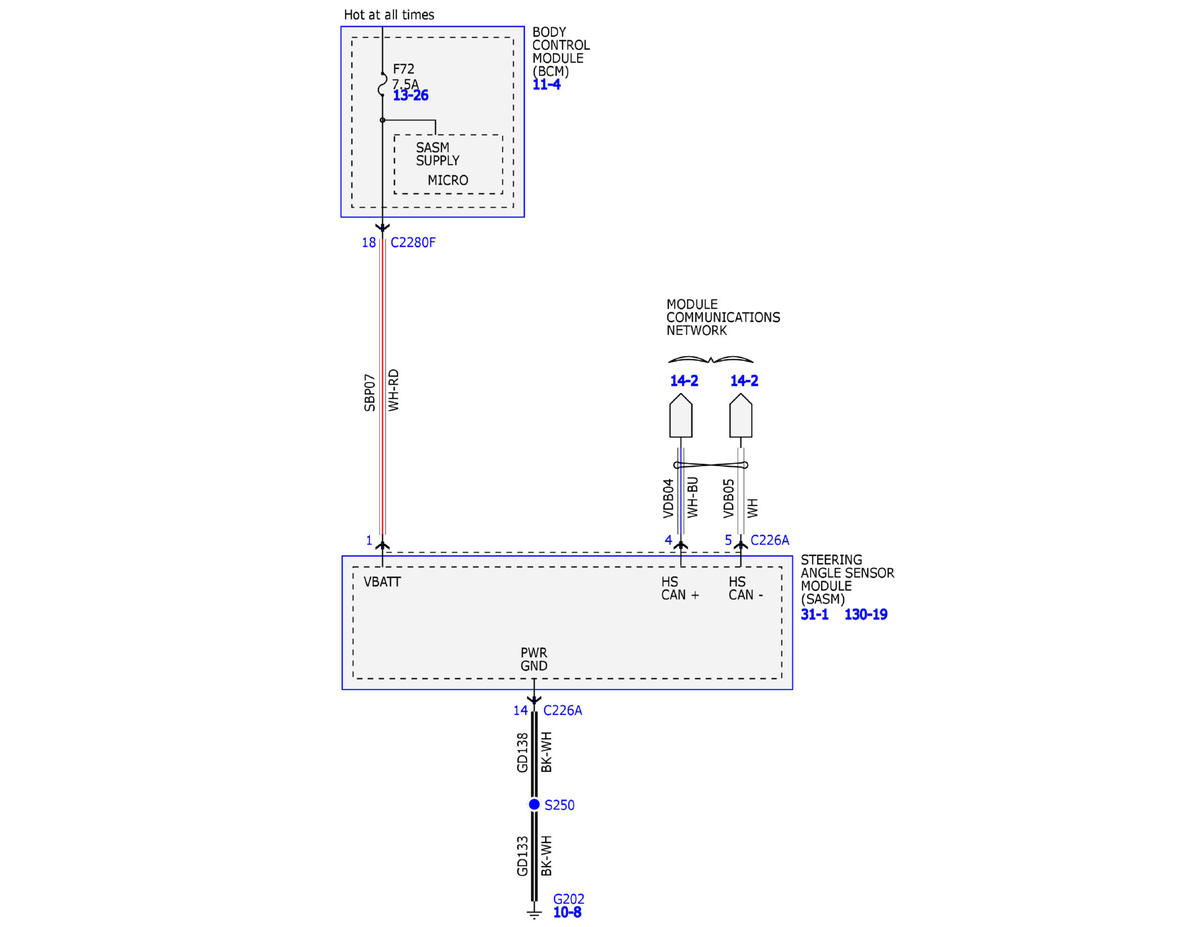

Fig 1: Wipers and Washers Wiring Diagram (1 of 7)
Courtesy of FORD MOTOR COMPANY

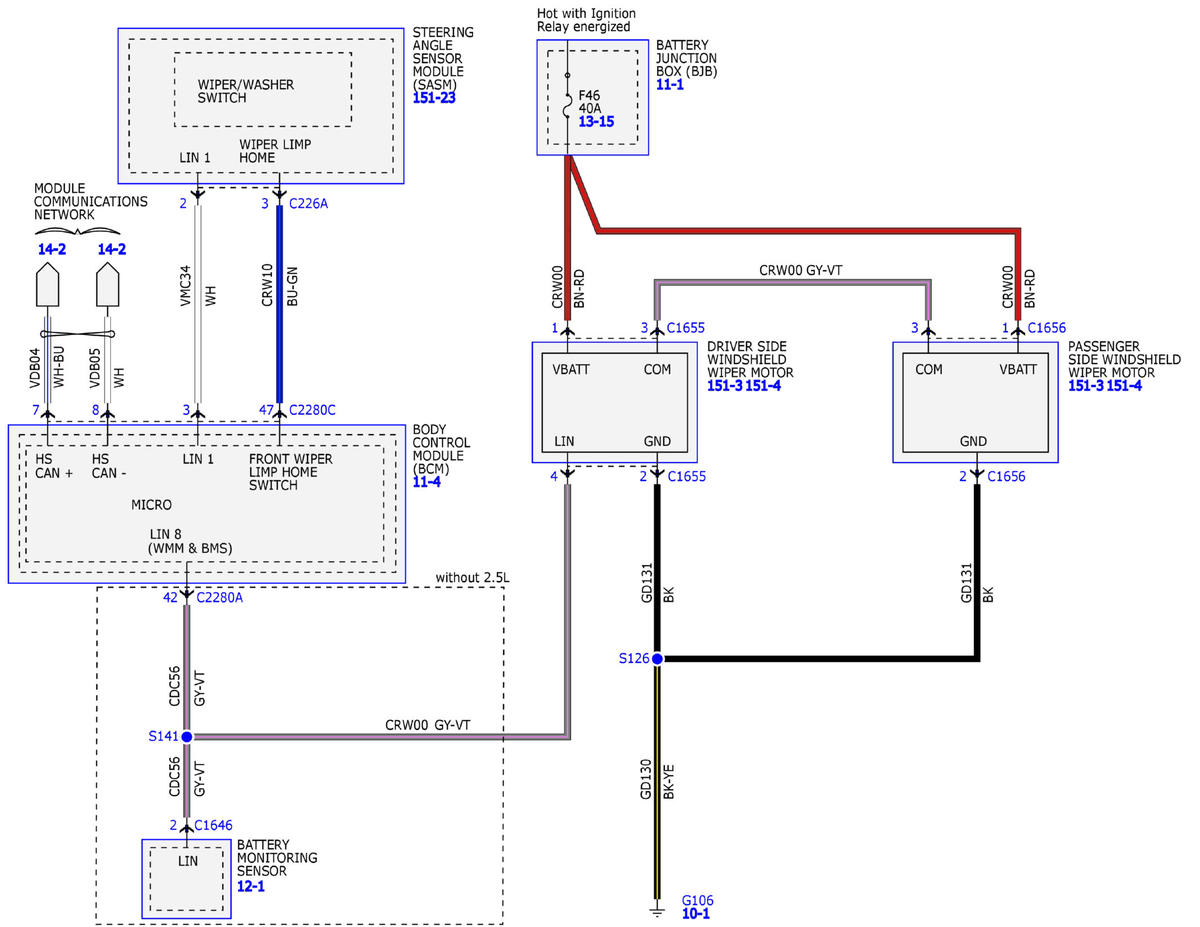

Fig 2: Wipers and Washers Wiring Diagram (2 of 7)
Courtesy of FORD MOTOR COMPANY

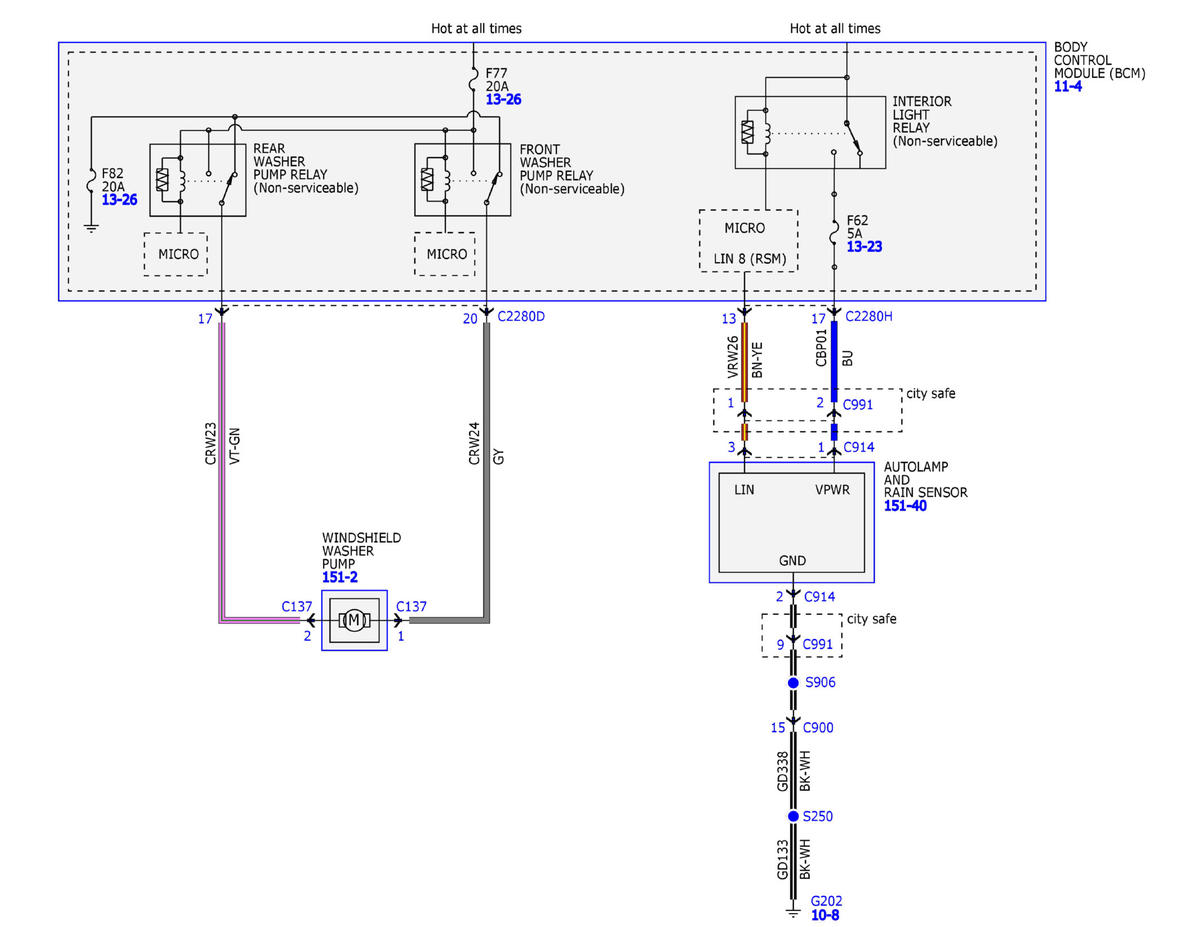

Fig 3: Wipers and Washers Wiring Diagram (3 of 7)
Courtesy of FORD MOTOR COMPANY

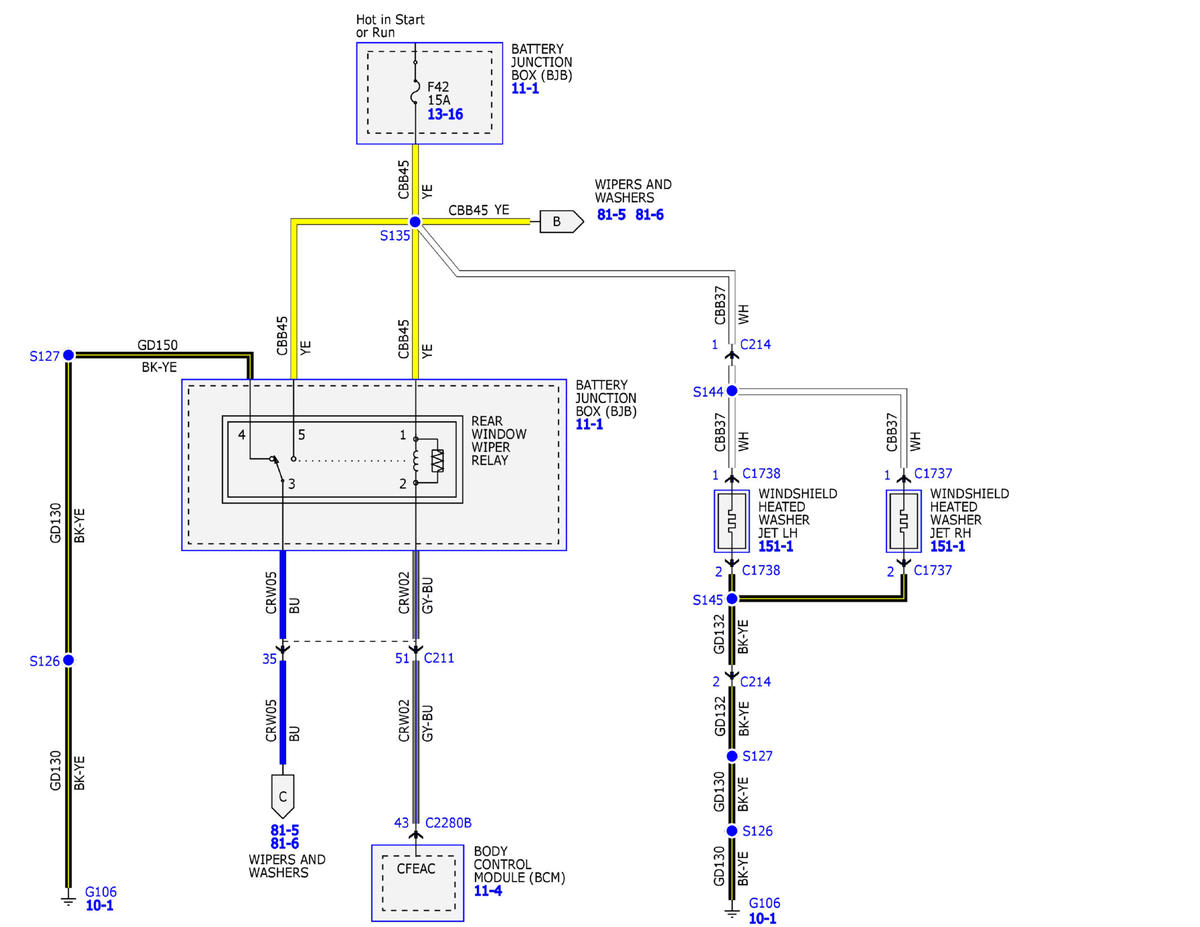

Fig 4: Wipers and Washers Wiring Diagram (4 of 7)
Courtesy of FORD MOTOR COMPANY

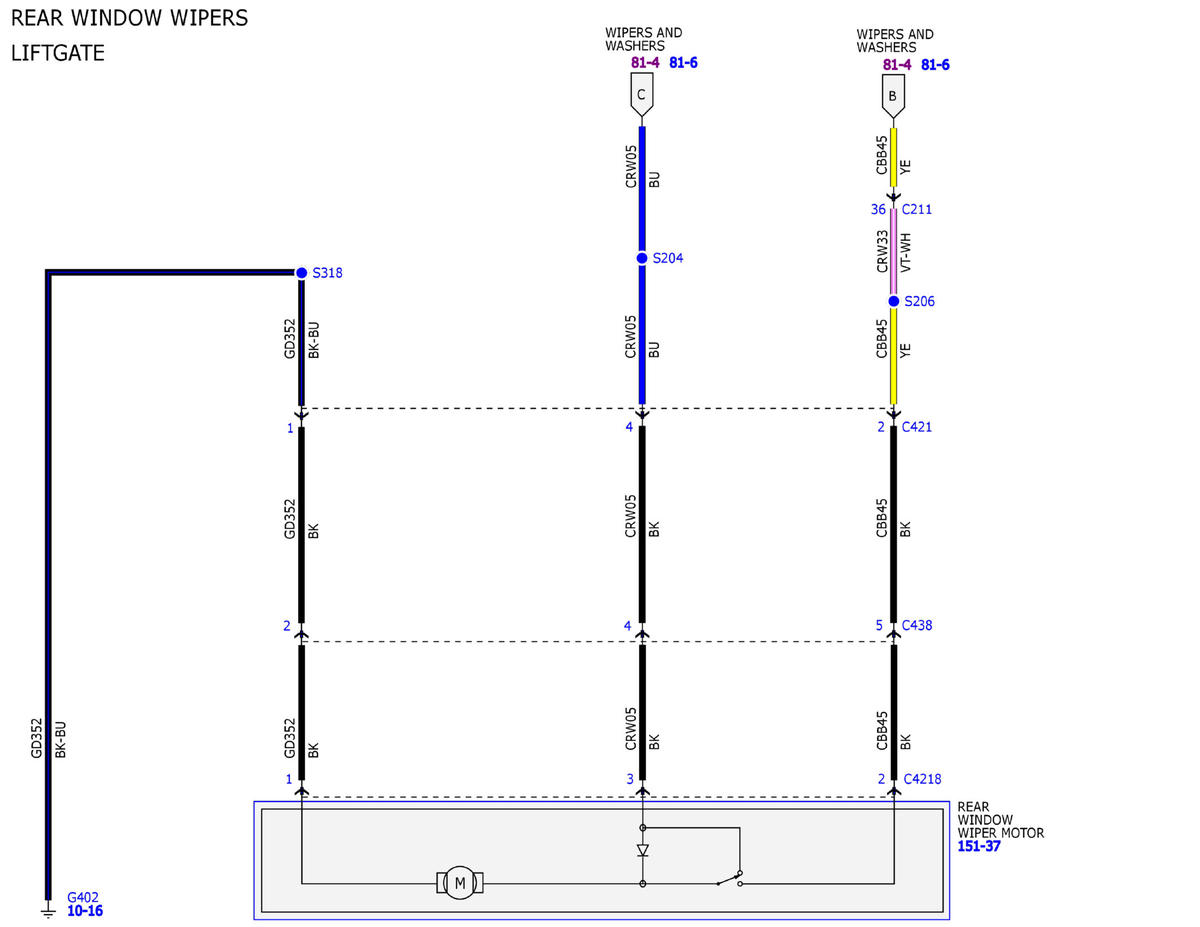

Fig 5: Wipers and Washers Wiring Diagram (5 of 7)
Courtesy of FORD MOTOR COMPANY

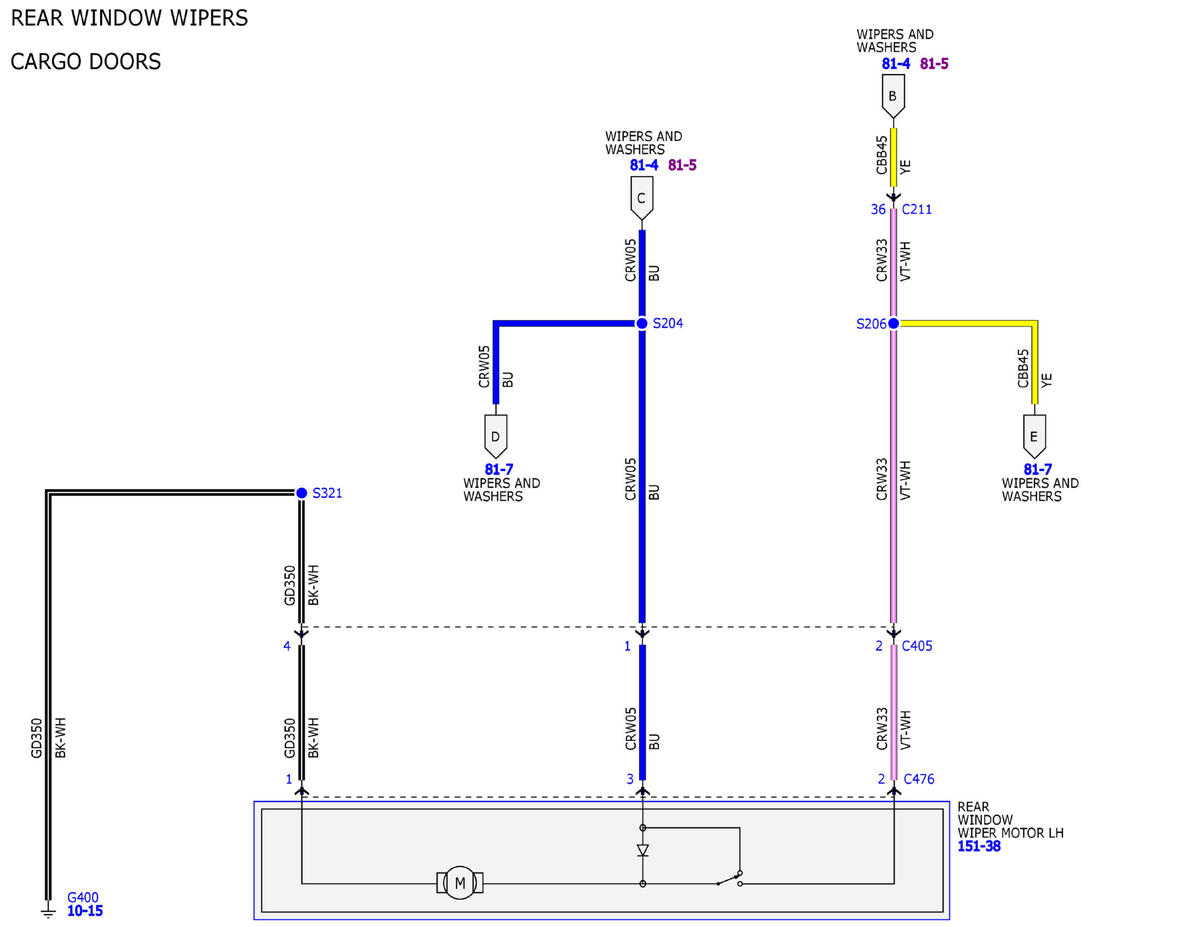

Fig 6: Wipers and Washers Wiring Diagram (6 of 7)
Courtesy of FORD MOTOR COMPANY

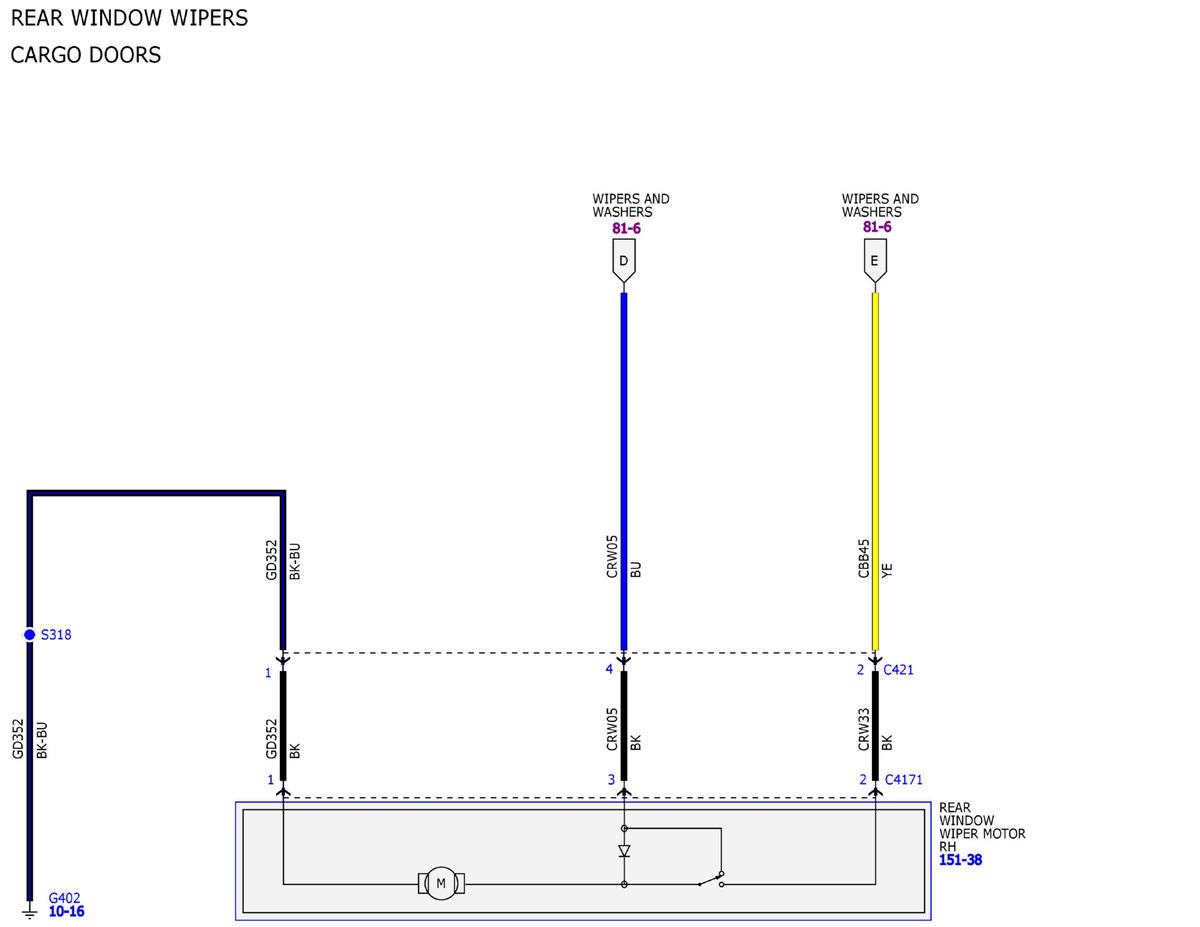

Fig 7: Wipers and Washers Wiring Diagram (7 of 7)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
