Trailer/Camper Adapter

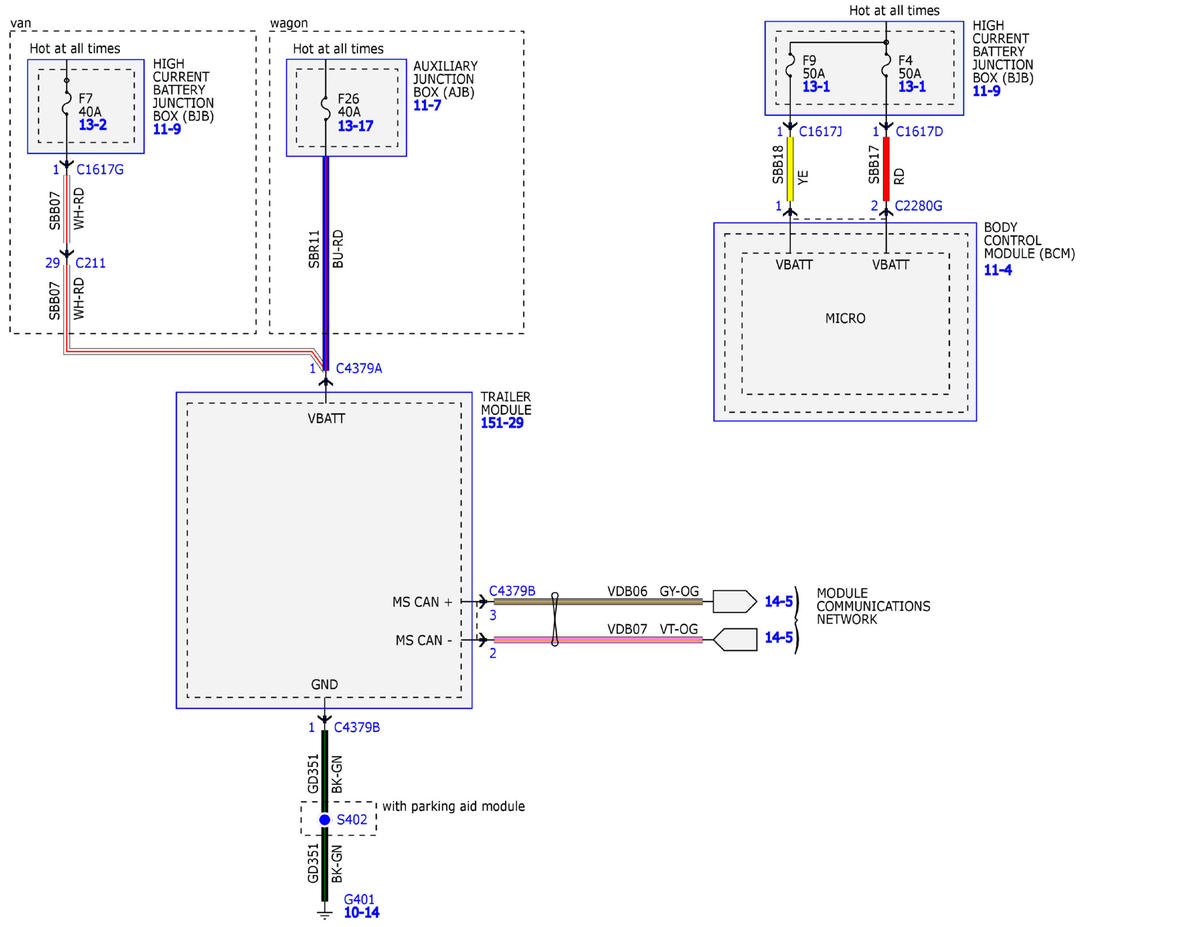

Fig 1: Trailer/Camper Adapter Wiring Diagram (1 of 3)
GFDW85898Courtesy of FORD MOTOR COMPANY

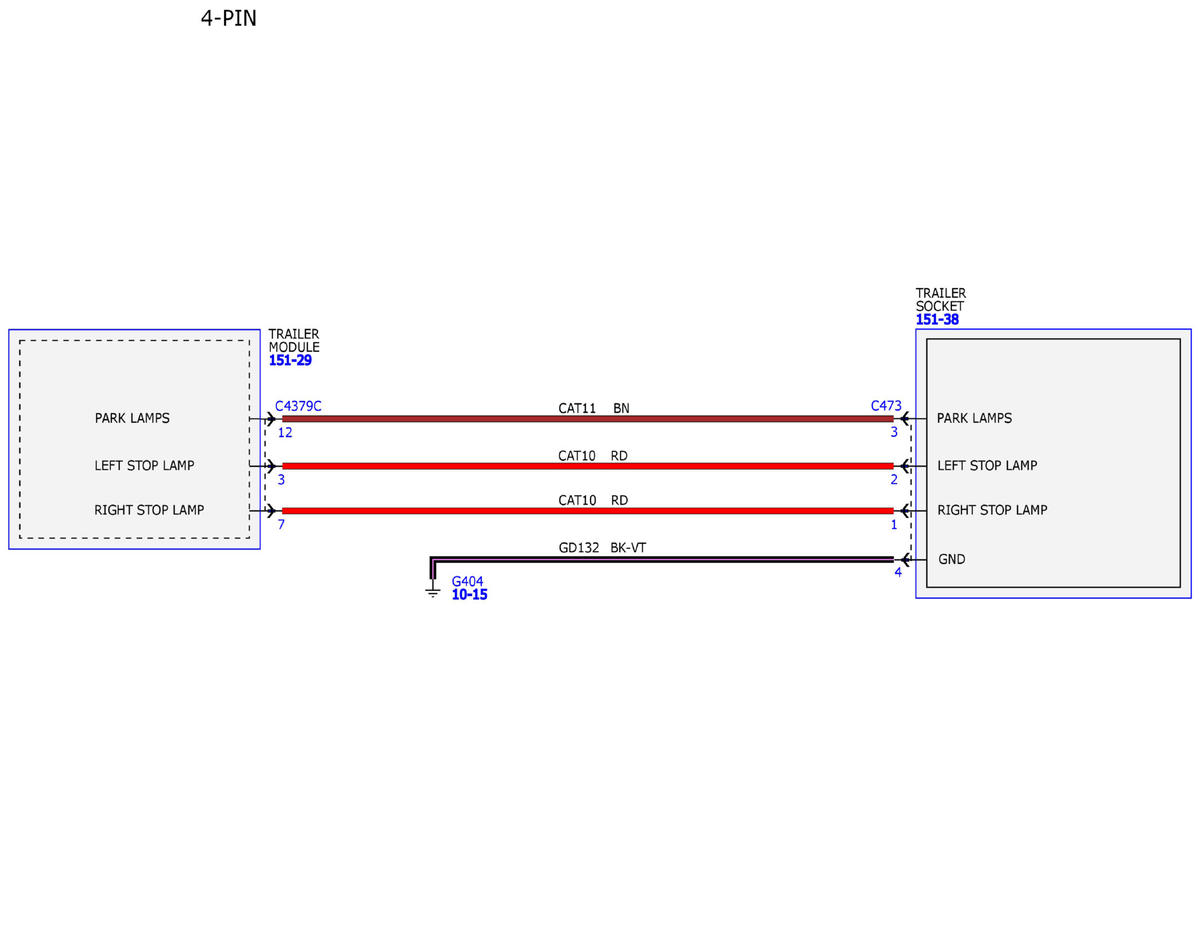

Fig 2: Trailer/Camper Adapter Wiring Diagram (2 of 3)
GFDW85899Courtesy of FORD MOTOR COMPANY

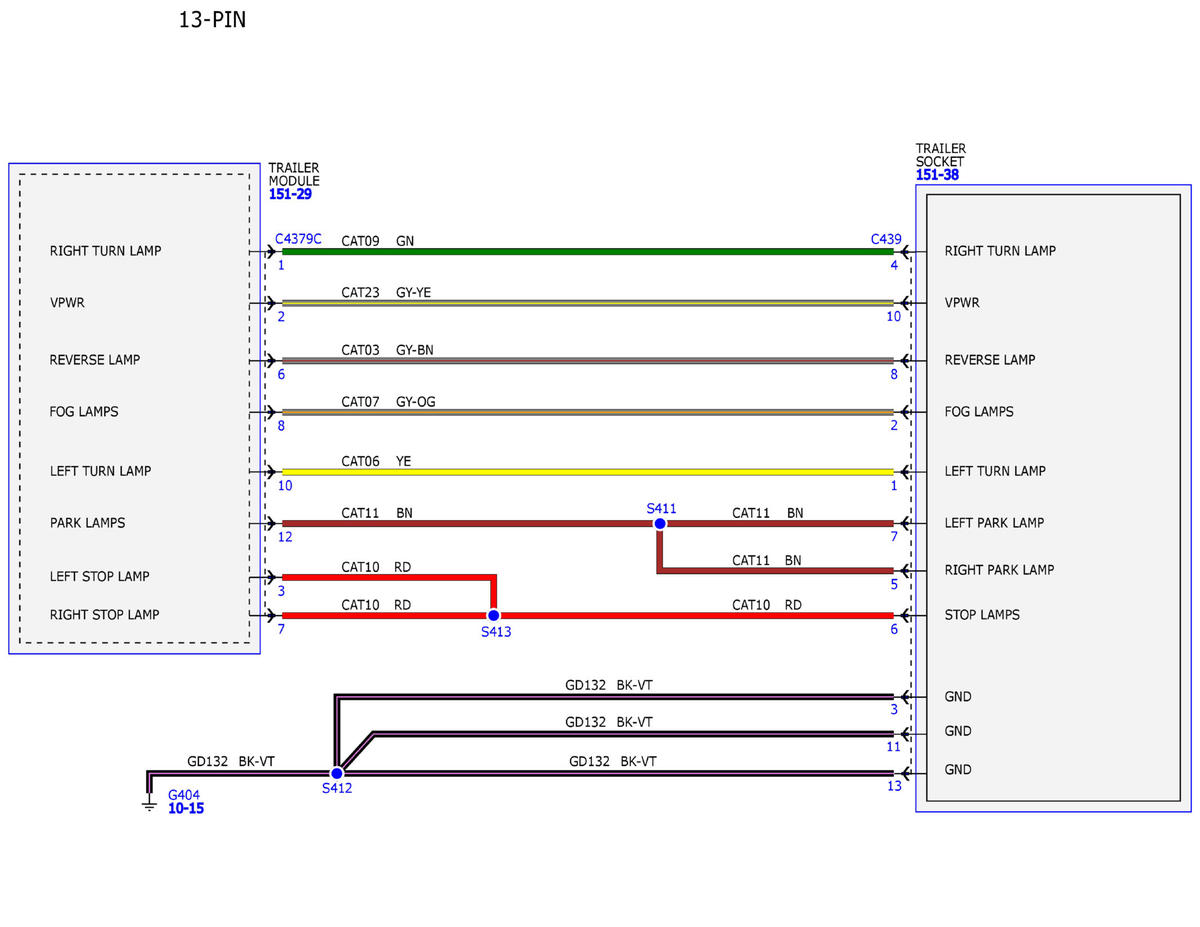

Fig 3: Trailer/Camper Adapter Wiring Diagram (3 of 3)
GFDW85900Courtesy of FORD MOTOR COMPANY
