Power Door Locks

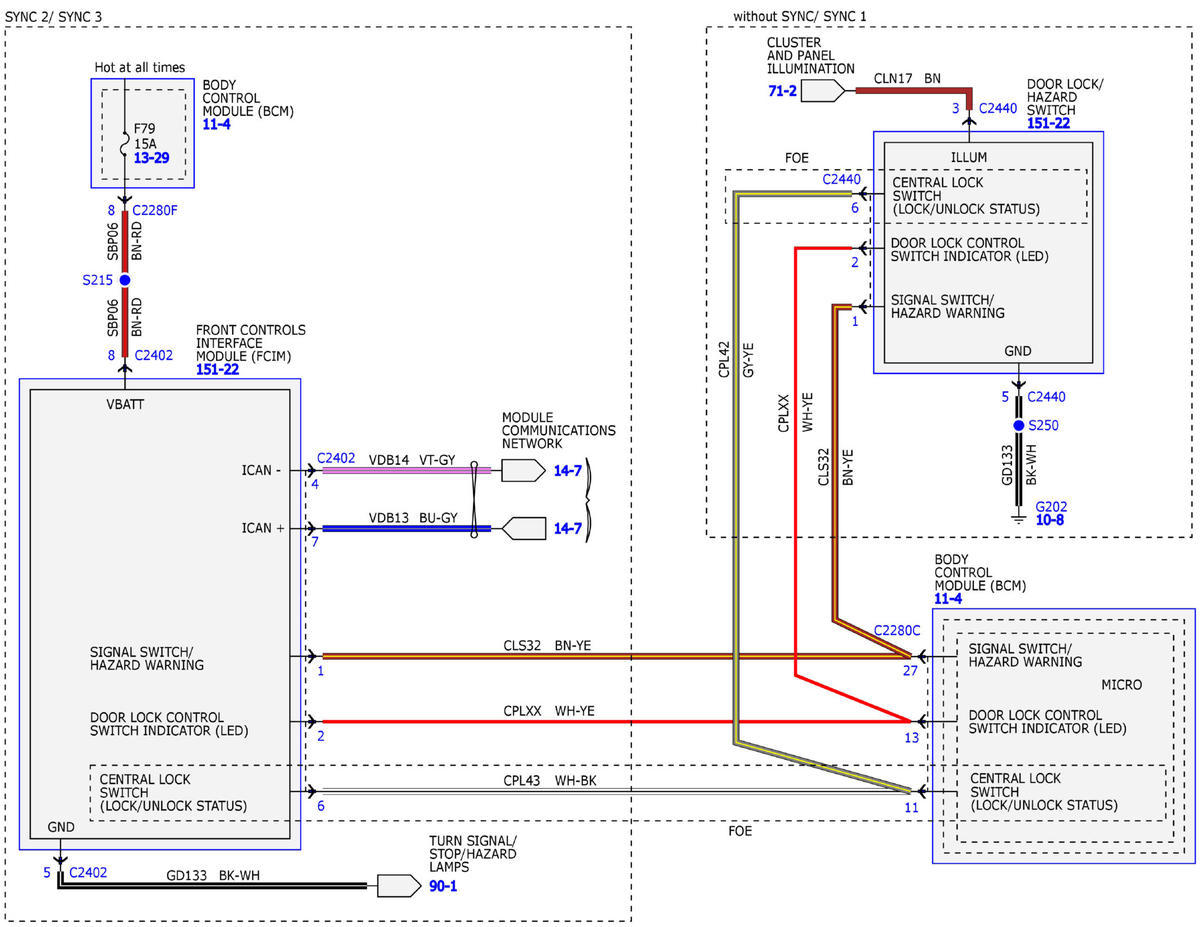

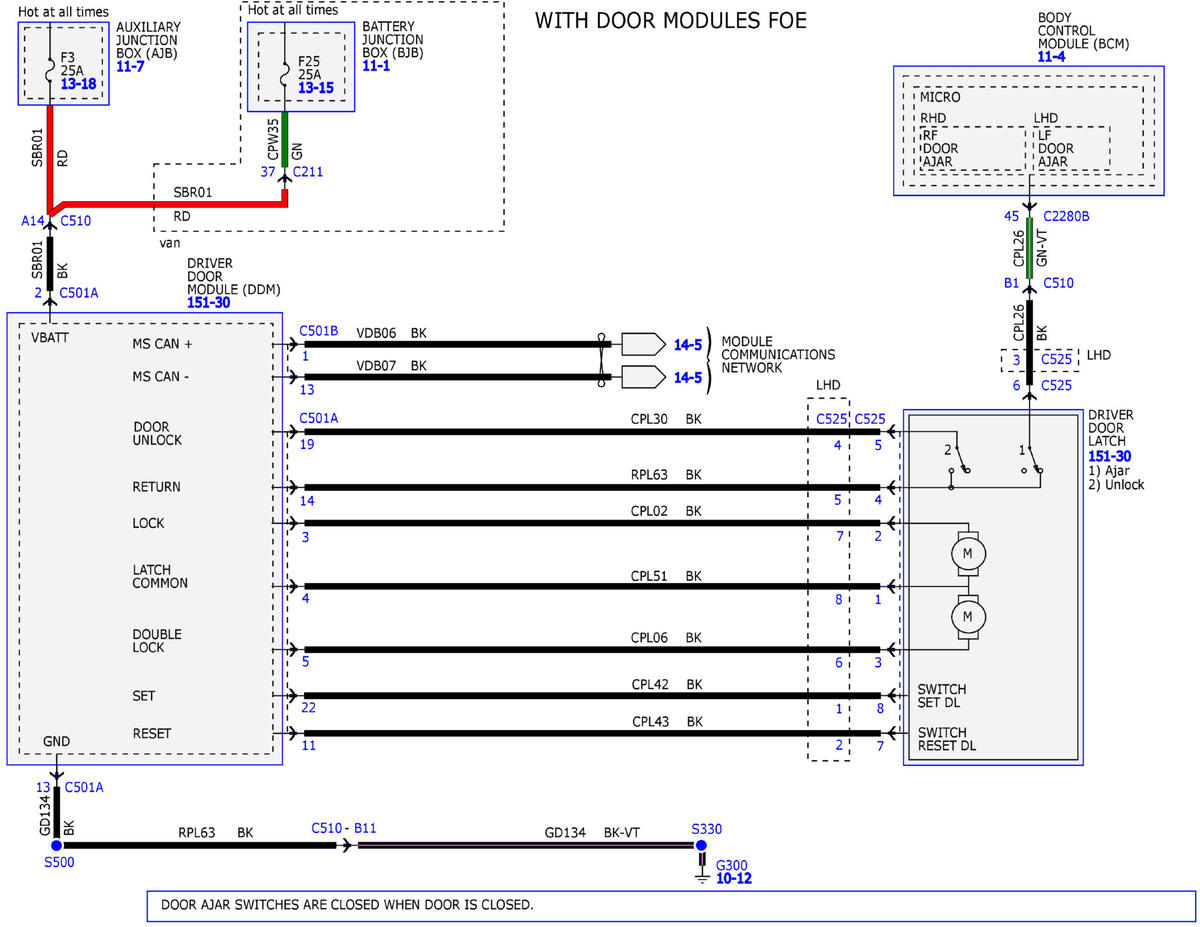

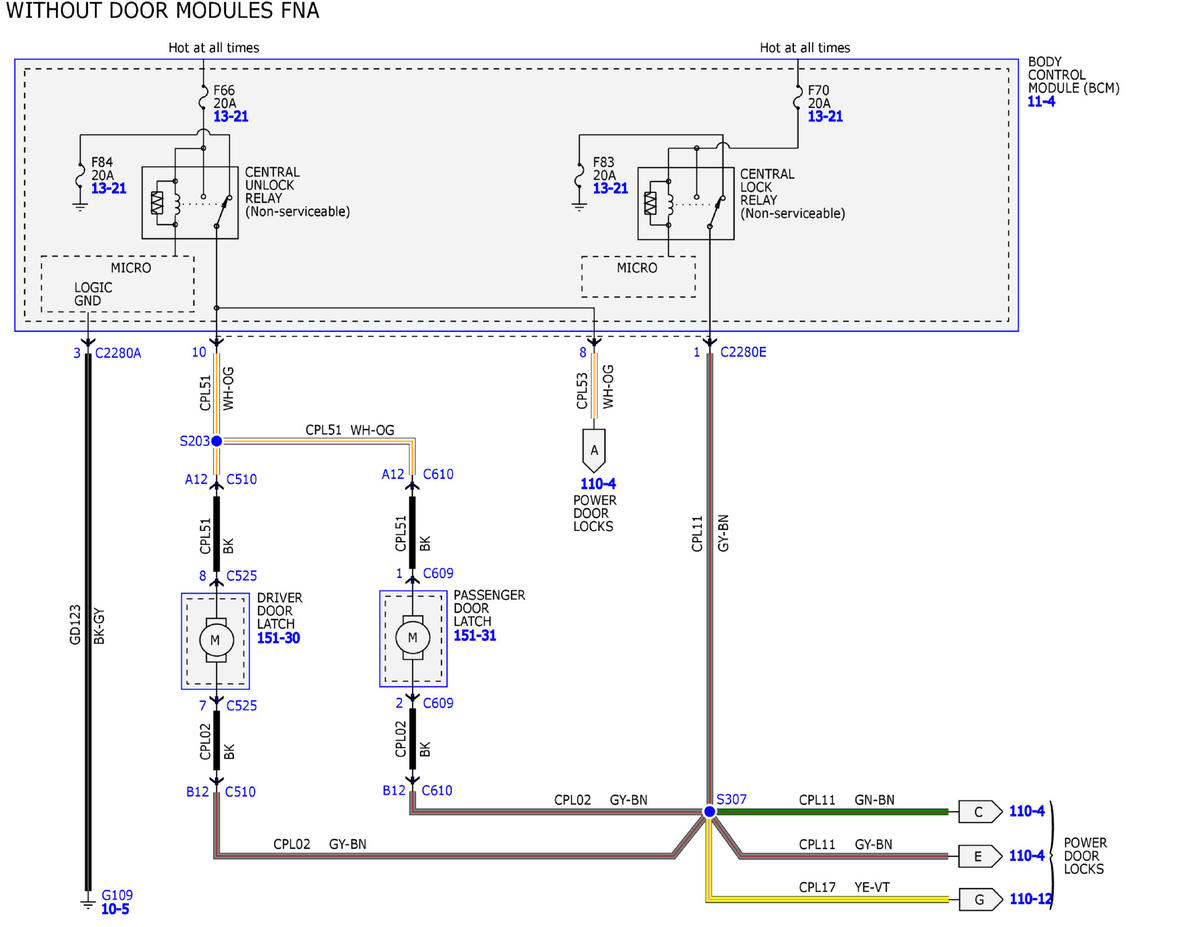

Fig 1: Power Door Locks Wiring Diagram (1 of 18)

Courtesy of FORD MOTOR COMPANY

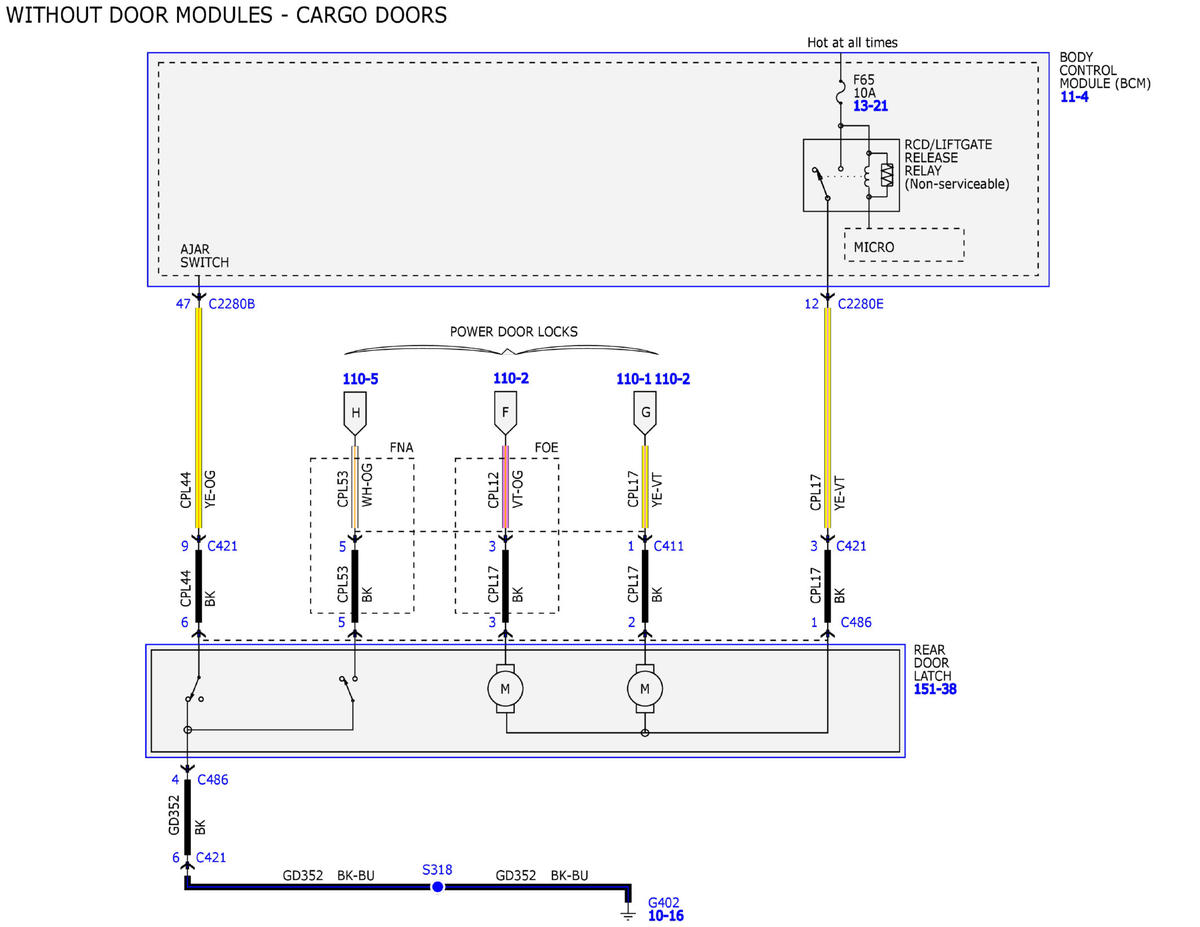

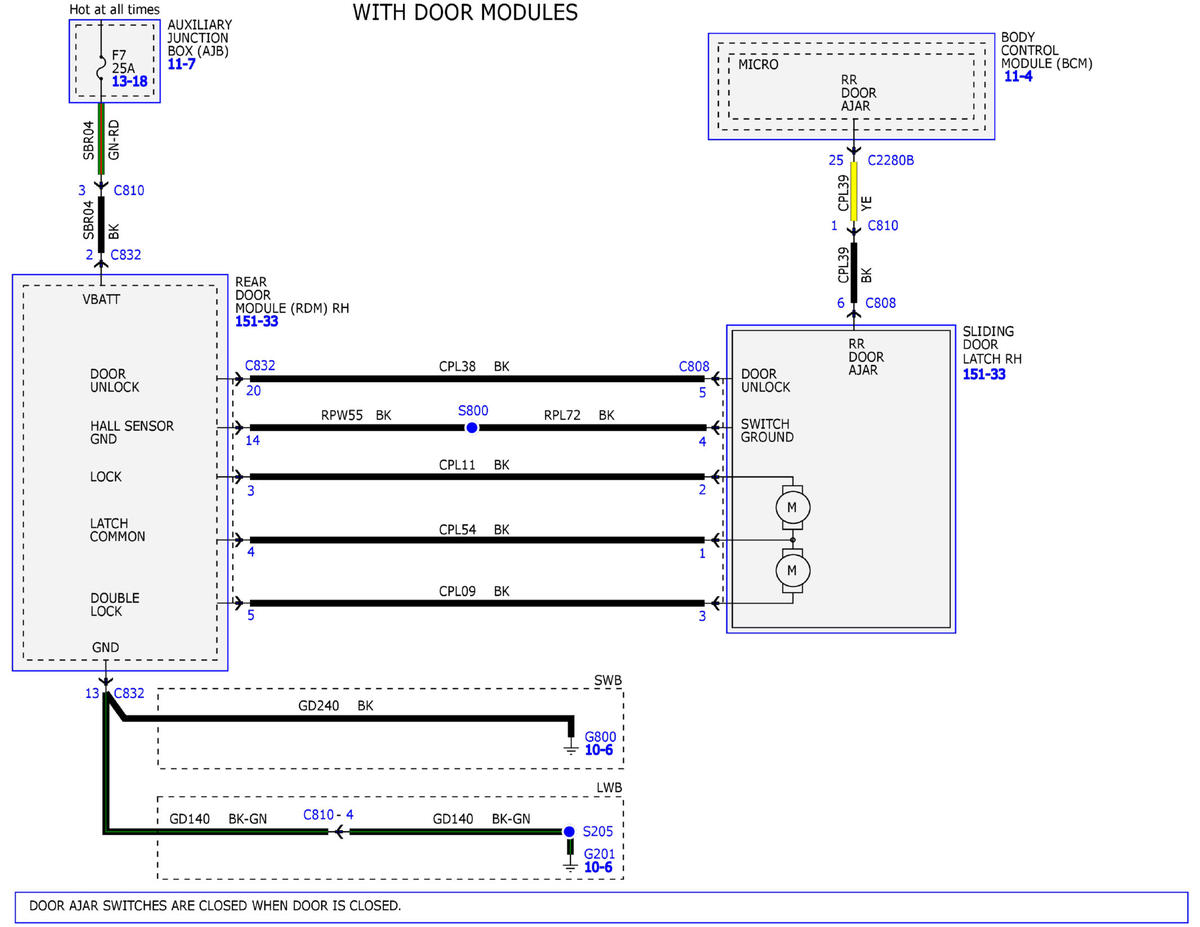

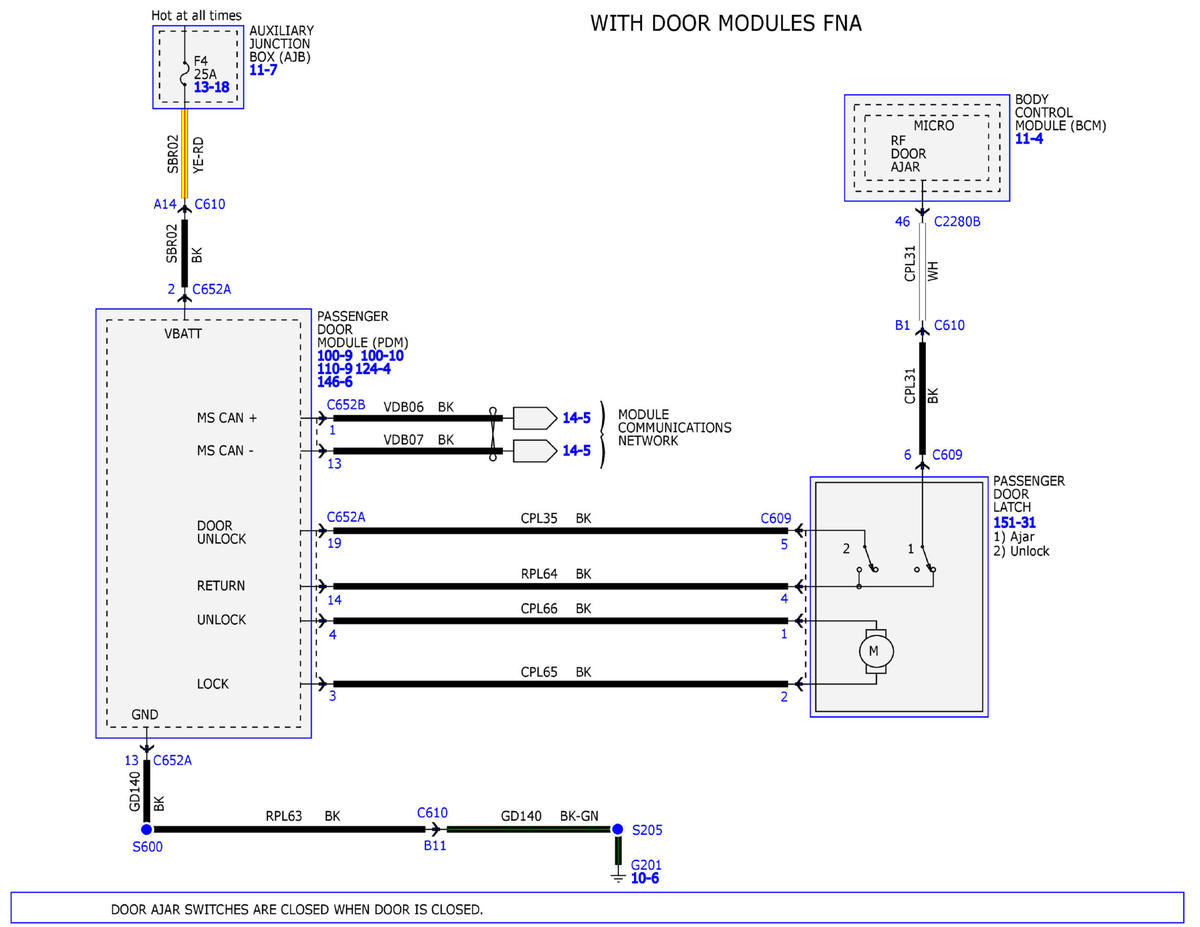

Fig 2: Power Door Locks Wiring Diagram (2 of 18)

Courtesy of FORD MOTOR COMPANY

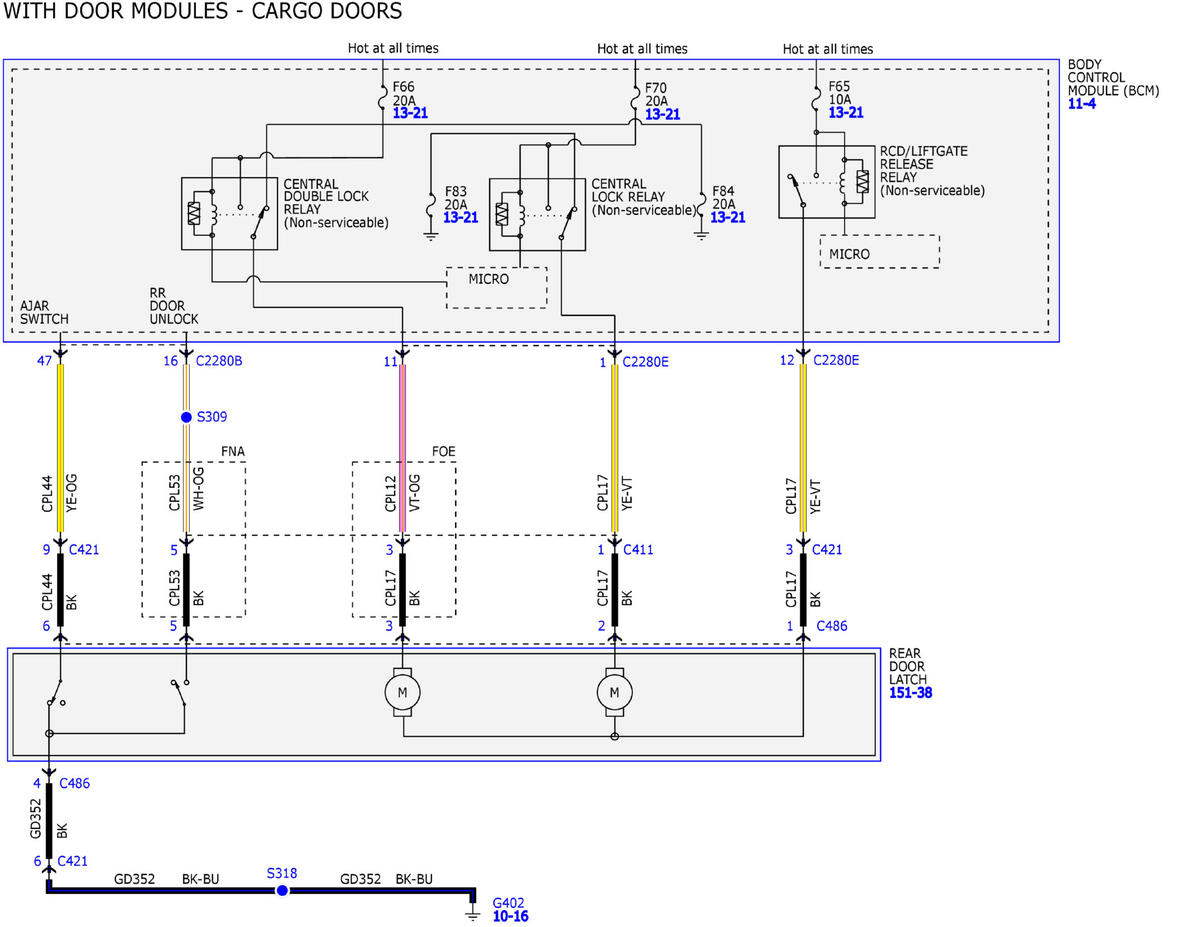

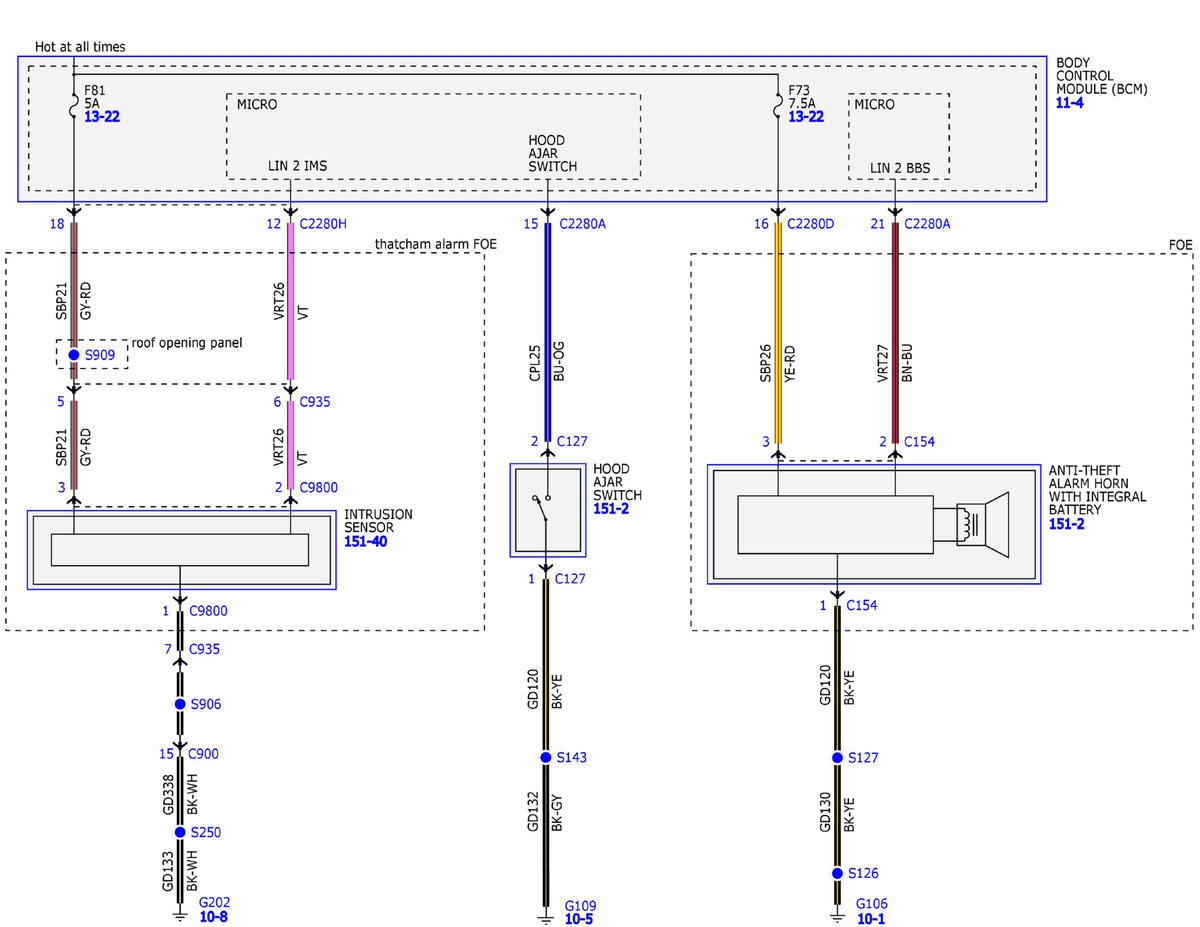

Fig 3: Power Door Locks Wiring Diagram (3 of 18)

Courtesy of FORD MOTOR COMPANY

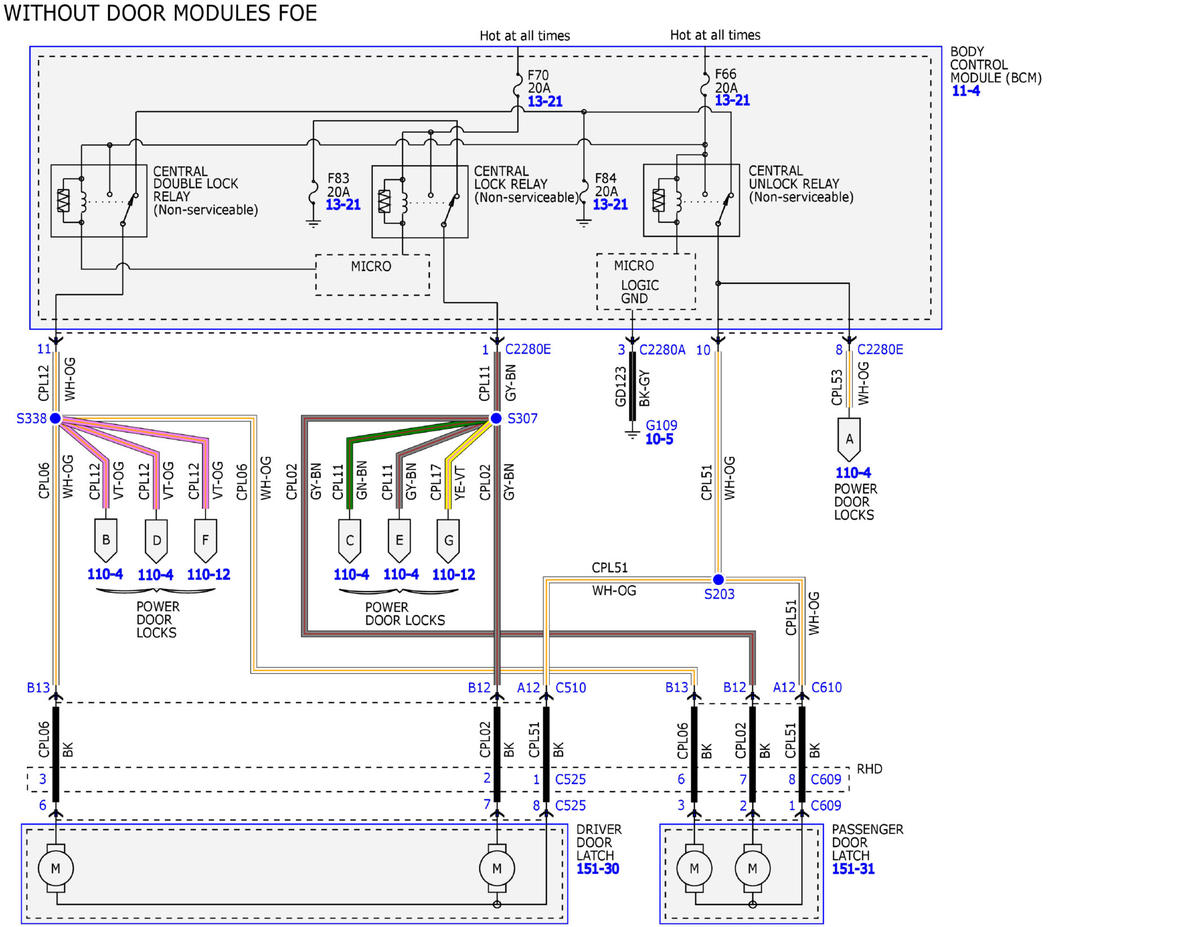

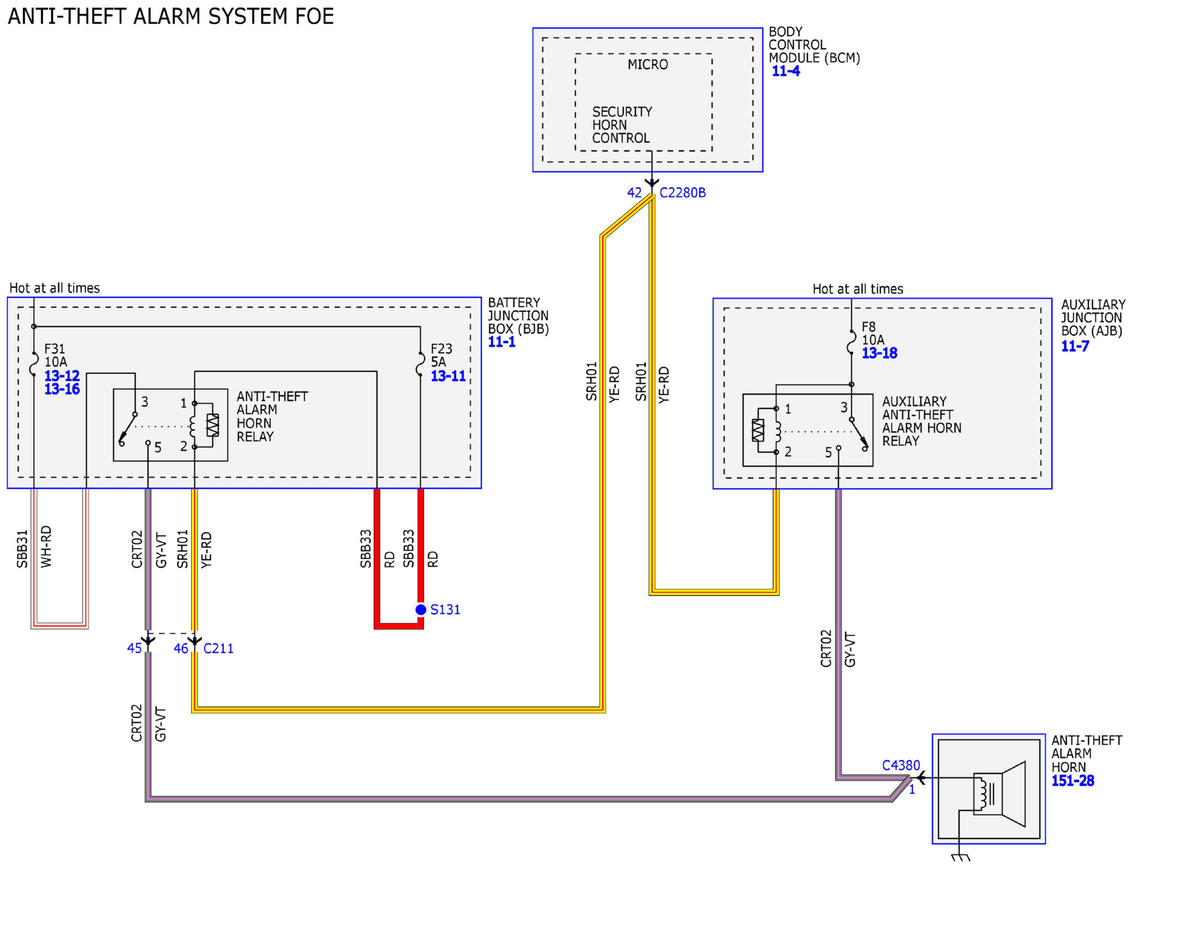

Fig 4: Power Door Locks Wiring Diagram (4 of 18)

Courtesy of FORD MOTOR COMPANY

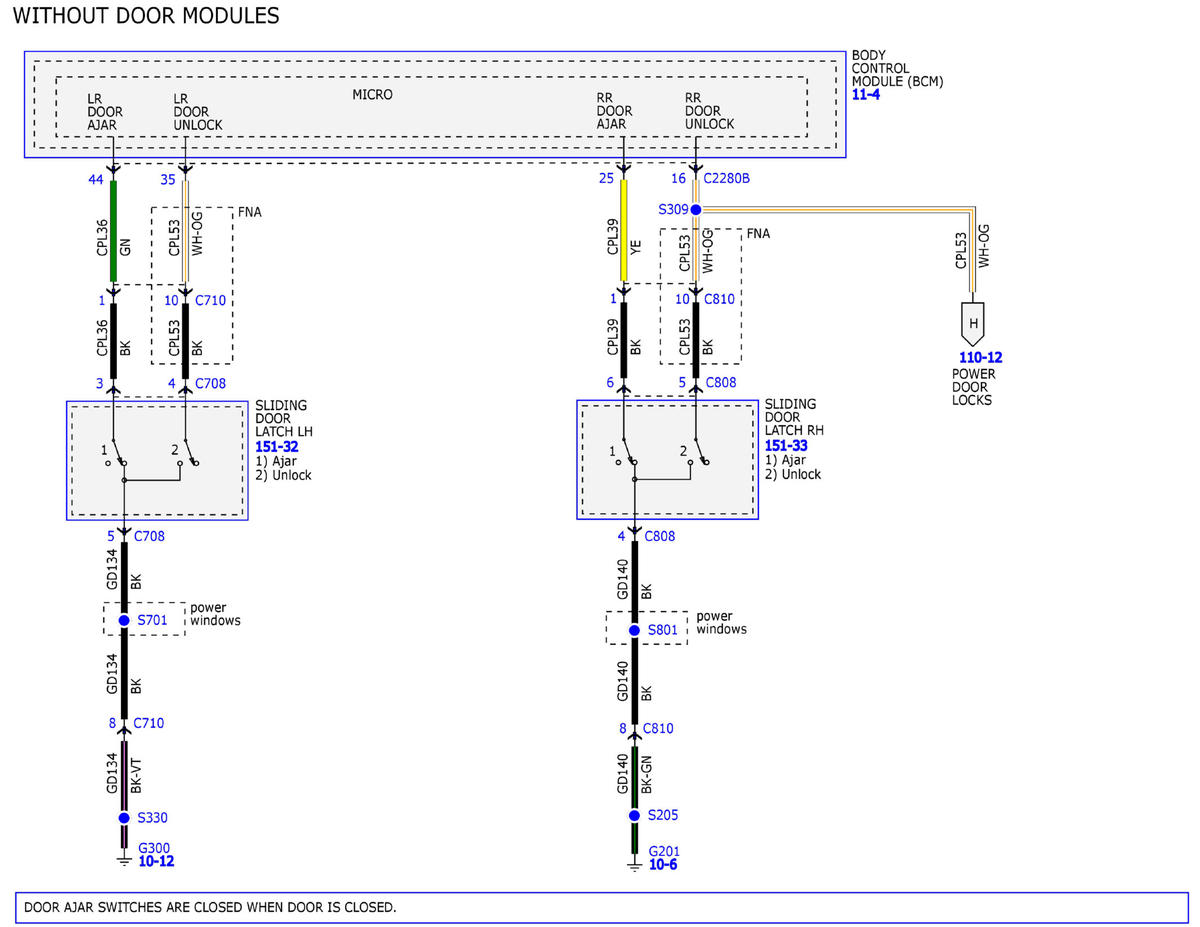

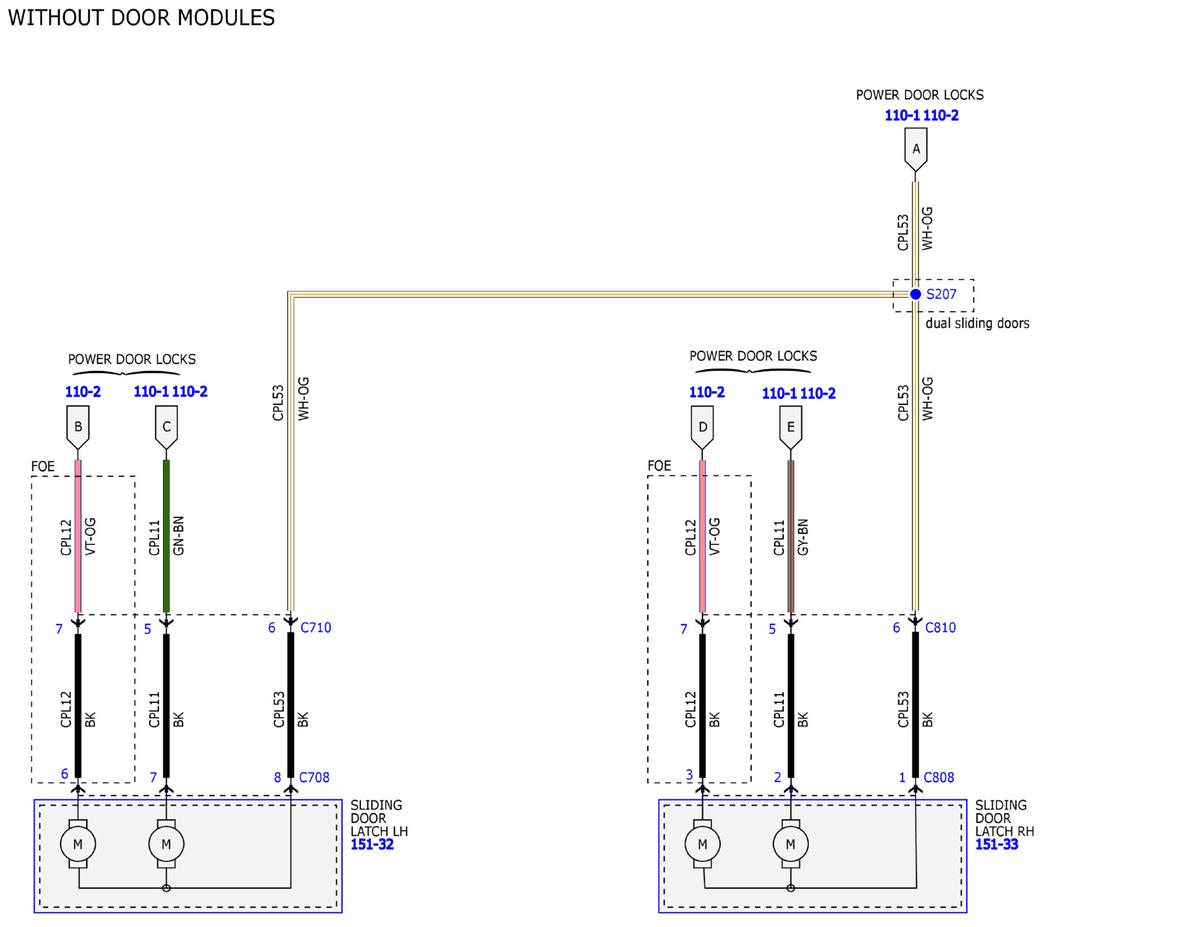

Fig 5: Power Door Locks Wiring Diagram (5 of 18)

Courtesy of FORD MOTOR COMPANY

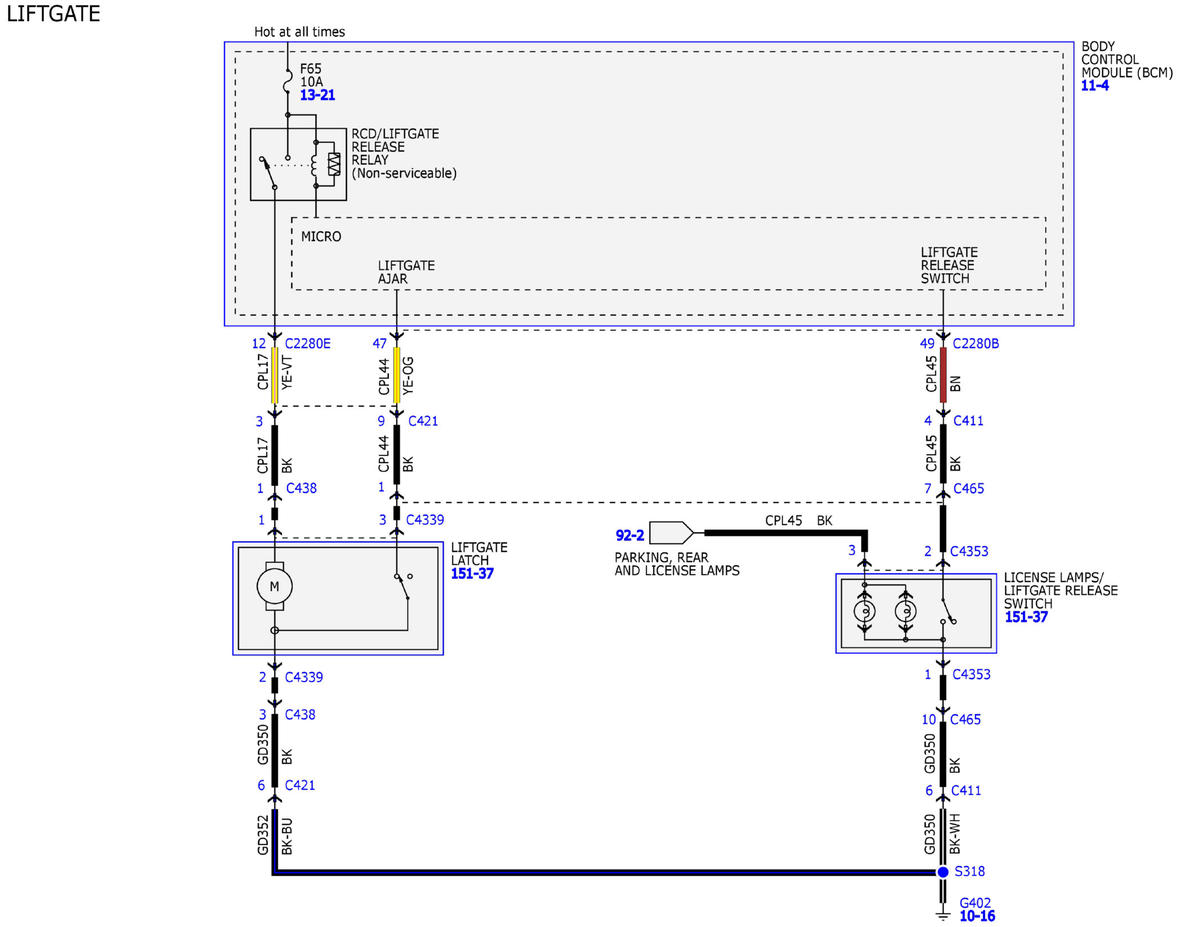

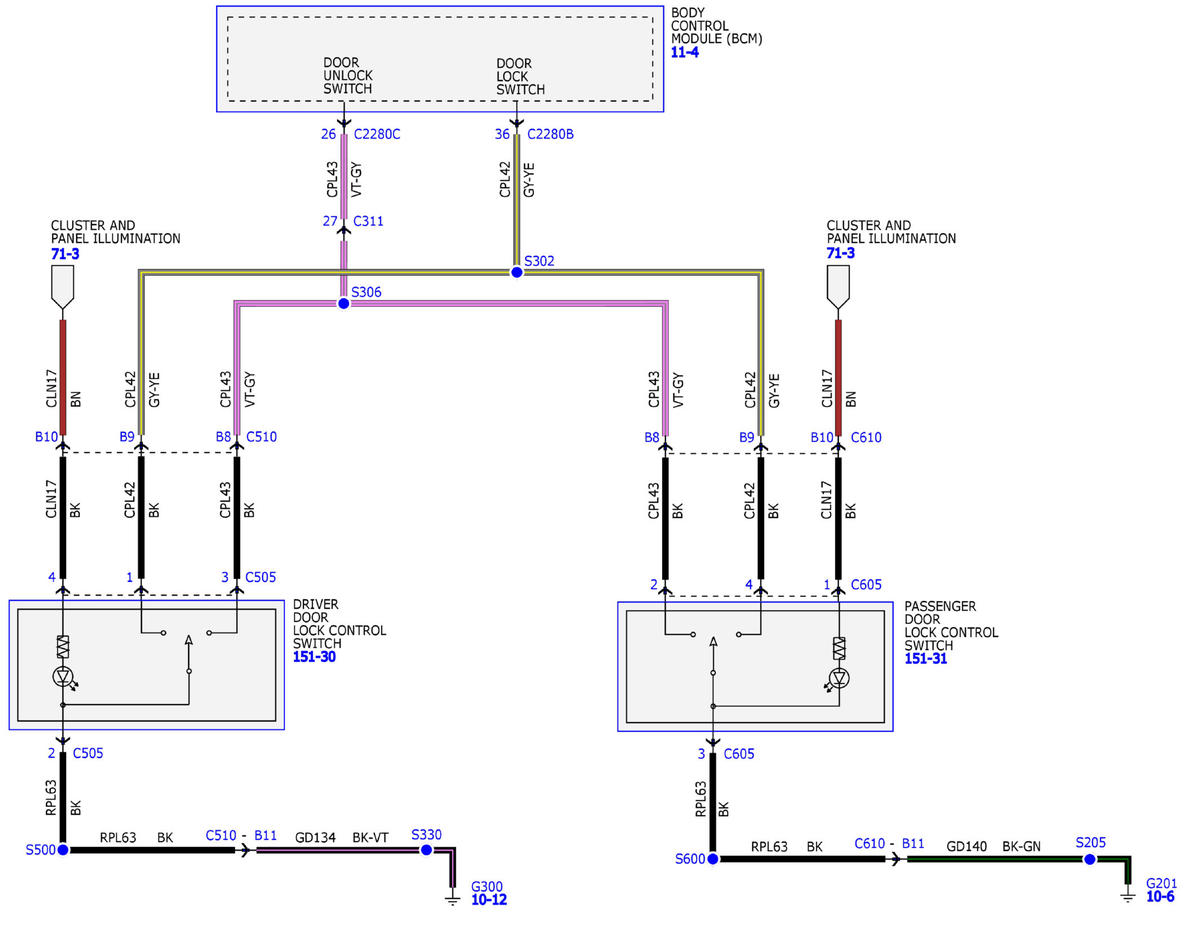

Fig 6: Power Door Locks Wiring Diagram (6 of 18)

Courtesy of FORD MOTOR COMPANY

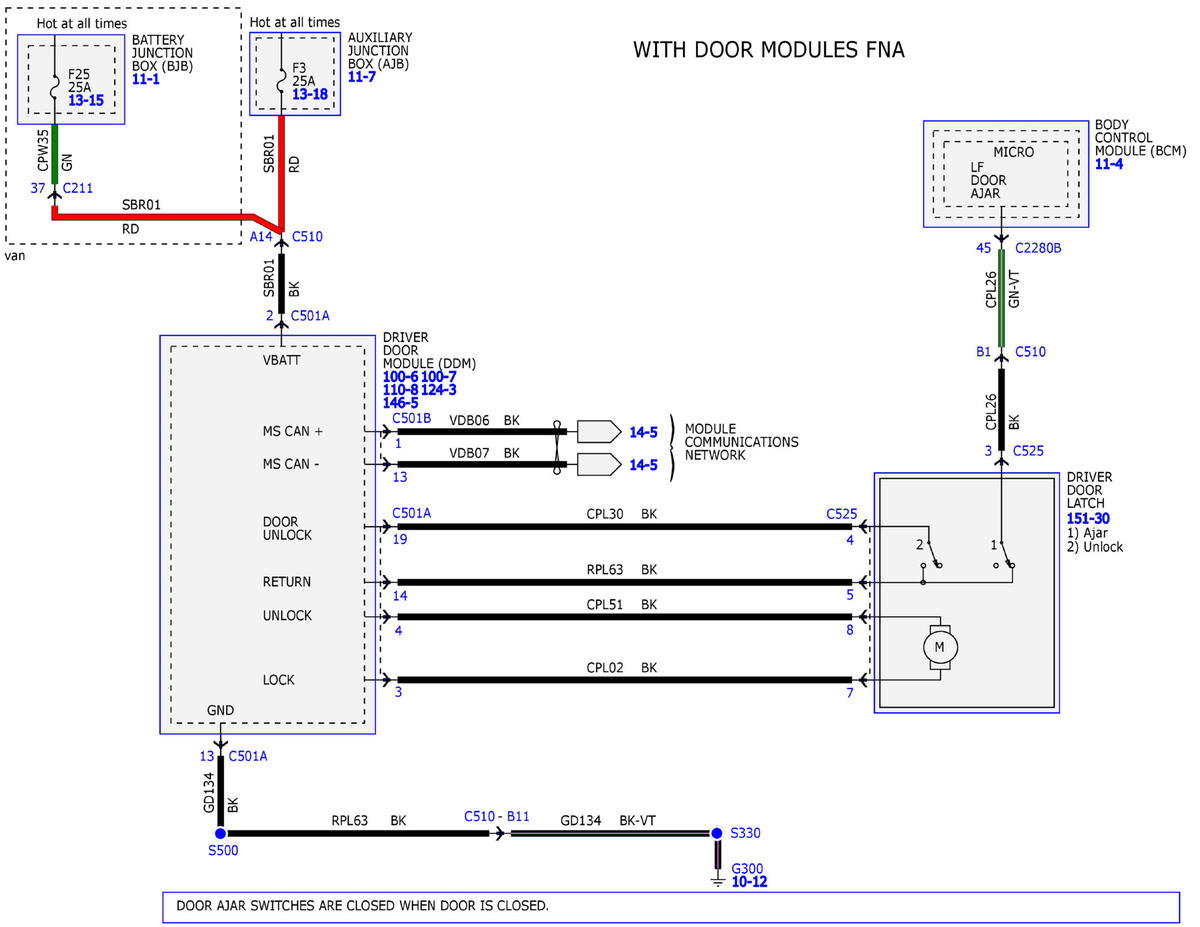

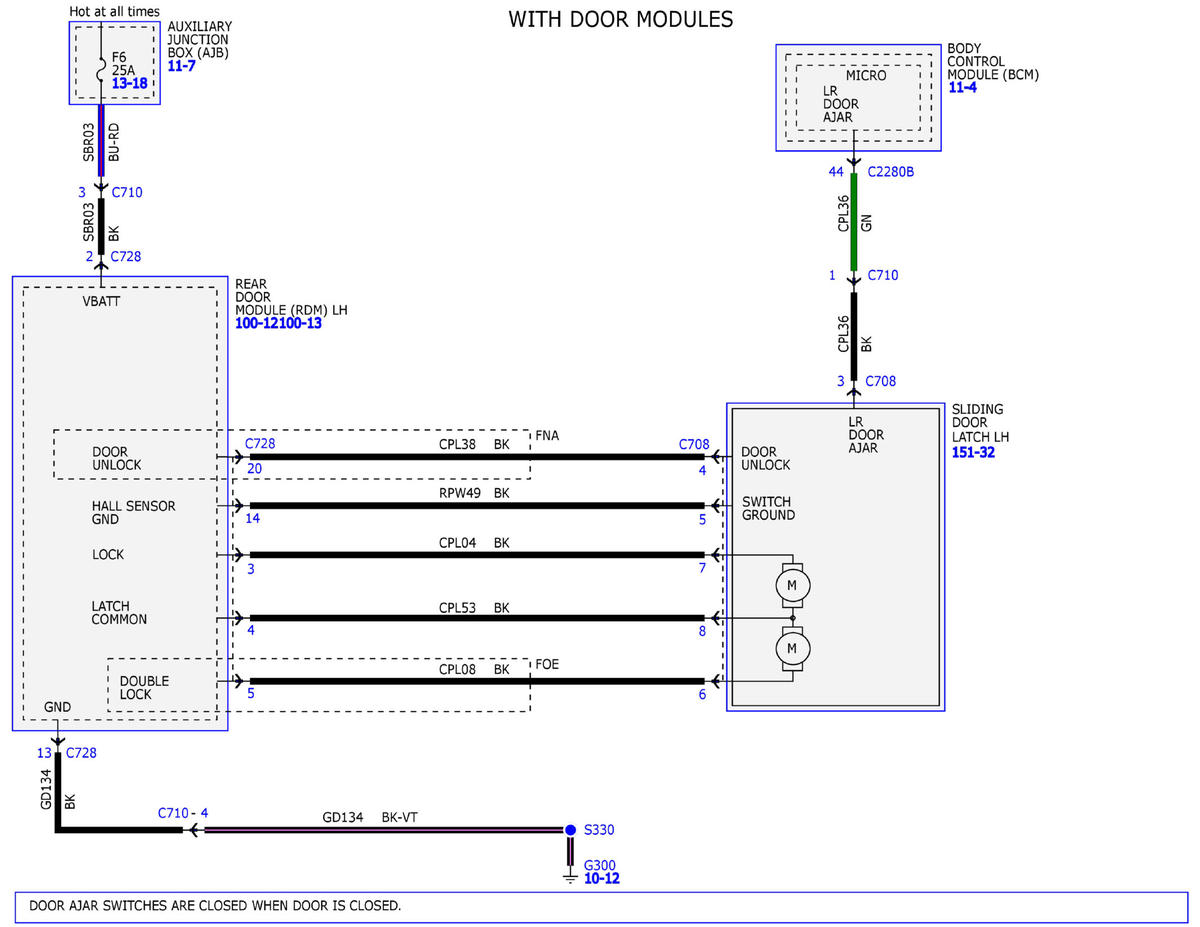

Fig 7: Power Door Locks Wiring Diagram (7 of 18)

Courtesy of FORD MOTOR COMPANY

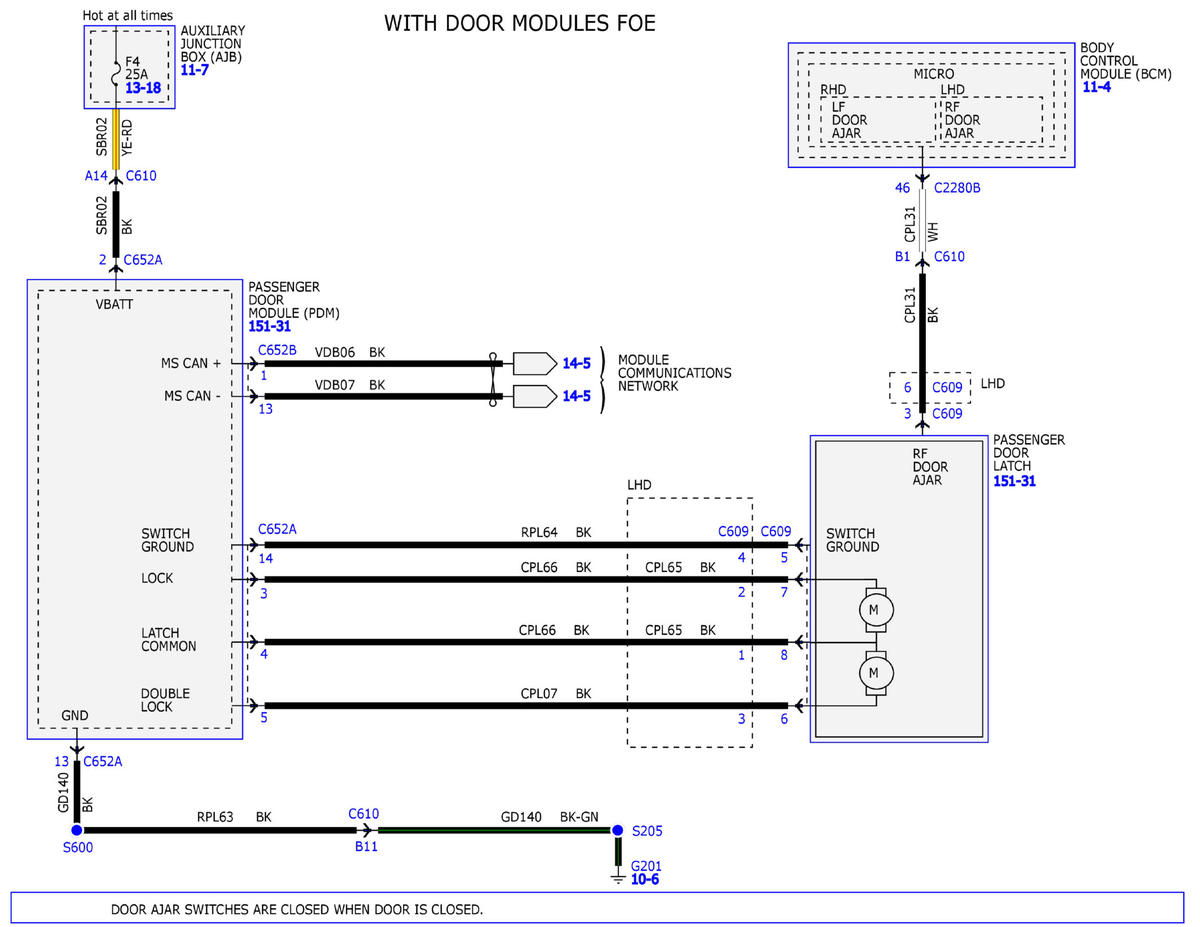

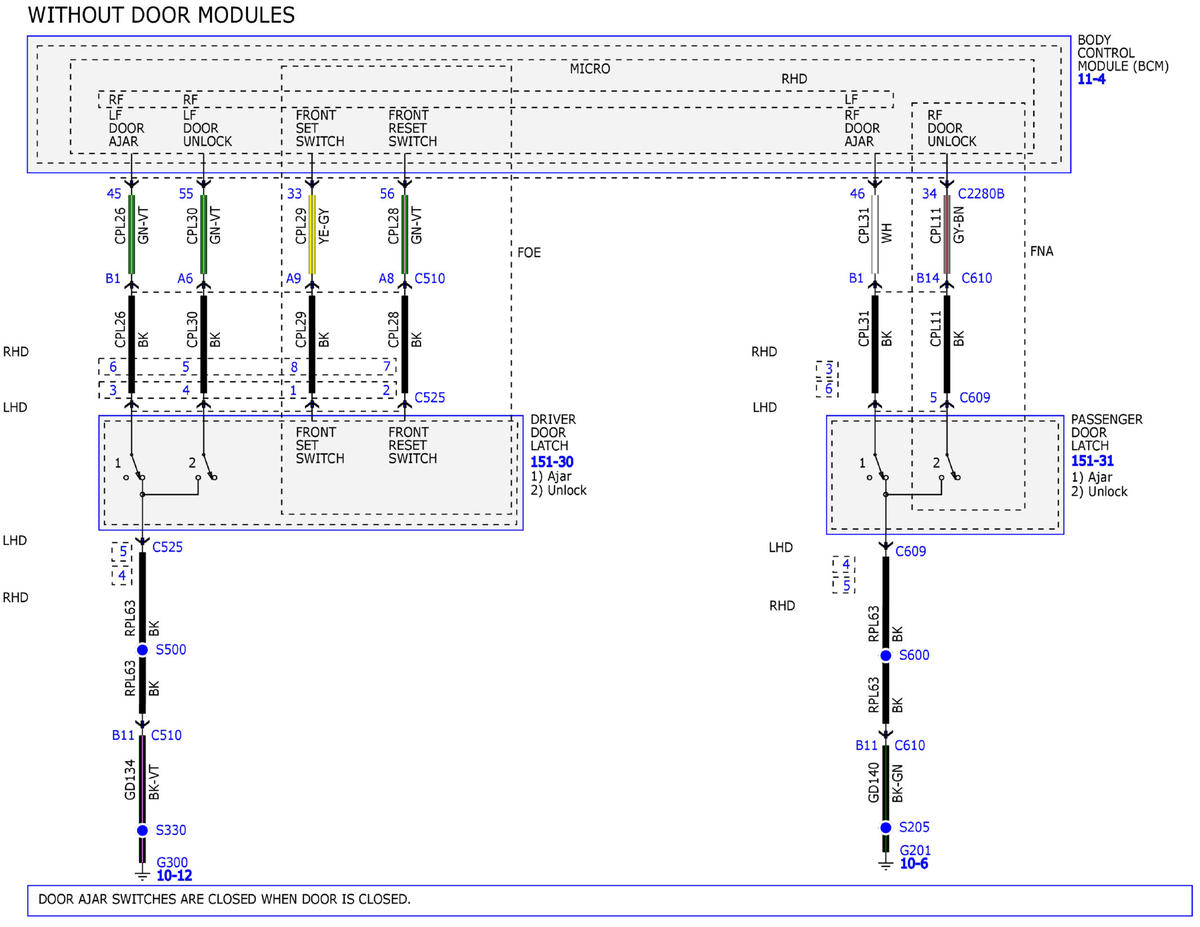

Fig 8: Power Door Locks Wiring Diagram (8 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 9: Power Door Locks Wiring Diagram (9 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 10: Power Door Locks Wiring Diagram (10 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 11: Power Door Locks Wiring Diagram (11 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 12: Power Door Locks Wiring Diagram (12 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 13: Power Door Locks Wiring Diagram (13 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 14: Power Door Locks Wiring Diagram (14 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 15: Power Door Locks Wiring Diagram (15 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 16: Power Door Locks Wiring Diagram (16 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 17: Power Door Locks Wiring Diagram (17 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 18: Power Door Locks Wiring Diagram (18 of 18)

Courtesy of FORD MOTOR COMPANY
