Interior Lamps
Interior Lamps

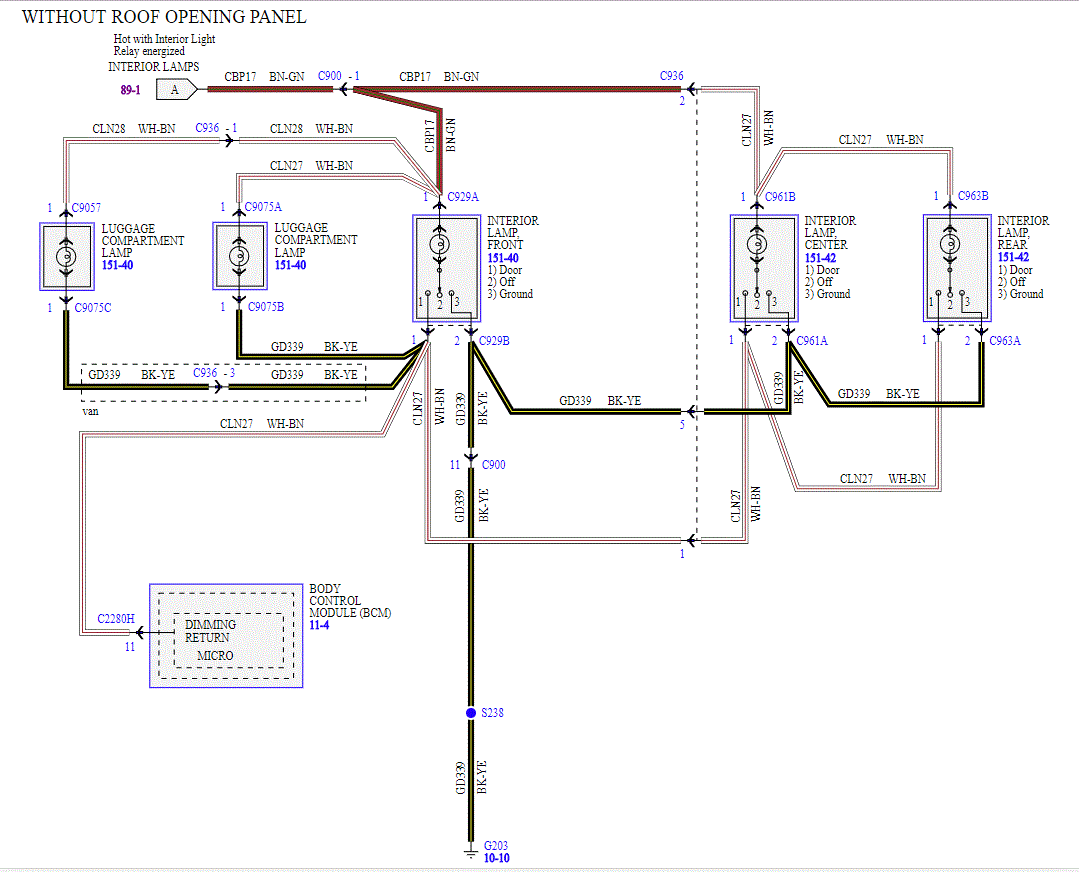

Fig 1: Interior Lamps Wiring Diagram (1 of 6)
Courtesy of FORD MOTOR COMPANY

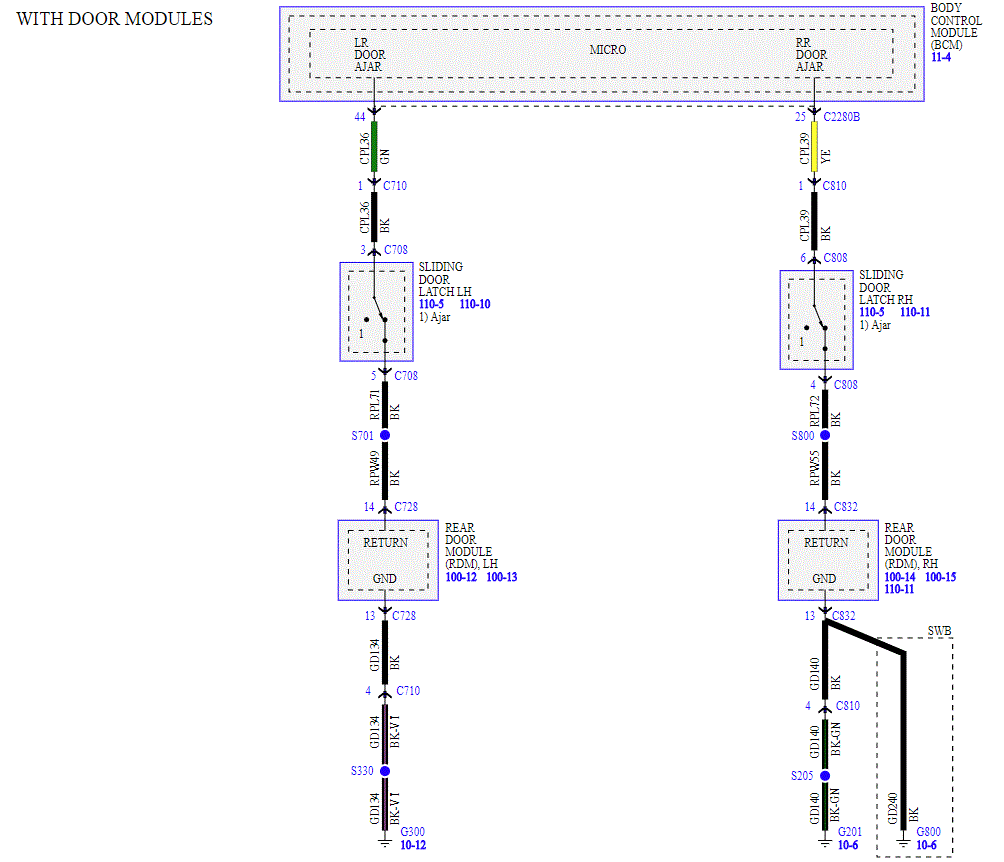

Fig 2: Interior Lamps Wiring Diagram (2 of 6)
Courtesy of FORD MOTOR COMPANY

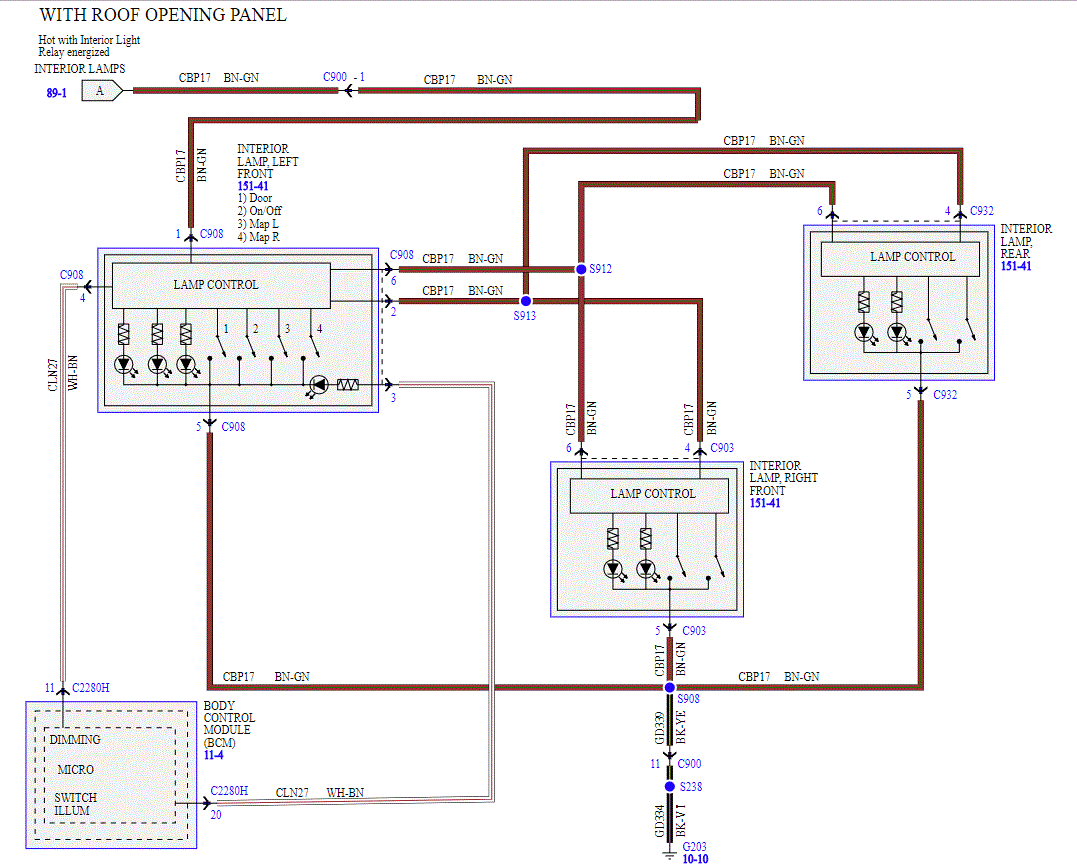

Fig 3: Interior Lamps Wiring Diagram (3 of 6)
Courtesy of FORD MOTOR COMPANY

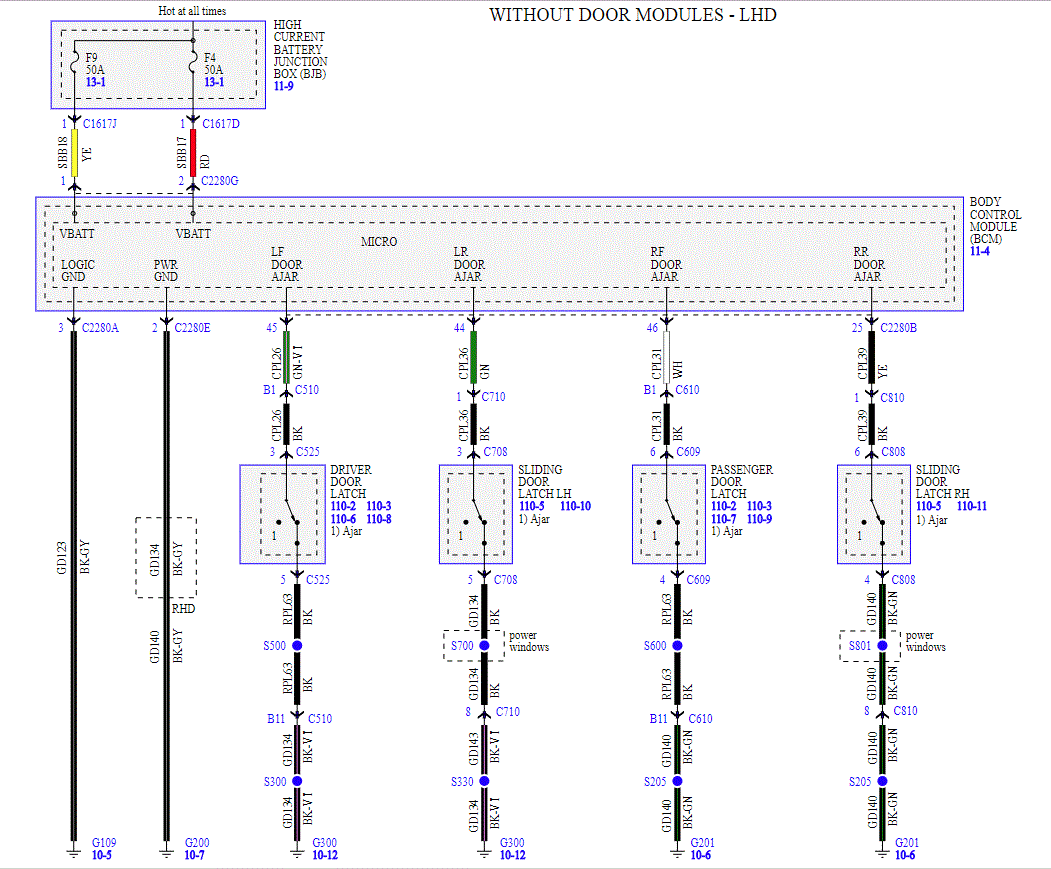

Fig 4: Interior Lamps Wiring Diagram (4 of 6)
Courtesy of FORD MOTOR COMPANY

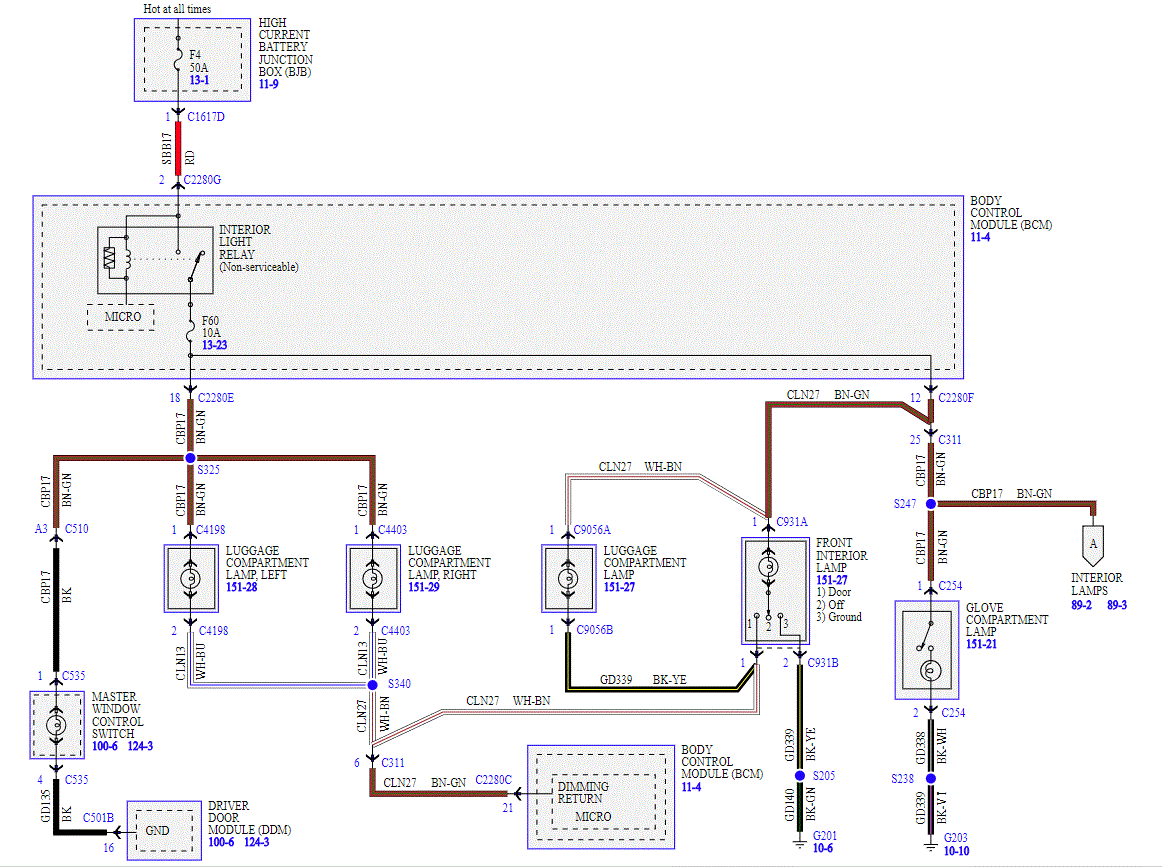

Fig 5: Interior Lamps Wiring Diagram (5 of 6)
Courtesy of FORD MOTOR COMPANY
Fig 6: Interior Lamps Wiring Diagram (6 of 6)
Courtesy of FORD MOTOR COMPANY
